Cabo Frio

Airport details

Country	Brazil
State	Rio de Janeiro
Region	SB
Airspace	Curitiba Ctr
Municipality	Cabo Frio
Elevation	14ft (4m)
Timezone	GMT -3
Coordinates	-22.92083, -42.07139
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SBCB
IATA code	CFB
FAA code	n/a

Communication

Cabo Frio RDO

132.150

Nearby Points of Interest:

Museum of Religious and Traditional Art

Runway info

Runway 10 / 28
	length	2552m (8373ft)
	bearing	79° / 259°
	width	45m (148ft)
	surface	asphalt

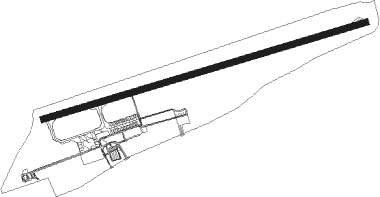

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BFR	CABO FRIO NDB	0.1	183°	200
ADA	ALDEIA (SAO PEDRO DA) VOR/DME	6.6	348°	112.10
MCA	MACAE VOR/DME	38.4	28°	115.90
PCX	PORTO (RIO DE JANEIRO TMA VOR/DME	45.2	285°	114.60
MIA	MARICA VOR/DME	45.4	267°	114.80

Departure and arrival routes

Transition altitude

5000ft

Transition level

50ft

SID end points		distance	outbound heading
RW10
	MCA2B	38mi	28°
	ERVA1B	45mi	267°
RW28
	ERVA2A	45mi	267°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10-Z	CB001 (79°)	CB001 4000ft CB004 (6mi, 79°) 2200ft
RW10-Z	CB002 (56°)	CB002 4000ft CB004 (6mi, 8°) 2200ft
RW10-Z	CB003 (101°)	CB003 4000ft CB004 (6mi, 146°) 2200ft
	RNAV	CB004 2200ft CB006 (5mi, 79°) 1660ft SBCB (6mi, 79°) 59ft CB007 (17mi, 79°) 4000ft CB007 (turn) 4000ft
RW28-Y	CB007 (259°)	CB007 4000ft OSESO (6mi, 259°) 2200ft
RW28-Y	CB008 (236°)	CB008 4000ft OSESO (6mi, 188°) 2200ft
RW28-Y	CB009 (281°)	CB009 4000ft OSESO (6mi, 326°) 2200ft
	RNAV	OSESO 2200ft CB012 (5mi, 259°) 1700ft CB026 (2mi, 259°) 889ft SBCB (3mi, 259°) 71ft CB001 (17mi, 259°) 4000ft CB001 (turn) 4000ft
