Novo Progresso - Cachimbo Air Base

Airport details

CountryBrazil
StatePará
RegionSB
AirspaceAmazonica Ctr
MunicipalityNovo Progresso
Elevation1762ft (537m)
TimezoneGMT -3
Coordinates-9.36029, -54.91319
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBCC
IATA coden/a
FAA coden/a

Communication

Cachimbo Air Base RDO125.900

Approach frequencies

ILS-cat-IRW12109.718.00mi
3° GSRW12109.718.00mi

Runway info

Runway 12 / 30
 length2603m (8540ft)
 bearing102° / 282°
 width45m (148ft)
 surfaceasphalt

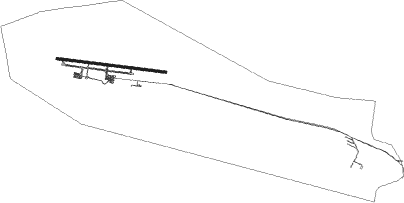

Airport layout


Taxiway locations

 A  B  C  D  E
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
CBOCACHIMBO (NOVO PROGRESSO) VOR/DME3.5299°115.10

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12-YCC001 (104°)CC001 4000ft
ARPOP (5mi, 102°) 4000ft
RW12-YCC002 (121°)CC002 4000ft
ARPOP (5mi, 172°) 4000ft
RW12-YCC003 (88°)CC003 4000ft
ARPOP (5mi, 32°) 4000ft
 RNAVARPOP 4000ft
SIBUS (5mi, 102°) 3410ft
CBO14 (3mi, 102°) 2511ft
SBCC (6mi, 110°) 1811ft
(3330mi, 80°) 2500ft
CC002 (3343mi, 261°) 4000ft
CC002 (turn) 4000ft
RW30-ZCC004 (277°)CC004 4000ft
CC006 (5mi, 282°) 4000ft
RW30-ZCC007 (250°)CC007 4000ft
CC006 (5mi, 212°) 4000ft
RW30-ZCC008 (304°)CC008 4000ft
CC006 (5mi, 352°) 4000ft
 RNAVCC006 4000ft
CC009 (5mi, 282°) 3410ft
CBO13 (3mi, 282°) 2514ft
SBCC (turn) 1814ft
(3330mi, 80°) 2500ft
CC008 (3323mi, 260°) 4000ft
CC008 (turn) 4000ft
