Airports for X-Plane

Parauapebas - Carajas

Airport details

CountryBrazil
StatePará
RegionSB
AirspaceAmazonica Ctr
MunicipalityParauapebas
Elevation2038ft (621m)
TimezoneGMT -3
Coordinates-6.11528, -50.00139
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBCJ
IATA codeCKS
FAA coden/a

Communication

Carajas RDO131.700

Approach frequencies

ILS-cat-IRW10109.318.00mi
3° GSRW10109.318.00mi

Runway info

Runway 10 / 28
 length2008m (6588ft)
 bearing83° / 263°
 width46m (151ft)
 surfaceasphalt

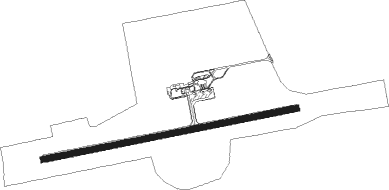

Airport layout


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
CJSCARAJAS (PARAUAPEBAS) VOR/DME0.2188°114.40
MRBMARABA VOR/DME68.449°113.70

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10EDVUK (110°)EDVUK 5500ft
UGITU (6mi, 173°) 4000ft
RW10IMBOX (55°)IMBOX 5500ft
UGITU (6mi, 353°) 4000ft
RW10ROPEP (83°)ROPEP 5500ft
UGITU (5mi, 83°) 4000ft
 RNAVUGITU 4000ft
ORIVA (5mi, 83°) 3970ft
CJ013 (4mi, 83°) 2820ft
SBCJ (3mi, 80°) 2114ft
CJ009 (15mi, 84°) 5500ft
CJ009 (turn) 5500ft
RW28CJ008 (234°)CJ008 5500ft
CJ007 (6mi, 173°) 4000ft
RW28CJ009 (264°)CJ009 5500ft
CJ007 (5mi, 263°) 4000ft
RW28CJ011 (294°)CJ011 5500ft
CJ007 (6mi, 353°) 4000ft
 RNAVCJ007 4000ft
CJ006 (5mi, 263°) 3700ft
CJ014 (3mi, 263°) 2815ft
SBCJ (3mi, 266°) 2099ft
ROPEP (17mi, 263°) 5500ft
ROPEP (turn) 5500ft
