Caldas Novas

Airport details

Country	Brazil
State	Goiás
Region	SB
Airspace	Brasilia Ctr
Municipality	Caldas Novas
Elevation	2247ft (685m)
Timezone	GMT -3
Coordinates	-17.72472, -48.61000
Magnetic var
Type	land
Available since	X-Plane v10.32
ICAO code	SBCN
IATA code	CLV
FAA code	n/a

Communication

Caldas Novas RDO

130.050

Runway info

Runway 09 / 27
	length	2116m (6942ft)
	bearing	67° / 247°
	width	45m (148ft)
	surface	asphalt
	displ threshold	150m (492ft) / 0m (0ft)

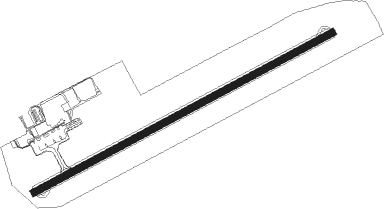

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
CAL	CALDAS NOVAS NDB	0	279°	290
CAL	NOVAS DME	0.1	266°	113.20

Departure and arrival routes

Transition altitude

6000ft

SID end points		distance	outbound heading
RW09
	OPRA2B	62mi	18°
	OMNI	10mi	72°
	UTKA1A, GUAR2B	53mi	164°
	GIDV1B	55mi	220°
	SATN2B, UTNO1A	48mi	338°
	ROMI2B	31mi	348°
RW27
	OPRA2A	62mi	18°
	OMNI	10mi	72°
	UTKA1B, GUAR2A	53mi	164°
	GIDV1A	55mi	220°
	SATN2A, UTNO1B	48mi	338°
	ROMI2A	31mi	348°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW09	CN904 (43°)	CN904 6000ft CN903 (6mi, 356°) 5000ft
RW09	CN906 (67°)	CN906 6000ft CN903 (5mi, 67°) 5000ft
RW09	CN907 (90°)	CN907 6000ft CN903 (6mi, 135°) 5000ft
	RNAV	CN903 5000ft CN902 (5mi, 67°) 4230ft CN006 (1mi, 67°) 3729ft SBCN (4mi, 66°) 2357ft (3061mi, 70°) 3900ft CN904 (3072mi, 250°) 6000ft CN904 (turn) 6000ft
RW27	CN424 (224°)	CN424 6000ft CN423 (6mi, 176°) 5000ft
RW27	CN426 (248°)	CN426 6000ft CN423 (5mi, 247°) 5000ft
RW27	CN427 (271°)	CN427 6000ft CN423 (6mi, 315°) 5000ft
	RNAV	CN423 5000ft CN422 (4mi, 247°) 4050ft CN011 (1mi, 247°) 3571ft CN013 (3mi, 247°) 2455ft (3060mi, 70°) 2700ft CN424 (3049mi, 250°) 6000ft CN424 (turn) 6000ft
