Airports for X-Plane

Campos Dos Goytacazes - Bartolomeu Lisandro

Airport details

CountryBrazil
StateRio de Janeiro
RegionSB
AirspaceCuritiba Ctr
MunicipalityCampos dos Goytacazes
Elevation57ft (17m)
TimezoneGMT -3
Coordinates-21.69940, -41.30457
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBCP
IATA codeCAW
FAA coden/a

Communication

Bartolomeu Lisandro RDO125.700
Nearby Points of Interest:
Solar do Visconde de Araruama
-
Casa da Fazenda Mato de Pipa

Runway info

Runway 07 / 25
 length1552m (5092ft)
 bearing49° / 229°
 width45m (148ft)
 surfaceasphalt

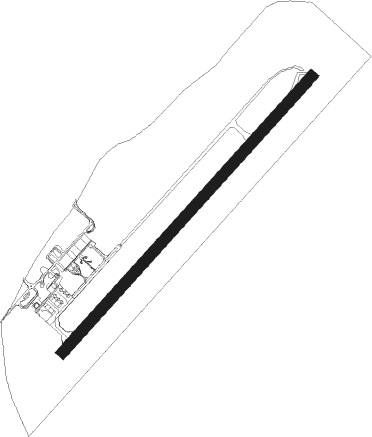

Airport layout


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
CPODME-ILS0.1251°108.70
STGTOME NDB23.7144°360
SKSAO TOME (MACAE) NDB24.4143°300
MCAMACAE VOR/DME46.5216°115.90

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW07
 TISK1A24mi144°
 OMNI25mi170°
RW25
 PUPR1A24mi144°
 OMNI25mi170°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-XCP015 (74°)CP015 4000ft
CP014 (5mi, 135°) 2600ft
RW07-XCP016 (22°)CP016 3000ft
CP014 (5mi, 315°) 2600ft
RW07-XCP018 (48°)CP018 3000ft
CP014 (5mi, 49°) 2600ft
 RNAVCP014 2600ft
CP027 (3mi, 49°) 2140ft
CP026 (2mi, 49°) 1700ft
SBCP (5mi, 48°) 107ft
CP019 (16mi, 49°) 3000ft
CP019 (turn) 3000ft
RW25-ZCP019 (229°)CP019 3000ft
CP021 (5mi, 229°) 2600ft
RW25-ZCP022 (253°)CP022 3000ft
CP021 (5mi, 315°) 2600ft
RW25-ZCP023 (203°)CP023 3500ft
CP021 (5mi, 135°) 2600ft
 RNAVCP021 2600ft
CP020 (5mi, 229°) 1700ft
SBCP (6mi, 229°) 102ft
(2747mi, 62°) 1000ft
CP016 (2755mi, 242°) 3000ft
CP016 (turn) 3000ft
