Airports for X-Plane

Manaus - Eduardo Gomes

Airport details

CountryBrazil
StateAmazonas
RegionSB
AirspaceAmazonica Ctr
MunicipalityManaus
Elevation264ft (80m)
TimezoneGMT -4
Coordinates-3.03889, -60.04611
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBEG
IATA codeMAO
FAA coden/a

Communication

Eduardo Gomes ATIS127.650
Eduardo Gomes Ground Control121.900
Eduardo Gomes Tower118.300
Eduardo Gomes MANAUS Approach119.700
Eduardo Gomes MANAUS Approach120.400
Eduardo Gomes MANAUS Approach122.800
Eduardo Gomes MANAUS Approach119.100

Approach frequencies

ILS-cat-IRW11110.318.00mi
3° GSRW11110.318.00mi
Nearby Points of Interest:
Reservatório do Mocó
-
Palácio da Justiça do Amazonas
-
Museu do Porto
-
Amazonas State Public Library
-
Municipal Clock
-
Benjamin Constant suspended bridge
-
Faculdade de Direito da Universidade Federal do Amazonas
-
Mercado Adolpho Lisboa
-
Chaminé Theatre

Runway info

Runway 11 / 29
 length2703m (8868ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 68m (223ft)

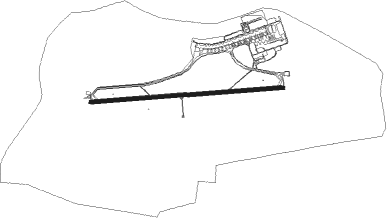

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
MNSMANAUS VOR/DME0.5262°115.80
PELPELADA (MANAUS) NDB6.9153°410

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW11
 ROPA1A138mi10°
 OGSO1A, EKUT1A37mi39°
 SIGE1A101mi92°
 MASD1A24mi96°
 UTPA1A100mi158°
 GAVA1A128mi215°
 MUGI1A119mi242°
 VUPO1A25mi264°
 PUDP1A163mi292°
 SIPO1A41mi348°
RW29
 MUBA1B, NIRM1D37mi39°
 SIGE1B101mi92°
 MASD1B24mi96°
 UTPA1B100mi158°
 GAVA1B128mi215°
 VUPO1B25mi264°
 MUGI1B135mi266°
 PUDP1B163mi292°
 SIPO1B41mi348°

STAR starting pointsdistanceinbound heading
RW11
 MOLD1A80.550°
 ALBI1A60.996°
 SEML1A15.5135°
 KULA1A12.1240°
 IRUM1A63.9355°
RW29
 MOLD1B80.550°
 SEML1B, ALBI1B12.4119°
 IRUM1B63.9355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11ARSOS (61°)ARSOS 4000ft
PAGEK (6mi, 0°) 2500ft
RW11EDNIL (90°)EDNIL 4000ft
PAGEK (5mi, 90°) 2500ft
RW11MAPMO (119°)MAPMO 4000ft
PAGEK (6mi, 180°) 2500ft
 RNAVPAGEK 2500ft
EG003 (5mi, 90°) 2000ft
SBEG (6mi, 90°) 302ft
(3609mi, 87°) 2000ft
DAGTI (3598mi, 267°) 4000ft
DAGTI (turn) 4000ft
RW29DAGTI (240°)DAGTI 4000ft
EG023 (6mi, 180°) 2000ft
RW29EG011 (270°)EG011 4000ft
EG023 (5mi, 270°) 2000ft
RW29GELAG (302°)GELAG 4000ft
EG023 (11mi, 334°) 2000ft
 RNAVEG023 2000ft
EG024 (5mi, 270°) 2000ft
SBEG (6mi, 270°) 313ft
(3609mi, 87°) 3000ft
MAPMO (3620mi, 267°) 4000ft
MAPMO (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALBI1AALBIPVHFright273 (93)°1.0min timedICAO rules
ALBI1AEG013VHFleft300 (120)°1.0min timedICAO rules
ALBI1BALBIPVHFright273 (93)°1.0min timedICAO rules
ALBI1BTECLAVHFright286 (106)°1.0min timedICAO rules
IRUM1AIRUMOVHFleft190 (10)°1.0min timedICAO rules
IRUM1ARACANVHFright172 (352)°1.0min timedICAO rules
IRUM1BIRUMOVHFleft190 (10)°1.0min timedICAO rules
IRUM1BSUSBUVHFright198 (18)°1.0min timedICAO rules
KULA1AISNUDVHFright107 (287)°1.0min timedICAO rules
KULA1AKULABVHFright100 (280)°1.0min timedICAO rules
KULA1BEG012VHFright95 (275)°1.0min timedICAO rules
KULA1BKULABVHFright100 (280)°1.0min timedICAO rules
MOLD1AEPGOMVHFleft263 (83)°1.0min timedICAO rules
MOLD1AMOLDOVHFleft243 (63)°1.0min timedICAO rules
MOLD1BEPGOMVHFleft263 (83)°1.0min timedICAO rules
MOLD1BMOLDOVHFleft243 (63)°1.0min timedICAO rules
SEML1AGEPSIVHFleft350 (170)°1.0min timedICAO rules
SEML1ASEMLAVHFleft356 (176)°1.0min timedICAO rules
SEML1BGEPSIVHFleft350 (170)°1.0min timedICAO rules
SEML1BSEMLAVHFleft356 (176)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
