Airports for X-Plane

Foz Do Iguaçu - Cataratas Intl

Airport details

CountryBrazil
StateParaná
RegionSB
AirspaceCuritiba Ctr
MunicipalityFoz do Iguaçu
Elevation787ft (240m)
TimezoneGMT -3
Coordinates-25.60028, -54.48500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBFI
IATA codeIGU
FAA coden/a

Communication

Cataratas Intl Tower118.800

Approach frequencies

ILS-cat-IRW15109.118.00mi
3° GSRW15109.118.00mi

Runway info

Runway 14 / 32
 length2197m (7208ft)
 bearing128° / 308°
 width45m (148ft)
 surfaceasphalt
 blast zone69m (226ft) / 63m (207ft)

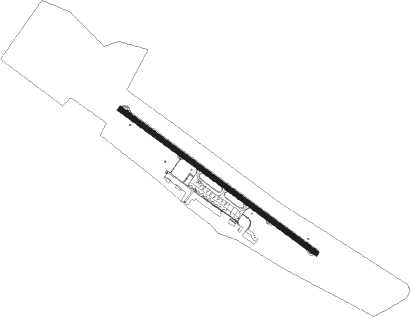

Airport layout


Taxiway locations

 A  B  C  RWY14  RWY32
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
FOZFOZ (FOZ DO IGUACU) VOR/DME1.4313°112.10
IGUCATARATAS DEL IGUAZU VOR/DME8180°114.10
ZMAYOR D CARLOS EDUARDO KRAUSE NDB9.1166°310
ITUITAIPU NDB13.6324°225
ALGCIUDAD DEL ESTE NDB20.4310°293
VESMINGA GUAZU VOR/DME21.4291°116.30
CDECIUDAD DEL ESTE NDB21.8288°200
CAVCASCAVEL NDB64.259°220

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW15
 UPOR1A40mi58°
 DIDO1A73mi77°
 KAMI1A39mi89°
 GEBUN170mi144°
 ALDOS139mi198°
 UDENO140mi221°
 ALGEL140mi249°
 COSTA141mi277°
RW33
 UPOR1A40mi58°
 CRAN1A38mi76°
 KAMI1A39mi89°
 GEBUN270mi144°
 ALDOS239mi198°
 UDENO240mi221°
 ALGEL240mi249°
 COSTA241mi277°

STAR starting pointsdistanceinbound heading
RW15
 ANBA1A14.1152°
RW33
 DORG1A26.0255°
 EDRE1A16.2298°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15ANBAV (152°)ANBAV 4000ft
OPLON (6mi, 203°) 3500ft
 RNAVOPLON 3500ft
ILMED (5mi, 128°) 2490ft
FI010 (3mi, 128°) 1590ft
SBFI (3mi, 130°) 782ft
FI386 (10mi, 127°) 3000ft
FI386 (turn) 3000ft
RW33DORGU (277°)DORGU 4000ft
FI376 (6mi, 233°) 3500ft
RW33EDREP (298°)EDREP 4000ft
FI376 (6mi, 293°) 3500ft
 RNAVFI376 3500ft
FI369 (5mi, 293°) 2430ft
SBFI (5mi, 307°) 836ft
OPLON (11mi, 309°) 4000ft
OPLON (turn) 4000ft
