Airports for X-Plane

Gavião Peixoto - Embraer Unidade Gaviao Peixoto

Airport details

CountryBrazil
StateSão Paulo
RegionSB
AirspaceBrasilia Ctr
MunicipalityGavião Peixoto
Elevation1998ft (609m)
TimezoneGMT -3
Coordinates-21.75049, -48.40300
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBGP
IATA coden/a
FAA coden/a

Communication

Embraer Unidade Gaviao Peixoto AFIS118.950
Embraer Unidade Gaviao Peixoto Ground ControlC121.800
Embraer Unidade Gaviao Peixoto RDO118.150

Approach frequencies

ILS-cat-IRW20109.118.00mi
5.5° GSRW20109.118.00mi
Nearby Points of Interest:
Casa Térrea da Rua Padre Duarte
-
Estação Ferroviária de Araraquara
-
Palacete Conde do Pinhal

Runway info

Runway 02 / 20
 length3014m (9888ft)
 bearing359° / 179°
 width45m (148ft)
 surfaceasphalt

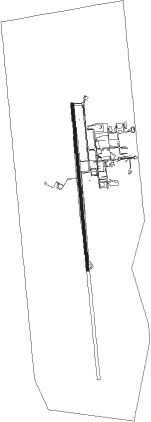

Airport layout


Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
AAQARARAQUARA NDB15.1103°205
AREAREALVA NDB44.8238°340
RPRRIBEIRAO (RIBEIRAO PRETO) NDB50.646°330
RPRRIBEIRAO (RIBEIRAO PRETO) VOR/DME50.846°115.60
BRUBAURU NDB51.7231°380
RCLRIO CLARO NDB62129°280

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW02
 RPR1A51mi46°
 ENTE1A80mi313°
 ASTO1A68mi339°
RW20
 NENO1A80mi313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-VGP361 (359°)GP361 4500ft
GP363 (5mi, 359°) 3700ft
RW02-VGP362 (339°)GP362 4500ft
GP363 (5mi, 288°) 3700ft
RW02-VGP364 (20°)GP364 4500ft
GP363 (5mi, 70°) 3700ft
 RNAVGP363 3700ft
GP366 (5mi, 359°) 3620ft
SBGP (7mi, 0°) 2026ft
GP367 (15mi, 358°) 4000ft
GP367 (turn) 4000ft
RW20-UGP367 (178°)GP367 4000ft
GP369 (5mi, 179°) 3700ft
RW20-UGP368 (155°)GP368 4000ft
GP369 (5mi, 108°) 3700ft
RW20-UGP369 (178°)GP369 3700ft
 RNAVGP369 3700ft
GP372 (5mi, 179°) 3640ft
SBGP (5mi, 177°) 2047ft
GP361 (17mi, 179°) 4000ft
GP361 (turn) 4000ft
RW20-XGP014 (337°)GP014
GP016 (5mi, 1°)
GP018 (11mi, 314°)
GP021 (7mi, 299°)
GP023 (6mi, 6°)
GP026 (4mi, 66°) 5000ft
 RNAVGP026 5000ft
GP028 (7mi, 132°) 4000ft
GP007 (2mi, 179°) 3640ft
SBGP (5mi, 177°) 2047ft
GP029 (7mi, 180°) 3000ft
GP029 (turn) 3000ft
RW20-YGP001 (335°)GP001
GP002 (5mi, 0°)
GP004 (6mi, 334°)
GP012 (11mi, 309°) 5000ft
 RNAVGP012 5000ft
GP007 (5mi, 66°) 3640ft
SBGP (5mi, 177°) 2047ft
GP008 (7mi, 180°)
GP013 (6mi, 228°)
GP011 (4mi, 273°) 4500ft
GP011 (turn) 4500ft
RW20-ZGP031 (165°)GP031
GP032 (8mi, 214°) 9100ft
 RNAVGP032
GP034 (6mi, 181°)
GP036 (4mi, 147°)
GP038 (5mi, 118°) 5000ft
GP007 (6mi, 132°) 3640ft
SBGP (5mi, 177°) 2047ft
GP042 (3mi, 182°)
GP043 (9mi, 269°)
GP044 (5mi, 359°) 4700ft
GP044 (turn) 4700ft
