Airports for X-Plane

Imperatriz - Imperatriz Airport

Airport details

CountryBrazil
StateMaranhão
RegionSB
AirspaceAmazonica Ctr
MunicipalityImperatriz
Elevation431ft (131m)
TimezoneGMT -3
Coordinates-5.53056, -47.45833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBIZ
IATA codeIMP
FAA coden/a

Communication

Imperatriz Airport RDO125.850

Runway info

Runway 07 / 25
 length1808m (5932ft)
 bearing54° / 234°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

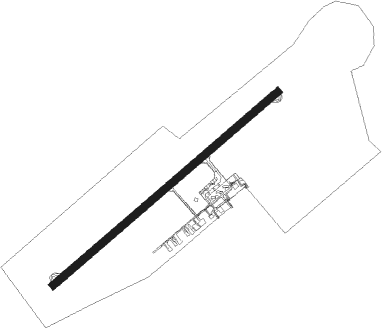

Airport layout


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
YTZIMPERATRIZ VOR/DME0.652°112.70

Departure and arrival routes

Transition altitude3000ft
Transition level30ft
SID end pointsdistanceoutbound heading
RW07
 VURL1A45mi48°
 GEDI1A60mi114°
 ASGA2A103mi183°
 OMNI149mi257°
 KOVT1A58mi270°
 ARVI1A68mi347°
RW25
 VURL1B45mi48°
 GEDI1B60mi114°
 PUNV2A103mi183°
 OMNI149mi257°
 KOVT1B58mi270°
 ARVI1B68mi347°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07IZ003 (54°)IZ003 3000ft
IZ004 (5mi, 54°) 2600ft
RW07IZ006 (79°)IZ006 3000ft
IZ004 (5mi, 144°) 2600ft
RW07IZ007 (29°)IZ007 3000ft
IZ004 (5mi, 324°) 2600ft
 RNAVIZ004 2600ft
IZ002 (5mi, 54°) 2060ft
SBIZ (6mi, 54°) 469ft
(2865mi, 83°) 1800ft
IZ008 (2850mi, 263°) 3000ft
IZ008 (turn) 3000ft
RW25IZ014 (234°)IZ014 3000ft
IZ012 (5mi, 234°) 2500ft
RW25IZ016 (260°)IZ016 3000ft
IZ012 (5mi, 324°) 2500ft
RW25IZ018 (208°)IZ018 3000ft
IZ012 (5mi, 144°) 2500ft
 RNAVIZ012 2500ft
IZ011 (5mi, 234°) 2070ft
SBIZ (5mi, 234°) 480ft
IZ003 (16mi, 234°) 3000ft
IZ003 (turn) 3000ft
