Airports for X-Plane

Jaguaruna - Jaguaruna Regional

Airport details

CountryBrazil
StateSanta Catarina
RegionSB
AirspaceCuritiba Ctr
MunicipalityJaguaruna
Elevation113ft (34m)
TimezoneGMT -3
Coordinates-28.67528, -49.05944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBJA
IATA codeJJG
FAA coden/a

Communication

Jaguaruna Regional RDO130.700
Nearby Points of Interest:
Museu Casa de Anita

Runway info

Runway 05 / 23
 length2504m (8215ft)
 bearing37° / 217°
 width31m (102ft)
 surfaceasphalt

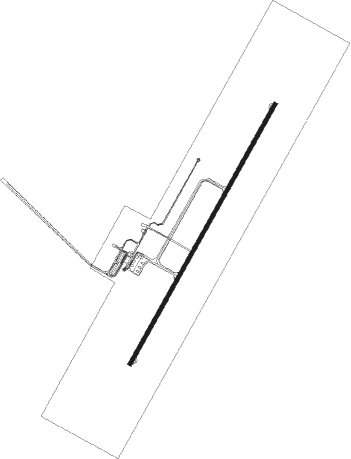

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
JGNJAGUARUNA NDB0.4244°280
TORTORRES NDB59.2225°230

Departure and arrival routes

Transition altitude7000ft
Transition level70ft
SID end pointsdistanceoutbound heading
RW05
 FLN1A66mi27°
 OPRU2A84mi306°
RW23
 FLN1B66mi27°
 NUNV2A84mi306°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05JA001 (37°)JA001 3000ft
NUNVU (5mi, 37°) 2000ft
RW05JA006 (10°)JA006 3000ft
NUNVU (5mi, 300°) 2000ft
 RNAVNUNVU 2000ft
JA003 (5mi, 37°) 1760ft
SBJA (6mi, 37°) 160ft
(3298mi, 60°) 1500ft
JA006 (3304mi, 240°) 3000ft
JA006 (turn) 3000ft
RW23JA007 (217°)JA007 3600ft
OPRUK (5mi, 217°) 2500ft
RW23JA011 (241°)JA011 3000ft
OPRUK (5mi, 296°) 2500ft
 RNAVOPRUK 2500ft
JA009 (5mi, 217°) 1760ft
JA023 (3mi, 217°) 955ft
SBJA (3mi, 217°) 160ft
(3298mi, 60°) 1500ft
JA011 (3286mi, 240°) 3000ft
JA011 (turn) 3000ft
