Airports for X-Plane

Manaus - Ponta Pelada

Airport details

CountryBrazil
StateAmazonas
RegionSB
AirspaceAmazonica Ctr
MunicipalityManaus
Elevation255ft (78m)
TimezoneGMT -4
Coordinates-3.14634, -59.97963
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBMN
IATA codePLL
FAA coden/a

Communication

Ponta Pelada Tower118.600
Ponta Pelada MANAUS Approach119.250
Ponta Pelada MANAUS Approach129.800
Ponta Pelada MANAUS Approach119.700
Ponta Pelada MANAUS Approach120.400
Ponta Pelada MANAUS Approach129.550

Approach frequencies

ILS-cat-IRW09109.318.00mi
3° GSRW09109.318.00mi
Nearby Points of Interest:
Benjamin Constant suspended bridge
-
Chaminé Theatre
-
Faculdade de Direito da Universidade Federal do Amazonas
-
Mercado Adolpho Lisboa
-
Amazonas State Public Library
-
Municipal Clock
-
Palácio da Justiça do Amazonas
-
Museu do Porto
-
Reservatório do Mocó

Runway info

Runway 09 / 27
 length2039m (6690ft)
 bearing76° / 256°
 width45m (148ft)
 surfaceasphalt
 blast zone83m (272ft) / 190m (623ft)

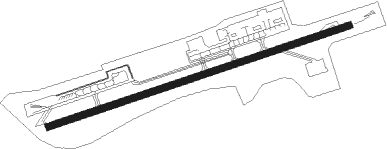

Airport layout


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PELPELADA (MANAUS) NDB0.8284°410
MNSMANAUS VOR/DME7.8325°115.80

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW09
 ROPA1A144mi8°
 EKUT1A, DALO1A40mi29°
 MASD1A21mi79°
 SIGE1A97mi88°
 UTPA1A92mi159°
 GAVA1A125mi218°
 MUGI1A120mi246°
 VUPO1A29mi277°
 PUDP1A170mi294°
 SIPO1A48mi345°
RW27
 MUBA1B, EDSA1B40mi29°
 MASD1B21mi79°
 SUSB1B92mi159°
 GAVA1B125mi218°
 MUGI1B120mi246°
 VUPO1B29mi277°
 PUDP1B170mi294°
 SIPO1B48mi345°

STAR starting pointsdistanceinbound heading
RW09
 MOLD1A79.956°
 ALBI1A65.8101°
 KULA1A19.4130°
 SEML1A53.9148°
 IRUM1A57.3359°
RW27
 MOLD1B79.956°
 ALBI1B65.8101°
 SEML1B53.9148°
 IRUM1B57.3359°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09ARSOS (92°)ARSOS 4000ft
MN009 (5mi, 125°) 2430ft
RW09VURIV (52°)VURIV 4000ft
MN009 (6mi, 6°) 2430ft
 RNAVMN009 2430ft
MN011 (5mi, 76°) 1940ft
SBMN (6mi, 77°) 298ft
(3605mi, 87°) 2000ft
GELAG (3594mi, 267°) 4000ft
GELAG (turn) 4000ft
RW27GELAG (286°)GELAG 4000ft
MN016 (6mi, 346°) 1930ft
RW27MN013 (256°)MN013 4000ft
MN016 (5mi, 256°) 1930ft
 RNAVMN016 1930ft
ILMAT (5mi, 256°) 1930ft
SBMN (5mi, 255°) 301ft
(3605mi, 87°) 2000ft
MN013 (3590mi, 267°) 4000ft
MN013 (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALBI1AALBIPVHFright273 (93)°1.0min timedICAO rules
ALBI1AMN022VHFleft308 (128)°1.0min timedICAO rules
ALBI1BALBIPVHFright273 (93)°1.0min timedICAO rules
ALBI1BTECLAVHFright286 (106)°1.0min timedICAO rules
IRUM1AIRUMOVHFleft190 (10)°1.0min timedICAO rules
IRUM1ARACANVHFright172 (352)°1.0min timedICAO rules
IRUM1BIRUMOVHFleft190 (10)°1.0min timedICAO rules
IRUM1BSUSBUVHFright198 (18)°1.0min timedICAO rules
KULA1AISNUDVHFright107 (287)°1.0min timedICAO rules
KULA1AKULABVHFright100 (280)°1.0min timedICAO rules
KULA1BKULABVHFright100 (280)°1.0min timedICAO rules
KULA1BMN021VHFright88 (268)°1.0min timedICAO rules
MOLD1AEPGOMVHFleft263 (83)°1.0min timedICAO rules
MOLD1AMOLDOVHFleft243 (63)°1.0min timedICAO rules
MOLD1BEPGOMVHFleft263 (83)°1.0min timedICAO rules
MOLD1BMOLDOVHFleft243 (63)°1.0min timedICAO rules
SEML1AGEPSIVHFleft350 (170)°1.0min timedICAO rules
SEML1ASEMLAVHFleft356 (176)°1.0min timedICAO rules
SEML1BGEPSIVHFleft350 (170)°1.0min timedICAO rules
SEML1BSEMLAVHFleft356 (176)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
