Airports for X-Plane

Passo Fundo - Lauro Kurtz

Airport details

CountryBrazil
StateRio Grande do Sul
RegionSB
AirspaceCuritiba Ctr
MunicipalityPasso Fundo
Elevation2375ft (724m)
TimezoneGMT -3
Coordinates-28.24333, -52.32889
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBPF
IATA codePFB
FAA coden/a

Communication

Lauro Kurtz RDO131.250

Runway info

Runway 08 / 26
 length1702m (5584ft)
 bearing71° / 251°
 width31m (102ft)
 surfaceasphalt
 blast zone54m (177ft) / 61m (200ft)

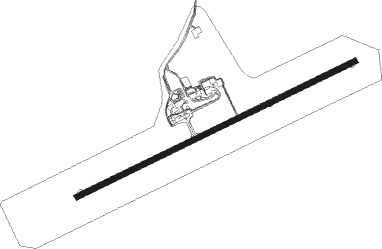

Airport layout


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
PFDPASSO FUNDO NDB0.1339°370

Departure and arrival routes

Transition altitude6000ft
Transition level60ft
SID end pointsdistanceoutbound heading
RW08
 ENVI112mi77°
 CAGE, DALF122mi147°
 ACME, EVTI1A, BACO114mi223°
 ISUNA, KERB69mi343°
RW26
 ENVI112mi77°
 DALF, CAGE122mi147°
 BACO, ACME, SILE1A114mi223°
 ISUNA, KERB69mi343°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08PF009 (47°)PF009 6000ft
PF008 (6mi, 358°) 4000ft
RW08PF011 (92°)PF011 6000ft
PF008 (6mi, 135°) 4000ft
RW08PF012 (71°)PF012 6000ft
PF008 (5mi, 71°) 4000ft
 RNAVPF008 4000ft
PF007 (5mi, 71°) 3990ft
SBPF (5mi, 70°) 2397ft
PF002 (10mi, 71°) 4000ft
PF002 (turn) 4000ft
RW26PF003 (272°)PF003 6000ft
PF002 (6mi, 315°) 4100ft
RW26PF004 (228°)PF004 6000ft
PF002 (6mi, 178°) 4100ft
RW26PF006 (251°)PF006 6000ft
PF002 (5mi, 251°) 4100ft
 RNAVPF002 4100ft
PF001 (5mi, 251°) 4030ft
SBPF (5mi, 251°) 2430ft
PF008 (10mi, 250°) 4000ft
PF008 (turn) 4000ft
