Airports for X-Plane

Santarém - Santarem Airport

Airport details

CountryBrazil
StatePará
RegionSB
AirspaceAmazonica Ctr
MunicipalitySantarém
Elevation198ft (60m)
TimezoneGMT -3
Coordinates-2.42472, -54.78583
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBSN
IATA codeSTM
FAA coden/a

Communication

Santarem Airport Tower118.100
Santarem Airport Approach119.300
Santarem Airport Approach131.400

Approach frequencies

ILS-cat-IRW10110.918.00mi
3.1° GSRW10110.918.00mi

Runway info

Runway 10 / 28
 length2403m (7884ft)
 bearing81° / 261°
 width45m (148ft)
 surfaceasphalt
 blast zone72m (236ft) / 70m (230ft)

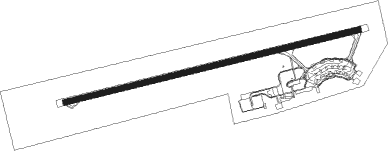

Airport layout


Taxiway locations

 A  B  C  D
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
STMSANTAREM VOR/DME1.9267°112.30

Departure and arrival routes

Transition altitude3000ft
Transition level35ft
SID end pointsdistanceoutbound heading
RW10
 EDPI1A38mi109°
 OMNI108mi302°
RW28
 MUMD1A38mi109°
 OMNI108mi302°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10SN361 (81°)SN361 4000ft
SN364 (6mi, 81°) 2000ft
RW10SN362 (58°)SN362 4000ft
SN364 (6mi, 11°) 2000ft
RW10SN363 (105°)SN363 4000ft
SN364 (6mi, 151°) 2000ft
 RNAVSN364 2000ft
SN366 (5mi, 81°) 1810ft
SN008 (3mi, 81°) 850ft
SN011 (1mi, 81°) 375ft
(3294mi, 87°) 800ft
SN363 (3306mi, 268°) 4000ft
SN363 (turn) 4000ft
RW28SN367 (260°)SN367 4000ft
SN371 (6mi, 261°) 2000ft
RW28SN368 (235°)SN368 4000ft
SN371 (6mi, 191°) 2000ft
RW28SN369 (285°)SN369 4000ft
SN371 (6mi, 331°) 2000ft
 RNAVSN371 2000ft
SN372 (5mi, 261°) 1830ft
SN012 (3mi, 261°) 870ft
SN021 (1mi, 261°) 390ft
(3292mi, 87°) 800ft
SN368 (3281mi, 268°) 4000ft
SN368 (turn) 4000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
