Airports for X-Plane

Salvador - Dep L. E. Magalhaes Intl

Airport details

CountryBrazil
StateBahia
RegionSB
AirspaceRecife Ctr
MunicipalitySalvador
Elevation62ft (19m)
TimezoneGMT -3
Coordinates-12.90861, -38.32250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBSV
IATA codeSSA
FAA coden/a

Communication

Dep L. E. Magalhaes Intl SALVADOR ATIS127.750
Dep L. E. Magalhaes Intl CLR121.100
Dep L. E. Magalhaes Intl Ground Control121.900
Dep L. E. Magalhaes Intl SALVADOR Tower118.600
Dep L. E. Magalhaes Intl SALVADOR Tower118.950
Dep L. E. Magalhaes Intl SALVADOR Tower118.300
Dep L. E. Magalhaes Intl SALVADOR CON119.350

Approach frequencies

ILS-cat-IRW28110.918.00mi
ILS-cat-IRW10111.918.00mi
3° GSRW28110.918.00mi
3° GSRW10111.918.00mi
Nearby Points of Interest:
Ilê Odó Ogé
-
Terreiro Bate Folha
-
Ilê Axé Opó Afonjá
-
Antiga Fábrica São Brás
-
Solar Amado Bahia
-
Palácio de Verão dos Arcebispos
-
Largo da Madragoa, nº 08
-
Quinta do Tanque
-
Fonte do Queimado
-
Casa Pia and College of the Orphans of Saint Joachim
-
Casa Nobre de Jequitaia
-
Fábrica Fratelli
-
Fonte da Munganga
-
Conjunto Arquitetônico da Soledade
-
Solar Bandeira
-
Casa Marback
-
Casa do Conde da Palma
-
Fonte da Água Brusca
-
Fonte do Santo Antônio
-
Dom Pedro II Home
-
Capela Nossa Senhora da Piedade e Recolhimento do Bom Jesus dos Perdões
-
Hospital Português
-
Casa no 33, Ladeira do Arco
-
Hospital Santa Izabel
-
Solar do Barão do Rio Real

Runway info

Runway 17 / 35
 length1531m (5023ft)
 bearing143° / 323°
 width45m (148ft)
 surfaceasphalt
 blast zone12m (39ft) / 7m (23ft)
Runway 10 / 28
 length3006m (9862ft)
 bearing79° / 259°
 width45m (148ft)
 surfaceasphalt
 displ threshold121m (397ft) / 123m (404ft)
 blast zone60m (197ft) / 61m (200ft)

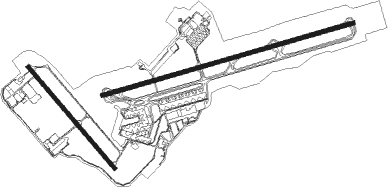

Airport layout


Taxiway locations

 A  APRON2  APRON3  APRON6  B  D  E  F
 G  J  K  L  M  N  O  P
 Q  R  SGI
Parking locations

 Gate  Pad

Nearby beacons

codeidentifierdistbearingfrequency
SVDSALVADOR VOR/DME0.127°116.50

Departure and arrival routes

Transition altitude4000ft
Transition level40ft
SID end pointsdistanceoutbound heading
RW10
 ARVA1A40mi1°
 TIRK2A95mi7°
 ARUR1A69mi33°
 KOSL1A75mi50°
 GEDE2A60mi191°
 BIVO1B, BIVO1A60mi200°
 ELEF1A48mi253°
 DIKI2A73mi253°
 KIBI1A, VATA1A40mi266°
RW28
 ARVA1B40mi1°
 KEXO2A95mi7°
 ARUR1B69mi33°
 ASOX1A60mi191°
 BIVO1C, BIVO1D60mi200°
 KIBI1C40mi266°
 KIBI1B144mi309°

STAR starting pointsdistanceinbound heading
RW10
 ASUG1A40.045°
 TELI1A57.655°
 TOKI1A58.3106°
 MAST1A64.5111°
 UDES1A18.6124°
 ZIPA1A240.5204°
 LONE1A55.3230°
RW28
 ASUG1B40.045°
 TELI1B57.655°
 TOKI1B58.3106°
 UDES1B12.3107°
 ZIPA1B240.5204°
 LONE1B55.3230°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10GEVMO (55°)GEVMO 4000ft
LOGAV (6mi, 9°) 2500ft
RW10KIBIX (79°)KIBIX 4000ft
LOGAV (6mi, 79°) 2500ft
RW10UDESI (107°)UDESI 4000ft
LOGAV (6mi, 168°) 2500ft
 RNAVLOGAV 2500ft
DIBOD (5mi, 79°) 1700ft
SVD13 (2mi, 79°) 1057ft
SBSV (4mi, 79°) 81ft
(2409mi, 71°) 1000ft
GEVMO (2423mi, 251°) 4000ft
GEVMO (turn) 4000ft
RW17SV044 (118°)SV044 4000ft
SV052 (7mi, 86°) 2800ft
RW17SV051 (163°)SV051 4000ft
SV052 (7mi, 202°) 2800ft
RW17SV053 (140°)SV053 4000ft
SV052 (5mi, 143°) 2800ft
 RNAVSV052 2800ft
SV054 (5mi, 143°) 1670ft
SBSV (6mi, 134°) 78ft
(2409mi, 71°) 2500ft
SV051 (2410mi, 252°) 4000ft
SV051 (turn) 4000ft
RW28TIRLI (287°)TIRLI 2500ft
SV027 (6mi, 349°) 1800ft
RW28TOGPA (230°)TOGPA 2500ft
SV027 (6mi, 169°) 1800ft
 RNAVSV027 1800ft
RENIS (5mi, 259°) 1730ft
SBSV (6mi, 259°) 113ft
(2409mi, 71°) 1500ft
TIRLI (2399mi, 251°) 2500ft
TIRLI (turn) 2500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASUG1AASUGAVHFleft242 (62)°1.0min timedICAO rules
LONE1AUKMELVHFleft73 (253)°1.0min timedICAO rules
LONE1BUKMELVHFleft73 (253)°1.0min timedICAO rules
MAST1AKIBIXVHFright324 (144)°1.0min timedICAO rules
TELI1AALGIMVHFright258 (78)°1.0min timedICAO rules
TELI1BALGIMVHFright258 (78)°1.0min timedICAO rules
TOKI1AALBULVHFleft310 (130)°1.0min timedICAO rules
TOKI1BALBULVHFleft310 (130)°1.0min timedICAO rules
UDES1AUDESIVHFright356 (176)°1.0min timedICAO rules
UDES1BUDESIVHFright356 (176)°1.0min timedICAO rules
ZIPA1ATOGPAVHFleft63 (243)°1.0min timedICAO rules
ZIPA1BTOGPAVHFleft63 (243)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
