Airports for X-Plane

Juiz De Fora - Regional Da Zona Da Mata

Airport details

CountryBrazil
StateMinas Gerais
RegionSB
AirspaceCuritiba Ctr
MunicipalityGoianá
Elevation1348ft (411m)
TimezoneGMT -3
Coordinates-21.51306, -43.17305
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBZM
IATA codeIZA
FAA coden/a

Communication

Regional da Zona da Mata RDO130.100
Nearby Points of Interest:
Paço Municipal de Juiz de Fora
-
Colégio Cataguases

Runway info

Runway 08 / 26
 length2543m (8343ft)
 bearing55° / 235°
 width47m (154ft)
 surfaceasphalt

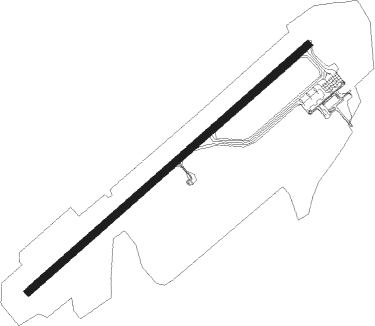

Airport layout


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
FRAFORA (JUIZ DE FORA) NDB19.2220°
BBCDME-ILS36.2293°111.70
PAIPIRAI VOR/DME67.6215°115

Departure and arrival routes

Transition altitude6000ft
Transition level60ft
SID end pointsdistanceoutbound heading
RW08
 OMNI24mi181°
 SURN1A54mi200°
 VURO1A36mi293°
RW26
 OMNI24mi181°
 SURN1B54mi200°
 VURO1B36mi293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ZM037 (89°)ZM037 6000ft
ZM036 (6mi, 141°) 4600ft
RW08ZM038 (68°)ZM038 6000ft
ZM036 (5mi, 74°) 4600ft
 RNAVZM036 4600ft
RZM01 (2mi, 74°) 4066ft
RZM02 (2mi, 74°) 3532ft
ZM032 (2mi, 74°) 2980ft
RZM03 (2mi, 55°) 2337ft
SBZM (4mi, 55°) 1379ft
(2839mi, 64°) 3000ft
ZM009 (2828mi, 244°) 6000ft
ZM009 (turn) 6000ft
RW26ZM003 (207°)ZM003 6000ft
ZM002 (6mi, 163°) 4600ft
 RNAVZM002 4600ft
ZM031 (6mi, 219°) 2970ft
SBZM (6mi, 235°) 1377ft
(2839mi, 64°) 3000ft
ZM003 (2828mi, 244°) 6000ft
ZM003 (turn) 6000ft
