Los Andes - San Rafael

Airport details

CountryChile
StateValparaiso Region
RegionSC
AirspaceSantiago Ctr
MunicipalityLos Andes
Elevation2457ft (749m)
TimezoneGMT -3
Coordinates-32.81417, -70.64667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSCAN
IATA codeLOB
FAA coden/a

Communication

No airport communication available for SCAN
Nearby Points of Interest:
Convento de las Carmelitas Descalzas
-
Edificio de la GobernaciĆ³n de Los Andes
-
Iglesia de San Antonio de Padua (El Almendral)
-
Capilla de Lo VicuƱa
-
Capilla de La Dormida
-
Casa Colonial

Runway info

Runway 05 / 23
 length748m (2454ft)
 bearing59° / 239°
 width27m (89ft)
 surfaceasphalt

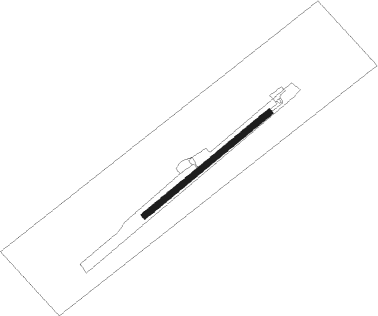

Airport layout


Taxiway locations

Nearby beacons

codeidentifierdistbearingfrequency
TBNTABON VOR/DME11.4241°113.90
PDHPUDAHUEL (SANTIAGO) VOR/DME36.8194°117.20
AMBSANTIAGO VOR/DME37193°116.10
VDMVINA DEL MAR VOR/DME42.4261°114.90
VTNVENTANAS VOR/DME43.1275°113.30
BQEEL BOSQUE VOR/DME45183°117.50
SALSALINAS NDB46259°390
SNOSANTO DOMINGO NDB69.8229°355
DGODOMINGO VOR/DME70.1229°112.30
