Airports for X-Plane

Calama - El Loa

Airport details

CountryChile
StateAntofagasta Region
RegionSC
AirspaceAntofagasta Ctr
MunicipalityCalama
Elevation7630ft (2326m)
TimezoneGMT -4
Coordinates-22.50000, -68.90305
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSCCF
IATA codeCJC
FAA coden/a

Communication

El Loa Ground121.800
El Loa Calama Tower118.700
El Loa Antofagasta Radar120.900
Nearby Points of Interest:
Pucará de Lasana

Runway info

Runway 10 / 28
 length3038m (9967ft)
 bearing94° / 274°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

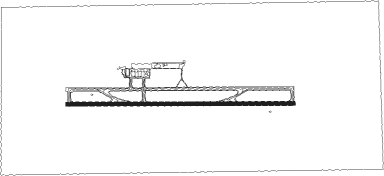

Airport layout


Taxiway locations

 01  02  03  04  05  06  A  B
 C  D  E
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
LOACALAMA VOR/DME1.594°113.50

Departure and arrival routes

Transition altitude11500ft
SID end pointsdistanceoutbound heading
RW10
 VUDA3B, VUDA3A39mi171°
 MARG2J51mi176°
 TATI2N, TATI2M47mi248°
 VURE2K, VURE2L49mi327°
RW28
 CEPA7A, CEPA3C50mi188°
 TATI2L, TATI2P47mi248°
 VURE2J, VURE2M49mi327°

STAR starting pointsdistanceinbound heading
RW10
 CEPA2A, CEPA3B50.08°
 VUBLA245.857°
 TATI2C, TATI3B46.568°
 VURE2F, VURE2C49.3147°
RW28
 TATI3A46.568°
 VURE2E, VURE2D49.3147°
 VUDAP339.0351°
 MARG2A51.2356°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YDETUK (67°)DETUK 11500ft
SILUX (8mi, 5°) 11500ft
RW10-YSILUX (94°)SILUX 11500ft
 RNAVSILUX 11500ft
GATOV (10mi, 94°) 8900ft
CF008 (4mi, 94°) 7699ft
(4240mi, 72°) 8040ft
SILUX (4254mi, 252°) 11500ft
SILUX (turn) 11500ft
RW10-ZCEPAM (8°)CEPAM
BODES (22mi, 349°)
CF246 (12mi, 350°) 12000ft
TONUL (5mi, 8°) 11500ft
 RNAVTONUL 11500ft
CF119 (8mi, 8°) 10800ft
LOGEM (6mi, 53°) 8900ft
SCCF (6mi, 94°) 7480ft
CF084 (8mi, 94°)
CF314 (8mi, 323°)
PAMIK (6mi, 197°) 11500ft
PAMIK (turn) 11500ft
RW28-YMALPO (250°)MALPO
CF122 (6mi, 185°) 11500ft
RW28-YUPUNA (297°)UPUNA
CF122 (6mi, 5°) 11500ft
 RNAVCF122 11500ft
KONVO (6mi, 274°) 9600ft
CF046 (2mi, 274°) 9100ft
CF034 (1mi, 274°) 8720ft
SCCF (4mi, 274°) 7681ft
(4239mi, 72°) 8040ft
SILUX (4254mi, 252°) 11500ft
SILUX (turn) 11500ft
RW28-ZMARGU (356°)MARGU
CF350 (21mi, 2°)
CF250 (11mi, 5°)
ARTOL (11mi, 5°) 11500ft
 RNAVARTOL 11500ft
CF095 (4mi, 22°) 10700ft
SIPOL (3mi, 356°) 9900ft
CF037 (3mi, 302°) 8815ft
SCCF (4mi, 274°) 7681ft
CF073 (7mi, 274°)
SILUX (9mi, 274°) 11500ft
SILUX (turn) 11500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CEPA2ASILUXVHFright280 (100)°DME 4.0miICAO rules
TATI2CSILUXVHFright280 (100)°DME 4.0miICAO rules
VUBLA2SILUXVHFright280 (100)°DME 4.0miICAO rules
VUDAP3LOANDBleft262 (82)°1.0min timedICAO rules
VURE2CSILUXVHFright280 (100)°DME 4.0miICAO rules
VURE2DLOANDBleft262 (82)°1.0min timedICAO rules
VURE2FSILUXVHFright280 (100)°DME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
