Chillan - General Bernardo O'higgins
Airport details
| Country | Chile |
| State | Ñuble Region |
| Region | SC |
| Airspace | Santiago Ctr |
| Municipality | Chillán |
| Elevation | 495ft (151m) |
| Timezone | GMT -4 |
| Coordinates | -36.58278, -72.03167 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SCCH |
| IATA code | YAI |
| FAA code | n/a |
Communication
| General Bernardo O'Higgins INFO | 127.700 |

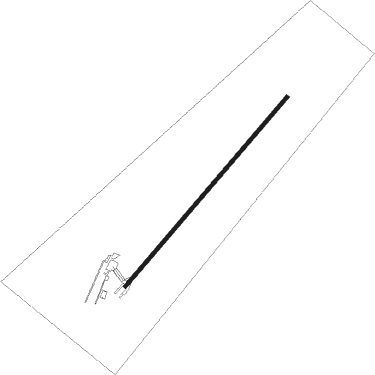

Runway info
| Runway 04 / 22 | ||
| length | 1750m (5741ft) | |
| bearing | 51° / 231° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| blast zone | 122m (400ft) / 85m (279ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| CHI | CHILLAN VOR/DME | 0.2 | 197° | 115.90 |
| MAD | LOS ANGELES VOR/DME | 52.9 | 206° | 116.30 |
Departure and arrival routes
| Transition altitude | 3000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| ASET2D, ASET3B | 20mi | 27° | |
| MULT2K, MULT3D | 20mi | 196° | |
| VUMI2P, VUMI2D | 20mi | 260° | |
| ARNA2B | 20mi | 344° | |
| RW22 | |||
| ASET2J, ASET2K | 20mi | 27° | |
| MULT2J, MULT2L | 20mi | 196° | |
| VUMI2N, VUMI2Q | 20mi | 260° | |
| ARNA2A | 20mi | 344° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW04 | |||
| VUMI2C | 20.3 | 80° | |
| RW22 | |||
| VUMI2B | 20.3 | 80° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW04 | DAKOM (76°) | DAKOM 3000ft TEKAT (6mi, 129°) 3000ft |
| RW04 | TEKAT (51°) | TEKAT 3000ft |
| RNAV | TEKAT 3000ft TOKEM (6mi, 51°) 2200ft KOSPA (3mi, 51°) 1300ft SCCH (3mi, 51°) 542ft (4544mi, 63°) 3000ft SAMPU (4534mi, 243°) 3000ft SAMPU (turn) 3000ft | |
| RW22 | NEPAS (255°) | NEPAS 3000ft SAMPU (6mi, 309°) 3000ft |
| RW22 | SAMPU (231°) | SAMPU 3000ft |
| RW22 | VULES (202°) | VULES 3000ft SAMPU (6mi, 129°) 3000ft |
| RNAV | SAMPU 3000ft SILUK (6mi, 231°) 2200ft SCCH (6mi, 231°) 549ft (4544mi, 63°) 3000ft TEKAT (4553mi, 243°) 3000ft TEKAT (turn) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ASET2B | SAMPU | VHF | right | 41 (221)° | DME 4.0mi | ICAO rules | |
| ASET3A | CF22 | VHF | right | 36 (216)° | 1.0min timed | ICAO rules | |
| MULT3A | CF04 | VHF | right | 227 (47)° | 1.0min timed | ICAO rules | |
| MULT3C | TEKAT | VHF | right | 221 (41)° | DME 4.0mi | ICAO rules | |
| VUMI2C | TEKAT | VHF | right | 221 (41)° | DME 4.0mi | ICAO rules | |
| VUMI3A | CF04 | VHF | right | 227 (47)° | 1.0min timed | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
