Punta Arenas - Carlos Ibanez Del Campo Intl
Airport details
| Country | Chile |
| State | Region of Magallanes and Chilean Antarct |
| Region | SC |
| Airspace | Punta Arenas Ctr |
| Municipality | Punta Arenas |
| Elevation | 139ft (42m) |
| Timezone | GMT -4 |
| Coordinates | -53.00361, -70.85361 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SCCI |
| IATA code | PUQ |
| FAA code | n/a |
Communication
| Carlos Ibanez del Campo Intl Ground Control | 121.900 |
| Carlos Ibanez del Campo Intl Tower | 118.700 |
| Carlos Ibanez del Campo Intl Approach | 128.100 |
| Carlos Ibanez del Campo Intl Approach | 123.900 |
| Carlos Ibanez del Campo Intl Departure | 118.700 |
| Carlos Ibanez del Campo Intl Departure | 133.000 |
Approach frequencies
| ILS-cat-I | RW25 | 109.9 | 18.00mi |
| 3° GS | RW25 | 109.9 | 18.00mi |
Nearby Points of Interest:
Gendarmería de Punta Arenas
-Plaza Muñoz Gamero

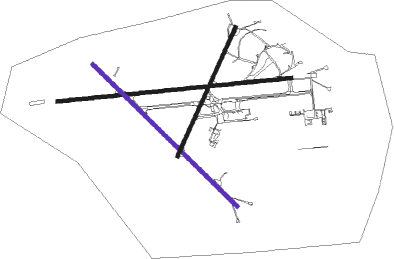

Runway info
Runway 07 / 25  | ||
| length | 2787m (9144ft) | |
| bearing | 89° / 269° | |
| width | 44m (144ft) | |
| surface | asphalt | |
| blast zone | 167m (548ft) / 239m (784ft) | |
| Runway 12 / 30 | ||
| length | 2397m (7864ft) | |
| bearing | 125° / 305° | |
| width | 44m (146ft) | |
| surface | asphalt | |
| blast zone | 58m (190ft) / 59m (194ft) | |
| Runway 01 / 19 | ||
| length | 1676m (5499ft) | |
| bearing | 42° / 222° | |
| width | 44m (144ft) | |
| surface | asphalt | |
| blast zone | 0m (0ft) / 58m (190ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| NAS | PUNTA ARENAS VOR/DME | 0 | 252° | 114.10 |
| NAS | PUNTA ARENAS NDB | 0.5 | 237° | 270 |
Departure and arrival routes
| Transition altitude | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW25 | |||
| SIRU3A | 66mi | 302° | |
| RW30 | |||
| SIRU3A | 66mi | 302° | |
| YAGAN1 | 70mi | 308° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW07 | |||
| NEDA3F | 69.9 | 128° | |
| MUNE2F | 62.5 | 156° | |
| EGOS2F | 60.4 | 172° | |
| RW12 | |||
| NEDA3F | 69.9 | 128° | |
| MUNE2F | 62.5 | 156° | |
| EGOS2F | 60.4 | 172° | |
| RW13 | |||
| NEDA3F | 69.9 | 128° | |
| MUNE2F | 62.5 | 156° | |
| EGOS2F | 60.4 | 172° | |
| RW25 | |||
| NEDA3G | 69.9 | 128° | |
| NEDA3E | 25.4 | 134° | |
| MUNE3G, MUNE2E | 62.5 | 156° | |
| EGOS1E | 60.4 | 172° | |
| RW30 | |||
| NEDA3E | 25.4 | 134° | |
| MUNE2E | 62.5 | 156° | |
| EGOS1E | 60.4 | 172° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW07-Y | DUBLU (90°) | DUBLU 3000ft |
| RW07-Y | OREPU (125°) | OREPU 4000ft UGROL (7mi, 190°) 3500ft DUBLU (5mi, 178°) 3000ft |
| RNAV | DUBLU 3000ft UROXA (6mi, 89°) 1400ft SCCI (5mi, 90°) 190ft (4722mi, 53°) 540ft ISAPU (4711mi, 233°) 3000ft ISAPU (turn) 3000ft | |
| RW07-Z | OREPU (125°) | OREPU 4000ft CI103 (7mi, 151°) 2500ft |
| RNAV | CI103 2500ft CI071 (3mi, 158°) 2000ft UROXA (3mi, 115°) 1460ft SCCI (5mi, 90°) 190ft (4722mi, 53°) 3000ft ISAPU (4711mi, 233°) 3000ft ISAPU (turn) 3000ft | |
| RW12 | AKTEB (124°) | AKTEB 3000ft |
| RW12 | OREPU (125°) | OREPU 4000ft AKTEB (5mi, 128°) 3000ft |
| RNAV | AKTEB 3000ft CI040 (6mi, 125°) 1400ft SCCI (5mi, 123°) 189ft (4722mi, 53°) 540ft PABIS (4717mi, 233°) 3000ft PABIS (turn) 3000ft | |
| RW25-Y | ISAPU (269°) | ISAPU 3000ft |
| RW25-Y | PAMIP (155°) | PAMIP 4000ft PALUN (14mi, 101°) 3500ft ISAPU (5mi, 178°) 3000ft |
| RNAV | ISAPU 3000ft VAPIL (6mi, 269°) 1400ft SCCI (5mi, 268°) 163ft (4722mi, 53°) 3000ft DUBLU (4732mi, 233°) 3000ft DUBLU (turn) 3000ft | |
| RW25-Z | PAMIP (155°) | PAMIP 4000ft CI125 (6mi, 110°) 3000ft |
| RNAV | CI125 3000ft CI095 (3mi, 110°) 2500ft CI048 (4mi, 167°) 1700ft CI029 (2mi, 255°) 1100ft SCCI (4mi, 268°) 162ft (4722mi, 53°) 3000ft DUBLU (4732mi, 233°) 3000ft DUBLU (turn) 3000ft | |
| RW30-Y | PABIS (305°) | PABIS 3000ft |
| RW30-Y | PAMIP (155°) | PAMIP 4000ft SIMIR (20mi, 123°) 3500ft PABIS (5mi, 242°) 3000ft |
| RNAV | PABIS 3000ft SALPO (6mi, 304°) 1400ft SCCI (5mi, 307°) 163ft (4722mi, 53°) 600ft USORI (4727mi, 233°) 3000ft USORI (turn) 3000ft | |
| RW30-Z | PAMIP (155°) | PAMIP 4000ft CI143 (9mi, 122°) 3000ft |
| RNAV | CI143 3000ft CI112 (3mi, 121°) 2500ft CI049 (5mi, 217°) 1700ft CI030 (2mi, 286°) 1100ft SCCI (4mi, 307°) 162ft CI040 (5mi, 303°) USORI (5mi, 290°) 3000ft USORI (turn) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| EGOS1E | PAMIP | VHF | left | 306 (126)° | DME 4.0mi | ICAO rules | |
| EGOS2F | OREPU | VHF | left | 329 (149)° | DME 4.0mi | ICAO rules | |
| EGOS2F | PORVA | VHF | left | 306 (126)° | DME 5.0mi | ICAO rules | |
| MUNE2E | PAMIP | VHF | left | 306 (126)° | DME 4.0mi | ICAO rules | |
| MUNE2F | OREPU | VHF | left | 329 (149)° | DME 4.0mi | ICAO rules | |
| MUNE2F | PORVA | VHF | left | 306 (126)° | DME 5.0mi | ICAO rules | |
| MUNE3G | PAMIP | VHF | left | 306 (126)° | DME 4.0mi | ICAO rules | |
| NEDA3E | PAMIP | VHF | left | 306 (126)° | DME 4.0mi | ICAO rules | |
| NEDA3E | PORVA | VHF | left | 306 (126)° | DME 5.0mi | ICAO rules | |
| NEDA3F | OREPU | VHF | left | 329 (149)° | DME 4.0mi | ICAO rules | |
| NEDA3F | PORVA | VHF | left | 306 (126)° | DME 5.0mi | ICAO rules | |
| NEDA3G | PAMIP | VHF | left | 306 (126)° | DME 4.0mi | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
