Viña Del Mar
Airport details
| Country | Chile |
| State | Valparaiso Region |
| Region | SC |
| Airspace | Santiago Ctr |
| Municipality | Concón |
| Elevation | 459ft (140m) |
| Timezone | GMT -4 |
| Coordinates | -32.94620, -71.47844 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SCVM |
| IATA code | KNA |
| FAA code | n/a |
Communication
| Viña del Mar Ground Control | 121.850 |
| Viña del Mar Approach | 128.100 |
| Viña del Mar Tower | 118.400 |
Approach frequencies
| ILS-cat-I | RW05 | 110.7 | 18.00mi |
| 3.2° GS | RW05 | 110.7 | 18.00mi |
Nearby Points of Interest:
Dunas de Concón
-Valparaiso Sporting Club
-Casa de Italia, Viña del Mar
-Palmar El Salto
-Trolleybuses in Valparaíso
-Iglesia Los Doce Apóstoles
-Iglesia Asilo del Salvador
-Iglesia del Corazón de María, Valparaíso
-Casa Ballivian
-Biblioteca Santiago Severín
-Edificio Almirante Luis Uribe Orrego
-Edificio Crucero Guevara
-Palacio Ross
-Mural Vida Oceánica
-Palacio Lyon, Valparaíso
-Plaza Aníbal Pinto
-Calle Prat
-Union Church, Valparaíso
-Edificio Ex Intendencia, Valparaíso
-Población Quebrada Márquez
-Iglesia de la Matriz
-Iglesia Anglicana de San Pablo
-Cemetery Nº 1, Valparaíso, Chile
-Antiguo Colegio Alemán de Valparaíso
-Cerro Cordillera

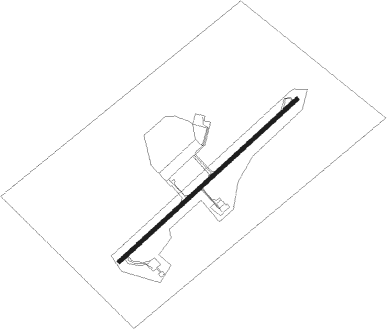

Runway info
| Runway 05 / 23 | ||
| length | 1687m (5535ft) | |
| bearing | 57° / 237° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| displ threshold | 26m (85ft) / 26m (85ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VDM | VINA DEL MAR VOR/DME | 0.2 | 79° | 114.90 |
| SAL | SALINAS NDB | 3.7 | 235° | 390 |
| VTN | VENTANAS VOR/DME | 12.4 | 355° | 113.30 |
| TBN | TABON VOR/DME | 32.3 | 88° | 113.90 |
| SNO | SANTO DOMINGO NDB | 42.8 | 191° | 355 |
| DGO | DOMINGO VOR/DME | 43.2 | 191° | 112.30 |
| PDH | PUDAHUEL (SANTIAGO) VOR/DME | 44.1 | 125° | 117.20 |
| AMB | SANTIAGO VOR/DME | 45 | 124° | 116.10 |
| BQE | EL BOSQUE VOR/DME | 54.2 | 128° | 117.50 |
Departure and arrival routes
| Transition altitude | 3500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW05 | |||
| DILO3C | 74mi | 40° | |
| GUVO3D | 72mi | 66° | |
| BUXI2A | 41mi | 359° | |
| RW23 | |||
| DILO3C | 74mi | 40° | |
| GUVO3D | 72mi | 66° | |
| ZAPAL7 | 12mi | 355° | |
| BUXI2B | 41mi | 359° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ESMAN4, REVEN3 | 12.4 | 175° | |
| POSUL4, SATOR5 | 22.4 | 348° | |
| RW05 | |||
| SELT2J | 22.8 | 13° | |
| LAVER5 | 13.8 | 29° | |
| MILIK3, KALET5 | 12.4 | 175° | |
| SABL3B | 22.4 | 348° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05-Y | POSLA (56°) | POSLA 3500ft |
| RNAV | POSLA 3500ft VM075 (3mi, 57°) 3000ft LIXOK (4mi, 57°) 1600ft VM007 (3mi, 57°) 743ft VM170 (13mi, 260°) 3500ft VM170 (turn) 3500ft | |
| RW05 | POSLA (56°) | POSLA 3500ft |
| RNAV | POSLA 3500ft VM075 (3mi, 57°) 3000ft LIXOK (4mi, 57°) 1600ft SCVM (4mi, 55°) 504ft VM170 (14mi, 257°) 3500ft VM170 (turn) 3500ft | |
| RW23 | BISUX (178°) | BISUX 8000ft VM308 (10mi, 124°) VM238 (7mi, 124°) VM150 (8mi, 180°) 5100ft |
| RW23 | MILIK (175°) | MILIK 6000ft VM308 (12mi, 46°) VM238 (7mi, 124°) VM150 (8mi, 180°) 5100ft |
| RNAV | VM150 5100ft ETIBO (5mi, 237°) 4300ft SCVM (10mi, 238°) 471ft ROKUN (12mi, 288°) 4500ft ROKUN (turn) 4500ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ESMAN4 | SAL | FIX | left | 69 (249)° | 1.0min timed | ICAO rules | |
| LATAB4 | SAL | FIX | left | 69 (249)° | 1.0min timed | ICAO rules | |
| LAVER5 | CD05 | VHF | left | 229 (49)° | DME 4.0mi | ICAO rules | |
| MILIK3 | VM170 | VHF | right | 304 (124)° | 1.0min timed | ICAO rules | |
| MIROL5 | CD05 | VHF | left | 229 (49)° | DME 4.0mi | ICAO rules | |
| PACIL3 | VDM | NDB | left | 67 (247)° | 1.0min timed | ICAO rules | |
| POSUL4 | SAL | FIX | left | 69 (249)° | 1.0min timed | ICAO rules | |
| REVEN3 | VDM | NDB | left | 67 (247)° | 1.0min timed | ICAO rules | |
| SATOR5 | VDM | NDB | left | 67 (247)° | 1.0min timed | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
