Airports for X-Plane

Salinas - Salinas - General Ulpiano Paez

Airport details

CountryEcuador
StateSanta Elena Province
RegionSE
AirspaceGuayaquil Ctr
MunicipalitySalinas
Elevation18ft (5m)
TimezoneGMT -5
Coordinates-2.20583, -80.98473
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSESA
IATA codeSNC
FAA coden/a

Communication

Salinas - General Ulpiano Paez SALINAS Tower122.400
Salinas - General Ulpiano Paez SALINAS Approach124.100

Approach frequencies

ILS-cat-IRW31108.718.00mi
3° GSRW31108.718.00mi

Runway info

Runway 13 / 31
 length2435m (7989ft)
 bearing130° / 310°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 1m (3ft)
Runway 08 / 26
 length1067m (3501ft)
 bearing82° / 262°
 width40m (131ft)
 surfaceasphalt

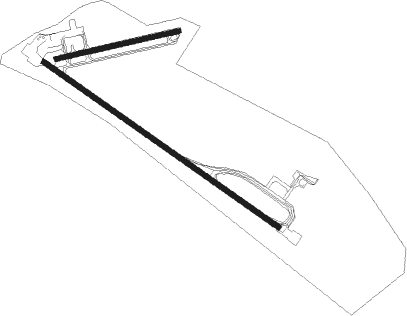

Airport layout


Parking locations

 GA  H1  H2  H3  M1  T1  T2

Nearby beacons

codeidentifierdistbearingfrequency
SLSSALINAS NDB1137°415
SAVSALINAS VOR/DME1.2139°114.10
SOLCHONGON (GUAYAQUIL) NDB54.592°280

Departure and arrival routes

Transition altitude3000ft
Transition level3000ft
SID end pointsdistanceoutbound heading
RW13
 ASBEX228mi16°
 IVSOV228mi51°
 ASOSI227mi87°
RW31
 ASBE2A, ASBE2B28mi16°
 IVSO2A28mi51°
 IVSO2B36mi57°
 ASOS2B, ASOS2A27mi87°
 ATEN1A54mi280°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW31-ZASOSI (267°)ASOSI
SA314 (18mi, 251°) 2000ft
SA312 (4mi, 251°) 1800ft
RW31-ZSA930 (310°)SA930 3000ft
SA312 (6mi, 310°) 1800ft
 RNAVSA312 1800ft
DAKIM (3mi, 310°) 1500ft
SESA (6mi, 312°) 62ft
SA930 (14mi, 130°) 3000ft
SA930 (turn) 3000ft
