Airports for X-Plane

Marandúa - Marandua Ab

Airport details

Country	Colombia
State	Vichada
Region
Airspace	Bogota Ctr
Municipality	Puerto Carreño
Elevation	285ft (87m)
Timezone	GMT -5
Coordinates	5.52436, -68.68964
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SKUA
IATA code	n/a
FAA code	n/a

Communication

Marandua AB RODRIGUEZ Tower	126.200
Marandua AB TERECAY RADAR	131.000

Approach frequencies

ILS-cat-I	RW07	109.3	18.00mi
3° GS	RW07	109.3	18.00mi

Runway info

Runway 03 / 21
	length	2472m (8110ft)
	bearing	24° / 204°
	width	30m (100ft)
	surface	dirt
Runway 07 / 25
	length	2067m (6781ft)
	bearing	63° / 243°
	width	44m (145ft)
	surface	asphalt
	blast zone	255m (837ft) / 0m (0ft)

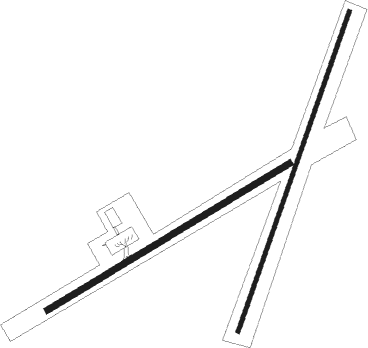

Airport layout

Nearby beacons

code	identifier	dist	bearing	frequency
MDU	MARANDUA VOR/DME	1.1	62°	114.20

Departure and arrival routes

SID end points		distance	outbound heading
RW03
	OVTU1A	47mi	61°
	AMVO1C	51mi	253°
	LUTV1C	49mi	278°
	TIDS1C	21mi	309°
RW07
	OVTU1B	47mi	61°
	KUBT1A	41mi	85°
	AMVO1B	51mi	253°
	LUTV1B	49mi	278°
	TIDS1B	21mi	309°

STAR starting points		distance	inbound heading
RW03
	AMVO1A	50.7	73°
	LUTV1A	48.9	98°
	TIDS1A	20.6	129°
RW07
	AMVO1A	50.7	73°
	LUTV1A	48.9	98°
	TIDS1A	20.6	129°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	UA702 (42°)	UA702 5000ft UA701 (5mi, 333°) 4000ft
RW07	UA703 (84°)	UA703 5000ft UA701 (5mi, 153°) 4000ft
	RNAV	UA701 4000ft UA704 (7mi, 63°) 2100ft UA705 (4mi, 63°) 800ft UA702 (12mi, 219°) 4000ft UA701 (5mi, 333°) 4000ft UA701 (turn) 4000ft
