Airports for X-Plane

Cochabamba - Jorge Wilsterman

Airport details

CountryBolivia
StateCochabamba
RegionSL
AirspaceLa Paz Ctr
MunicipalityCercado
Elevation8358ft (2548m)
TimezoneGMT -4
Coordinates-17.41833, -66.17722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSLCB
IATA codeCBB
FAA coden/a

Communication

Jorge Wilsterman Ground Control121.900
Jorge Wilsterman Tower123.500
Jorge Wilsterman Approach119.300

Approach frequencies

ILS-cat-IRW32110.518.00mi
3.3° GSRW32110.518.00mi

Runway info

Runway 14 / 32
 length3804m (12480ft)
 bearing131° / 311°
 width45m (148ft)
 surfaceasphalt
 displ threshold100m (328ft) / 300m (984ft)
 blast zone61m (200ft) / 61m (200ft)
Runway 04 / 22
 length2656m (8714ft)
 bearing39° / 219°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 223m (732ft)

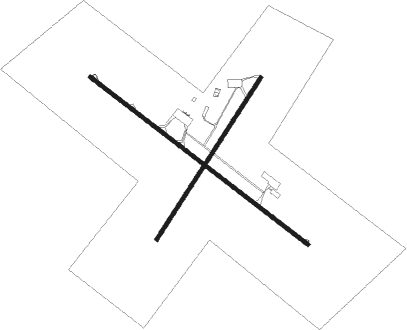

Airport layout


Taxiway locations

 A  B  C  D  SLCB
Parking locations

 1  2  3  4  5  6

Nearby beacons

codeidentifierdistbearingfrequency
CBACOCHABAMBA VOR/DME0.2210°112.10
CBBCOCHABAMBA NDB0.2358°320
RCOCHABAMBA NDB5.1282°402
ORUORURO VOR/DME61.5238°113

Departure and arrival routes

Transition altitude18000ft
SID end pointsdistanceoutbound heading
RW14
 PUNAV229mi37°
 VAREB336mi94°
 MUNET235mi115°
 ATAVO235mi151°
 MEXAM235mi171°
 TEREP235mi282°
 TEDOK235mi294°
 MOSGO229mi347°
RW32
 PUNAV229mi37°
 VAREB336mi94°
 MUNET235mi115°
 ATAVO235mi151°
 MEXAM235mi171°
 TEREP335mi282°
 TEDOK335mi294°
 MOSGO229mi347°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW32-ZCB741 (286°)CB741 17000ft
ESNAR (10mi, 243°) 13300ft
RW32-ZCB742 (331°)CB742 16000ft
ESNAR (7mi, 23°) 13300ft
RW32-ZPORKI (311°)PORKI 16000ft
ESNAR (7mi, 311°) 13300ft
 RNAVESNAR 13300ft
CB745 (11mi, 311°) 9700ft
SLCB (5mi, 312°) 8402ft
CB747 (4mi, 309°) 10300ft
CB748 (18mi, 180°) 16000ft
CB748 (turn) 16000ft
