Airports for X-Plane

Arequipa - Rodríguez Ballon

Airport details

CountryPeru
StateArequipa
RegionSP
AirspaceLima Ctr
MunicipalityCerro Colorado
Elevation8398ft (2560m)
TimezoneGMT -5
Coordinates-16.34838, -71.56816
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSPQU
IATA codeAQP
FAA coden/a

Communication

Rodríguez Ballon Ground Control121.900
Rodríguez Ballon Tower118.700
Rodríguez Ballon Departure118.700

Approach frequencies

ILS-cat-IRW10109.718.00mi
3° GSRW10109.718.00mi
Nearby Points of Interest:
Mercado San Camilo
-
Hospital Goyeneche

Runway info

Runway 10 / 28
 length2974m (9757ft)
 bearing93° / 273°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 437m (1434ft)
 blast zone56m (184ft) / 61m (200ft)

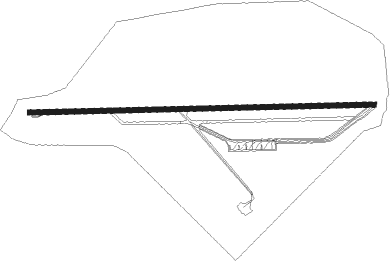

Airport layout


Taxiway locations

 28  A  B  B1  SPQU
Parking locations

 1  2  3  4  5  6

Nearby beacons

codeidentifierdistbearingfrequency
EQUAREQUIPA VOR/DME1.7288°113.70
UASSIHUAS VOR32.6268°113.50

Departure and arrival routes

Transition altitude14000ft
SID end pointsdistanceoutbound heading
RW28
 TONO3F46mi57°
 GAVA2F46mi144°
 SIME1F, SIME1G116mi273°
 KOLK3F, KOLK3G47mi327°

STAR starting pointsdistanceinbound heading
RW10
 TOROK182.392°
 ASUP1A, ASUP1B62.8116°
 KOLK3A46.9147°
 TONO3A45.9237°
 GAVA2A45.6324°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASUP1AUASNDBright262 (82)°> 14000ftDME 2.0miICAO rules
GAVA2AGEMAMVHFright278 (98)°> 14000ftDME 5.0miICAO rules
KOLK3AUASNDBright262 (82)°> 14000ftDME 2.0miICAO rules
TONO3AGEMAMVHFright278 (98)°> 14000ftDME 5.0miICAO rules
TOROK1UASNDBright262 (82)°> 14000ftDME 2.0miICAO rules
*) magnetic outbound (inbound) holding course
