Airports for X-Plane

Maracaibo - La Chinita

Airport details

CountryVenezuela
StateZulia State
RegionSV
AirspaceMaiquetia Ctr
MunicipalityParroquia Marcial Hernández
Elevation261ft (80m)
TimezoneGMT -4
Coordinates10.56307, -71.72353
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSVMC
IATA codeMAR
FAA coden/a

Communication

La Chinita Ground Control121.900
La Chinita Tower118.900
La Chinita MARACAIBO Approach120.200
La Chinita MARACAIBO Approach119.700

Approach frequencies

ILS-cat-IRW03L110.118.00mi
3° GSRW03L110.118.00mi

Runway info

Runway 03L / 21R
 length3014m (9888ft)
 bearing23° / 203°
 width45m (148ft)
 surfaceasphalt
 blast zone38m (125ft) / 255m (837ft)
Runway 03R / 21L
 length2516m (8255ft)
 bearing23° / 203°
 width30m (98ft)
 surfaceasphalt

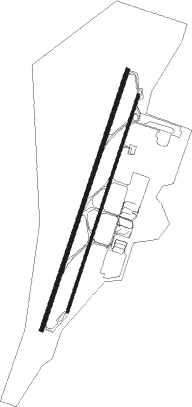

Airport layout


Taxiway locations

 A  B  H  I
Parking locations

 GA  Military  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
MARMARACAIBO VORTAC1.226°115.70
MAUMENE MAUROA VOR/DME40.980°117.90
CJNCERREJON VOR/DME60.5311°113.40

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW03L
 MAURO141mi80°
 PADOS123mi101°
 OJEDA126mi161°
 BOBAT139mi187°
 GAVIS130mi283°
 ASIBA152mi311°
 MAICA122mi348°
RW03R
 ASIBA152mi311°
RW21L
 UTPIL152mi311°
RW21R
 MAURO141mi80°
 PADOS123mi101°
 OJEDA126mi161°
 BOBAT139mi187°
 GAVIS130mi283°
 UTPIL152mi311°
 MAICA122mi348°

STAR starting pointsdistanceinbound heading
RW03L
 BOBAT138.97°
 GAVIS129.5103°
 OSAK1B, OSAK1A52.3131°
 GUER1A, GUER1B31.4148°
 ASEMA127.1228°
 DAKAS131.2244°
 TEGER133.5313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03LYBOBAT (7°)BOBAT
MUGAT (24mi, 8°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LYGAVIS (103°)GAVIS
UPULA (18mi, 129°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03LYGIDOX (281°)GIDOX
NEKOR (29mi, 259°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LYGUERO (148°)GUERO
UPULA (32mi, 178°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03LYMAU (260°)MAU
NEKOR (41mi, 241°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LYOSAKA (131°)OSAKA
UPULA (46mi, 148°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
 RNAVPUNOK 3000ft
KEXAN (4mi, 23°) 1600ft
SVMC (5mi, 25°) 266ft
ASIBA (2mi, 19°)
MUGAT (17mi, 188°) 4000ft
MUGAT (turn)
RW03LZBOBAT (7°)BOBAT
MUGAT (24mi, 8°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LZGAVIS (103°)GAVIS
UPULA (18mi, 129°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03LZGIDOX (281°)GIDOX
NEKOR (29mi, 259°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LZGUERO (148°)GUERO
UPULA (32mi, 178°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03LZMAU (260°)MAU
NEKOR (41mi, 241°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03LZOSAKA (131°)OSAKA
UPULA (46mi, 148°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
 RNAVPUNOK 3000ft
KEXAN (4mi, 23°) 1600ft
SVMC (5mi, 25°) 266ft
ASIBA (2mi, 19°)
MUGAT (17mi, 188°) 4000ft
MUGAT (turn)
RW03RBOBAT (7°)BOBAT
MUGAT (24mi, 8°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03RGAVIS (103°)GAVIS
UPULA (18mi, 129°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03RGIDOX (281°)GIDOX
NEKOR (29mi, 259°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03RGUERO (148°)GUERO
UPULA (32mi, 178°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
RW03RMAU (260°)MAU
NEKOR (41mi, 241°) 3000ft
MUGAT (7mi, 249°) 3000ft
PUNOK (6mi, 339°) 3000ft
RW03ROSAKA (131°)OSAKA
UPULA (46mi, 148°) 4000ft
MIMER (9mi, 131°) 3000ft
PUNOK (5mi, 67°) 3000ft
 RNAVPUNOK 3000ft
GILSO (4mi, 24°) 1600ft
SVMC (5mi, 24°) 257ft
ASIBA (2mi, 19°)
MUGAT (17mi, 188°) 4000ft
MUGAT (turn)
RW21LBOBAT (7°)BOBAT
ILMAL (47mi, 19°) 3000ft
GIBTA (5mi, 337°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21LGAVIS (103°)GAVIS
IRUTA (31mi, 78°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21LGIDOX (281°)GIDOX
GIBTA (30mi, 304°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21LMAU (260°)MAU
GIBTA (33mi, 275°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21LOSAKA (131°)OSAKA
EKOTE (33mi, 116°) 4000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21LURIBI (148°)URIBI
EKOTE (27mi, 143°) 3000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
 RNAVEDRAX 3000ft
DONPO (4mi, 202°) 1600ft
SVMC (5mi, 202°) 279ft
UTPIL (3mi, 206°)
GIBTA (16mi, 36°) 4000ft
GIBTA (turn)
RW21RYBOBAT (7°)BOBAT
ILMAL (47mi, 19°) 3000ft
GIBTA (5mi, 337°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RYGAVIS (103°)GAVIS
IRUTA (31mi, 78°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21RYGIDOX (281°)GIDOX
GIBTA (30mi, 304°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RYMAU (260°)MAU
GIBTA (33mi, 275°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RYOSAKA (131°)OSAKA
EKOTE (33mi, 116°) 4000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21RYURIBI (148°)URIBI
EKOTE (27mi, 143°) 3000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
 RNAVEDRAX 3000ft
LOBAM (4mi, 203°) 1600ft
SVMC (5mi, 201°) 289ft
UTPIL (3mi, 206°)
GIBTA (16mi, 36°) 4000ft
GIBTA (turn)
RW21RZBOBAT (7°)BOBAT
ILMAL (47mi, 19°) 3000ft
GIBTA (5mi, 337°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RZGAVIS (103°)GAVIS
IRUTA (31mi, 78°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21RZGIDOX (281°)GIDOX
GIBTA (30mi, 304°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RZMAU (260°)MAU
GIBTA (33mi, 275°) 3000ft
EDRAX (5mi, 247°) 3000ft
RW21RZOSAKA (131°)OSAKA
EKOTE (33mi, 116°) 4000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
RW21RZURIBI (148°)URIBI
EKOTE (27mi, 143°) 3000ft
IRUTA (14mi, 123°) 3000ft
EDRAX (5mi, 159°) 3000ft
 RNAVEDRAX 3000ft
LOBAM (4mi, 203°) 1600ft
SVMC (5mi, 201°) 289ft
UTPIL (3mi, 206°)
GIBTA (16mi, 36°) 4000ft
GIBTA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOBAT1DAGEMVHFright197 (17)°5000ft - 60000ft1.0min timedICAO rules
GAVIS1MUNAXVHFright289 (109)°> 5000ft1.0min timedICAO rules
GUER1AMUNAXVHFright289 (109)°> 5000ft1.0min timedICAO rules
OSAK1AMUNAXVHFright289 (109)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
