Airports for X-Plane

Mérida - Alberto Carnevalli

Airport details

CountryVenezuela
StateMerida State
RegionSV
AirspaceMaiquetia Ctr
MunicipalityMérida
Elevation5004ft (1525m)
TimezoneGMT -4
Coordinates8.58222, -71.16111
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeSVMD
IATA codeMRD
FAA coden/a

Communication

Alberto Carnevalli Ground Control121.900
Alberto Carnevalli MERIDA Tower118.050
Nearby Points of Interest:
Alberto Carnevalli Airport
-
Juan Pablo Pérez Alfonso Airport

Runway info

Runway 07 / 25
 length1627m (5338ft)
 bearing60° / 240°
 width45m (148ft)
 surfaceasphalt

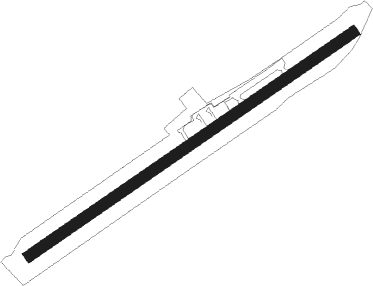

Airport layout


Parking locations

 Hangar  New

Nearby beacons

codeidentifierdistbearingfrequency
EVGEL VIGIA NDB29.9275°393
EVGEL VIGIA VOR/DME30.7274°116.80
STBSANTA BARBARA DEL ZULIA VOR/DME52297°114.90
BNSBARINAS VOR/DME55.888°117.50
VRAVALERA VOR/DME61.936°114.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07EVG (95°)EVG
BUVOR (14mi, 127°) 11000ft
DABLU (6mi, 84°) 9700ft
 RNAVDABLU 9700ft
ANBAN (5mi, 71°) 7900ft
UPORI (3mi, 70°) 6680ft
DABLU (8mi, 251°) 11000ft
BUVOR (6mi, 264°) 11000ft
BUVOR (turn) 11000ft
