Airports for X-Plane

Caracas - Caracas Simon Bolivar Intl

Airport details

CountryVenezuela
StateVargas State
RegionSV
AirspaceMaiquetia Ctr
MunicipalityParroquia Urimare
Elevation229ft (70m)
TimezoneGMT -4
Coordinates10.60119, -66.99122
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSVMI
IATA codeCCS
FAA coden/a

Communication

Caracas Simon Bolivar Intl ATIS132.950
Caracas Simon Bolivar Intl MAIQUETIA UNICOM128.800
Caracas Simon Bolivar Intl CLD119.500
Caracas Simon Bolivar Intl Ground Control121.900
Caracas Simon Bolivar Intl EMERG121.500
Caracas Simon Bolivar Intl MAIQUETIA Tower118.400
Caracas Simon Bolivar Intl MAIQUETIA TOWER118.100
Caracas Simon Bolivar Intl MAIQUETIA GROUND121.700
Caracas Simon Bolivar Intl MAIQUETIA ApproachROACH120.100
Caracas Simon Bolivar Intl MAIQUETIA Approach120.400
Caracas Simon Bolivar Intl MAIQUETIA Departure118.400

Approach frequencies

ILS-cat-IRW10110.118.00mi
3° GSRW10110.118.00mi
Nearby Points of Interest:
YVTO
-
National Archives of Venezuela
-
Concepción Palacios Maternity Hospital
-
Palacio de las Academias
-
Palacio Arzobispal, Caracas
-
Previsora Tower
-
Puente Anauco
-
Southern General Cemetery
-
University City of Caracas
-
Plaza de Las Tres Gracias
-
Torre Europa
-
La Casona
-
Casa Guipuzcoana

Runway info

Runway 10 / 28
 length3493m (11460ft)
 bearing88° / 268°
 width45m (148ft)
 surfaceasphalt
 blast zone58m (190ft) / 65m (213ft)
Runway 09 / 27
 length2877m (9439ft)
 bearing76° / 256°
 width44m (145ft)
 surfaceasphalt

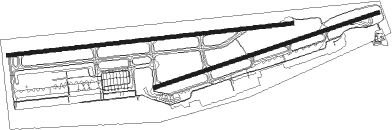

Airport layout


Taxiway locations

 A  B  C  D  E  F  H  J
 K  L  M  N
Parking locations

 Cargo  D13  D15  D16  D19  D20  D24  D27
 D28  GA  Gate  Hangar  North

Nearby beacons

codeidentifierdistbearingfrequency
MIQMAIQUETIA VOR/DME0.511°114.80
TUYTUY (CARACAS) VOR/DME21.7148°115.20
SSBSAN SEBASTIAN NDB39.6194°318
BALEL LIBERTADOR (MARACAY) VOR/DME41.3233°113.90
CBCCABO CODERA VOR/DME55.592°113.50
BELBELEN NDB55.6229°235
VALVALENCIA VOR/DME61.3244°117.40

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW09
 DARPA218mi14°
 OSMAR227mi73°
 MARES117mi310°
 REKON318mi344°
RW10
 DARPA218mi14°
 VADOR171mi44°
 OSMAR227mi73°
 SOSKA145mi82°
 BUTSA178mi309°
 MARES117mi310°
 REKON318mi344°
RW28
 DARPA318mi14°
 OSMAR227mi73°
 MARES117mi310°
 REKON218mi344°

STAR starting pointsdistanceinbound heading
RW10
 ALDAK139.888°
 PULPO171.1185°
 NETSI137.7250°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YKORLI (228°)KORLI 5000ft
DARPA (10mi, 301°) 5000ft
REKON (9mi, 268°) 5000ft
MARES (10mi, 236°) 5000ft
ROSEL (12mi, 177°) 4000ft
RW10-YROMEX (98°)ROMEX 5000ft
ROSEL (12mi, 108°) 4000ft
 RNAVROSEL 4000ft
DOLVO (8mi, 88°) 1400ft
SVMI (5mi, 90°) 283ft
ESSER (turn)
DARPA (18mi, 15°) 4000ft
DARPA (turn)
RW10-ZKORLI (228°)KORLI 5000ft
DARPA (10mi, 301°) 5000ft
REKON (9mi, 268°) 5000ft
MARES (10mi, 236°) 5000ft
ROSEL (12mi, 177°) 4000ft
RW10-ZROMEX (98°)ROMEX 5000ft
ROSEL (12mi, 108°) 4000ft
 RNAVROSEL 4000ft
DOLVO (8mi, 88°) 1400ft
SVMI (5mi, 90°) 283ft
ESSER (turn)
DARPA (18mi, 15°) 4000ft
DARPA (turn)
RW28-YJUREL (229°)JUREL 3200ft
LOMUN (23mi, 217°) 3200ft
RW28-YTORIM (98°)TORIM 5000ft
MARES (22mi, 73°) 5000ft
REKON (10mi, 56°) 5000ft
DARPA (9mi, 88°) 5000ft
KORLI (10mi, 121°) 3200ft
LOMUN (8mi, 194°) 3200ft
 RNAVLOMUN 3200ft
YOFRE (7mi, 248°) 1600ft
MIDAK (4mi, 258°) 357ft
(4047mi, 99°) 640ft
REKON (4054mi, 279°) 4000ft
REKON (turn)
RW28-ZJUREL (229°)JUREL 3200ft
LOMUN (23mi, 217°) 3200ft
RW28-ZTORIM (98°)TORIM 5000ft
MARES (22mi, 73°) 5000ft
REKON (10mi, 56°) 5000ft
DARPA (9mi, 88°) 5000ft
KORLI (10mi, 121°) 3200ft
LOMUN (8mi, 194°) 3200ft
 RNAVLOMUN 3200ft
YOFRE (7mi, 248°) 1600ft
MIDAK (4mi, 258°) 357ft
(4047mi, 99°) 640ft
REKON (4054mi, 279°) 4000ft
REKON (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALDAK1PBLNDBleft269 (89)°1.0min timedICAO rules
NETSI1CBCNDBright138 (318)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
