Airports for X-Plane

Gran Roque Island - Los Roques

Airport details

CountryVenezuela
StateFederal Dependencies
RegionSV
AirspaceMaiquetia Ctr
MunicipalityArchipiélago Los Roques
Elevation16ft (5m)
TimezoneGMT -4
Coordinates11.94583, -66.67028
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSVRS
IATA codeLRV
FAA coden/a

Communication

Los Roques Tower122.500

Runway info

Runway 07 / 25
 length824m (2703ft)
 bearing64° / 244°
 width30m (98ft)
 surfaceasphalt

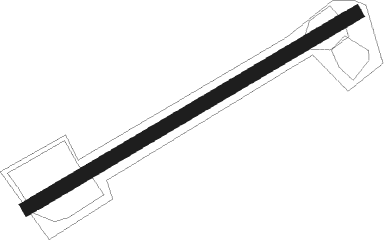

Airport layout


Parking locations

 Apron  General

Nearby beacons

codeidentifierdistbearingfrequency
LRSGRAN ROQUE VOR/DME0220°113.10
LORLA ORCHILA VOR/DME29.5106°114.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07EDGEL (14°)EDGEL
AKPAP (14mi, 339°) 3000ft
VUMUK (5mi, 20°) 3000ft
RW07GAVAL (97°)GAVAL
BITUN (10mi, 121°) 3000ft
VUMUK (5mi, 108°) 3000ft
 RNAVVUMUK 3000ft
OPSUM (4mi, 64°) 1600ft
SVRS (5mi, 64°) 59ft
DORVI (turn)
BITUN (13mi, 259°) 4000ft
BITUN (turn)
RW25ANLEG (179°)ANLEG
VAMEL (15mi, 138°) 3000ft
OSUSO (5mi, 200°) 3000ft
RW25TOROP (314°)TOROP
PAGOM (36mi, 332°) 3000ft
OSUSO (5mi, 288°) 3000ft
 RNAVOSUSO 3000ft
DIBUT (4mi, 244°) 1600ft
SVRS (5mi, 244°) 58ft
BUVUN (turn)
VAMEL (14mi, 49°) 4000ft
VAMEL (turn)
