Airports for X-Plane

Charlestown - Nevis Amory Intl

Airport details

CountrySaint Kitts and Nevis
StateNevis
RegionTK
AirspacePiarco Ctr
MunicipalitySaint James Windward
Elevation14ft (4m)
TimezoneGMT -4
Coordinates17.20564, -62.59000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTKPN
IATA codeNEV
FAA codeTKPN

Communication

Nevis Amory Intl ATIS118.000
Nevis Amory Intl Ground Control121.600
Nevis Amory Intl Tower120.500
Nevis Amory Intl Bradshaw Approach119.600
Nearby Points of Interest:
Charlestown

Runway info

Runway 10 / 28
 length1220m (4003ft)
 bearing89° / 269°
 width30m (100ft)
 surfaceasphalt
 displ threshold175m (574ft) / 0m (0ft)

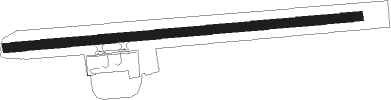

Airport layout


Parking locations

 Gate  Ramp  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
SKBL BRADSHAW (ST KIT DME9.9306°112
SKBROBERT L BRADSHAW (ST KITTS) NDB10.3300°325
ANUV C BIRD (SAINT JOHNS) VOR/DME45.596°114.50
ZDXV C BIRD (SAINT JOHNS) NDB45.693°369
PJMSAINT MAARTEN VOR/DME58.4328°113

Departure and arrival routes

Transition altitude5000ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW10
 OVISA121mi318°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10ANASU (316°)ANASU 5000ft
EPVOS (20mi, 287°) 5000ft
IKNIG (10mi, 286°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
RW10BOMET (270°)BOMET 5000ft
TABOX (26mi, 261°) 5000ft
IKNIG (10mi, 261°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
RW10GABAR (110°)GABAR 3200ft
OMONO (5mi, 155°) 3200ft
LOMDO (6mi, 146°) 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
RW10ITRUS (270°)ITRUS 5000ft
PURID (16mi, 258°) 5000ft
IKNIG (10mi, 258°) 4000ft
LOMDO (6mi, 326°) 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
RW10LOMDO (88°)LOMDO 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
RW10ZPATA (138°)ZPATA 5000ft
IMOTA (10mi, 214°) 5000ft
OMONO (4mi, 214°) 4000ft
LOMDO (6mi, 146°) 3200ft
DUSUL (5mi, 58°) 2000ft
AMENA (4mi, 94°) 2000ft
 RNAVAMENA 2000ft
SATAR (5mi, 94°) 2000ft
ENEMI (3mi, 104°) 962ft
ITRUS (13mi, 92°) 2000ft
ITRUS (turn) 4000ft
RW28ANASU (316°)ANASU 3000ft
EMLEX (10mi, 341°) 3000ft
DUVON (6mi, 341°) 2000ft
RW28BOMET (270°)BOMET 2000ft
ITRUS (10mi, 271°) 2000ft
DUVON (2mi, 270°) 2000ft
RW28GABAR (110°)GABAR 5000ft
KASAM (20mi, 69°) 5000ft
NOVAR (5mi, 69°) 4000ft
UDGEL (6mi, 146°) 2500ft
MAXVU (6mi, 146°) 2500ft
GOXAN (4mi, 141°) 2500ft
DUVON (5mi, 179°) 2000ft
RW28ZPATA (138°)ZPATA 4000ft
NOVAR (14mi, 81°) 4000ft
UDGEL (6mi, 146°) 2500ft
MAXVU (6mi, 146°) 2500ft
GOXAN (4mi, 141°) 2500ft
DUVON (5mi, 179°) 2000ft
 RNAVDUVON 2000ft
OVISA (5mi, 270°) 1200ft
UKITO (2mi, 269°) 526ft
ITRUS (9mi, 90°) 2000ft
ITRUS (turn) 4000ft
