Airports for X-Plane

Ganja

Airport details

CountryAzerbaijan
StateGanja-Dashkasan
RegionUB
AirspaceBaku Ctr
MunicipalityGanja City
Elevation1083ft (330m)
TimezoneGMT +4
Coordinates40.73889, 46.32000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUBBG
IATA codeKVD
FAA coden/a

Communication

Ganja ATIS119.250
Ganja Tower123.900
Ganja BAKU CTRL129.000

Approach frequencies

ILS-cat-IRW12111.318.00mi
ILS-cat-IRW30110.918.00mi
3° GSRW12111.318.00mi
3° GSRW30110.918.00mi

Runway info

Runway 12 / 30
 length3293m (10804ft)
 bearing121° / 301°
 width44m (144ft)
 surfaceasphalt
 blast zone60m (197ft) / 64m (210ft)

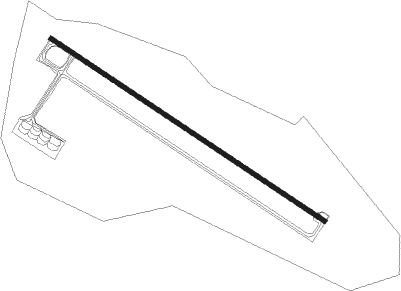

Airport layout


Taxiway locations

 A  C  D  E
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
GNDGANJA VOR/DME1.4301°115.80
EYEVLAKH NDB38.898°839
ZAQZAGATALA VOR/DME51.423°114.10
USZAGATALA NDB52.922°600
TSNDME55.2341°108.60

Departure and arrival routes

Transition altitude7000ft
Transition level9000ft
SID end pointsdistanceoutbound heading
RW12
 POLA3A35mi71°
 EDAT3A40mi99°
 PEMA2A37mi243°
 MATA2A37mi272°
 VERC1A41mi305°
RW30
 POLA2B35mi71°
 EDAT3B40mi99°
 PEMA1B37mi243°
 MATA1B37mi272°
 VERC1B41mi305°

STAR starting pointsdistanceinbound heading
RW12
 PEMA1E37.363°
 MATA1E37.292°
 BAGV1E, VERC1E, BARA1E67.2117°
 POLA1E34.5251°
 EDAT1E40.1279°
RW30
 PEMA1F37.363°
 MATA1F37.292°
 BAGV1F, BARA1F, VERC1F67.2117°
 POLA2F, POLA1F34.5251°
 EDAT1F40.1279°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAGV1EGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
BAGV1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
BARA1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
EDAT1EGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
MATA1EGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
MATA1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
PEMA1EGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
PEMA1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
POLA1EGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
POLA1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
VERC1FGNDNDBright122 (302)°> 6200ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
