Airports4XP | UHHH | Khabarovsk

Khabarovsk - Khabarovsk Novy

Airport details

Country	Russian Federation
State	Khabarovsk Krai
Region	UH
Airspace	Khabarovsk Ctr
Municipality	Khabarovsk
Elevation	244ft (74m)
Timezone	GMT +10
Coordinates	48.52806, 135.18805
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	UHHH
IATA code	KHV
FAA code	n/a

Communication

Khabarovsk Novy KHABAROVSK ATIS	124.875
Khabarovsk Novy KHABAROVSK Tower	119.300
Khabarovsk Novy KHABAROVSK Approach	125.200
Khabarovsk Novy KHABAROVSK KRUG	120.300

Approach frequencies

ILS-cat-II	RW05L	110.9	18.00mi
ILS-cat-II	RW23L	111.15	18.00mi
ILS-cat-II	RW23R	111.3	18.00mi
ILS-cat-I	RW05R	110.3	18.00mi
2.7° GS	RW23L	111.15	18.00mi
2.7° GS	RW05L	110.9	18.00mi
2.7° GS	RW23R	111.3	18.00mi
2.7° GS	RW05R	110.3	18.00mi

Nearby Points of Interest:

Category:City Duma Building (Khabarovsk)

Glory Square, Khabarovsk

Saint Innocent Church, Khabarovsk

Runway info

Runway 05L / 23R
	length	3497m (11473ft)
	bearing	54° / 234°
	width	45m (148ft)
	surface	asphalt
	blast zone	7m (23ft) / 5m (16ft)
Runway 05R / 23L
	length	3995m (13107ft)
	bearing	54° / 234°
	width	60m (197ft)
	surface	concrete
	blast zone	20m (66ft) / 27m (89ft)

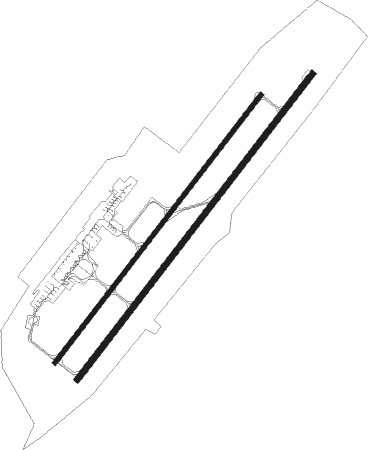

Airport layout

Taxiway locations

Parking locations

cargo

domestic

international

Nearby beacons

code	identifier	dist	bearing	frequency
HAB	KHABAROVSK VOR/DME	1.3	53°	112.30
B	NOVY (KHABAROVSK) NDB	1.6	236°	258
U	NOVY (KHABAROVSK) NDB	1.6	231°	950
H	NOVY (KHABAROVSK) NDB	1.8	56°	950
UF	NOVY (KHABAROVSK) NDB	3.1	232°	469
HI	NOVY (KHABAROVSK) NDB	3.3	55°	469
MR	VOLOCHAYEVKA NDB	24.1	273°	305
WK	DME	24.1	273°	112
IJ	HAIQING NDB	45.1	219°	394

Departure and arrival routes

Transition altitude

3196ft

Transition level

5000ft

SID end points		distance	outbound heading
RW05L
	NEBA1U, NEBA1C, NEBA1A	41mi	40°
	TOMS1A, TOMS1C, TOMS1U	38mi	56°
	TIGM1A, TIGM1C, TIGM1L, TIGM1P, TIGM1Q, TIGM1U, TIGM1W	65mi	88°
	NEBE1A, NEBE1L, NEBE1P, NEBE1Q, NEBE1U, NEBE1W, NEBE1C	65mi	98°
	SORU1A, SORU1C, SORU1L, SORU1P, SORU1U	83mi	146°
	AGUN1L, AGUN1U, AGUN1P, AGUN1C	104mi	166°
	ARDE1L, ARDE1U, ARDE1A, ARDE1C, ARDE1P	103mi	187°
	ARGU1L, ARGU1U, ARGU1C, ARGU1P, ARGU1A	44mi	219°
	RANO1A, RANO1U, RANO1C	44mi	276°
	DIDE1A, DIDE1C, DIDE1U	44mi	292°
	IVAD1U, IVAD1A, IVAD1C	44mi	308°
RW05R
	NEBA1C, NEBA1U, NEBA1A	41mi	40°
	TOMS1A, TOMS1C, TOMS1U	38mi	56°
	TIGM1W, TIGM1C, TIGM1L, TIGM1P, TIGM1Q, TIGM1U, TIGM1A	65mi	88°
	NEBE1A, NEBE1C, NEBE1L, NEBE1P, NEBE1Q, NEBE1U, NEBE1W	65mi	98°
	SORU1C, SORU1U, SORU1P, SORU1L, SORU1A	83mi	146°
	AGUN1C, AGUN1L, AGUN1P, AGUN1U	104mi	166°
	ARDE1U, ARDE1P, ARDE1L, ARDE1C, ARDE1A	103mi	187°
	ARGU1U, ARGU1A, ARGU1P, ARGU1L, ARGU1C	44mi	219°
	RANO1A, RANO1U, RANO1C	44mi	276°
	DIDE1U, DIDE1C, DIDE1A	44mi	292°
	IVAD1U, IVAD1C, IVAD1A	44mi	308°
RW23L
	NEBA3C, NEBA3L, NEBA3Q, NEBA3R, NEBA3A	41mi	40°
	TOMS3A, TOMS3L, TOMS3Q, TOMS3R, TOMS3V, TOMS3C	38mi	56°
	TIGM3C, TIGM3A, TIGM3L, TIGM3Q, TIGM3R, TIGM3T, TIGM3V	65mi	88°
	NEBE3C, NEBE3A, NEBE3Q, NEBE3R, NEBE3T, NEBE3V, NEBE3L	65mi	98°
	SORU3V, SORU3C, SORU3A, SORU3R	83mi	146°
	AGUN3C, AGUN3R, AGUN3V	104mi	166°
	ARDE3L, ARDE3R, ARDE3Q, ARDE3C, ARDE3A, ARDE3V	103mi	187°
	ARGU3R, ARGU3Q, ARGU3L, ARGU3C, ARGU3A	44mi	219°
	RANO3A, RANO3C, RANO3R	44mi	276°
	DIDE3A, DIDE3R, DIDE3C	44mi	292°
	IVAD3R, IVAD3A, IVAD3C	44mi	308°
RW23R
	NEBA3Q, NEBA3R, NEBA3A, NEBA3C, NEBA3L	41mi	40°
	TOMS3A, TOMS3C, TOMS3L, TOMS3R, TOMS3V, TOMS3Q	38mi	56°
	TIGM3V, TIGM3A, TIGM3C, TIGM3Q, TIGM3R, TIGM3T, TIGM3L	65mi	88°
	NEBE3A, NEBE3C, NEBE3L, NEBE3Q, NEBE3R, NEBE3T, NEBE3V	65mi	98°
	SORU3A, SORU3C, SORU3V, SORU3R	83mi	146°
	AGUN3C, AGUN3R, AGUN3V	104mi	166°
	ARDE3V, ARDE3A, ARDE3C, ARDE3Q, ARDE3R, ARDE3L	103mi	187°
	ARGU3R, ARGU3L, ARGU3C, ARGU3A, ARGU3Q	44mi	219°
	RANO3A, RANO3R, RANO3C	44mi	276°
	DIDE3C, DIDE3R, DIDE3A	44mi	292°
	IVAD3A, IVAD3C, IVAD3R	44mi	308°

STAR starting points		distance	inbound heading
RW05L
	ARDE6B	27.5	2°
	ARDE6C	43.1	6°
	ARDE7D	102.9	7°
	ARDE6A	28.2	11°
	ARGU6B	28.5	38°
	ARGU7D, ARGU6C	44.1	39°
	ARGU6A	28.5	41°
	RANO6A	27.8	95°
	RANO6C, RANO7D	43.7	96°
	RANO6B	27.7	98°
	DIDE6A	27.3	111°
	DIDE7D, DIDE6C	43.8	112°
	DIDE6B	27.1	114°
	IVAD6A	26.8	126°
	IVAD6C, IVAD7D	43.8	128°
	IVAD6B	26.7	131°
	NEBA6A	25.4	219°
	NEBA7D, NEBA6C	40.6	220°
	NEBA6B	25.4	221°
	TOMS6A, TOMS6B	25.3	236°
	TOMS7D, TOMS6C	37.7	236°
	TIGM6B	25.6	266°
	TIGM6C	43.0	268°
	TIGM7D, TIGM7E	64.7	268°
	TIGM6A	25.7	270°
	NEBE6B	25.9	275°
	NEBE6C	43.0	277°
	NEBE7E, NEBE7D	64.7	278°
	NEBE6A	26.0	280°
	SORU6B	27.3	320°
	SORU6C	43.1	324°
	SORU7D	82.9	326°
	AGUN6B	27.5	329°
	SORU6A, AGUN6A	27.6	330°
	AGUN6C	43.1	344°
	AGUN7D	103.6	346°
RW05R
	ARDE7A	43.1	6°
	ARDE8D, ARDE2B, ARDE2A	102.9	7°
	ARGU2A, ARGU2B, ARGU8D, ARGU7A	44.1	39°
	RANO8D, RANO7A, RANO2B, RANO2A	43.7	96°
	DIDE7A, DIDE8D, DIDE2B, DIDE2A	43.8	112°
	IVAD2A, IVAD2B, IVAD7A, IVAD8D	43.8	128°
	NEBA2A, NEBA8D, NEBA7A, NEBA2B	40.6	220°
	TOMS8D, TOMS7A, TOMS2B, TOMS2A	37.7	236°
	TIGM2A, TIGM2B, TIGM8D, TIGM8E	64.7	268°
	TIGM7A	43.0	268°
	NEBE7A	43.0	277°
	NEBE8E, NEBE2A, NEBE8D, NEBE2B	64.7	278°
	SORU7A	43.1	324°
	SORU2A, SORU8D, SORU2B	82.9	326°
	AGUN7A	43.1	344°
	AGUN2B, AGUN2A, AGUN8D	103.6	346°
RW23L
	ARDE7A	43.1	6°
	ARDE8F, ARDE4B, ARDE4A, ARDE8G	102.9	7°
	ARGU4B, ARGU7A, ARGU8F, ARGU8G, ARGU4A	44.1	39°
	RANO4A, RANO4B, RANO7A, RANO8F, RANO8G	43.7	96°
	DIDE8G, DIDE8F, DIDE7A, DIDE4B, DIDE4A	43.8	112°
	IVAD4A, IVAD4B, IVAD7A, IVAD8F, IVAD8G	43.8	128°
	NEBA8G, NEBA7A, NEBA4B, NEBA4A	40.6	220°
	TOMS4A, TOMS4B, TOMS8G, TOMS7A	37.7	236°
	TIGM4B, TIGM8F, TIGM8G, TIGM4A	64.7	268°
	TIGM7A	43.0	268°
	NEBE7A	43.0	277°
	NEBE8G, NEBE4B, NEBE8F, NEBE4A	64.7	278°
	SORU7A	43.1	324°
	SORU8G, SORU8F, SORU4B, SORU4A	82.9	326°
	AGUN7A	43.1	344°
	AGUN8G, AGUN8F, AGUN4B, AGUN4A	103.6	346°
RW23R
	ARDE6B	27.5	2°
	ARDE6C	43.1	6°
	ARDE7F, ARDE7G	102.9	7°
	ARDE6A	28.2	11°
	ARGU6B	28.5	38°
	ARGU6C, ARGU7G, ARGU7F	44.1	39°
	ARGU6A	28.5	41°
	RANO6A	27.8	95°
	RANO7F, RANO7G, RANO6C	43.7	96°
	RANO6B	27.7	98°
	DIDE6A	27.3	111°
	DIDE6C, DIDE7F, DIDE7G	43.8	112°
	DIDE6B	27.1	114°
	IVAD6A	26.8	126°
	IVAD6C, IVAD7F, IVAD7G	43.8	128°
	IVAD6B	26.7	131°
	NEBA6A	25.4	219°
	NEBA6C, NEBA7G	40.6	220°
	NEBA6B	25.4	221°
	TOMS6C, TOMS7G	37.7	236°
	TOMS6B, TOMS6A	25.3	236°
	TIGM6B	25.6	266°
	TIGM6C	43.0	268°
	TIGM7G, TIGM7F	64.7	268°
	TIGM6A	25.7	270°
	NEBE6B	25.9	275°
	NEBE6C	43.0	277°
	NEBE7G, NEBE7F	64.7	278°
	NEBE6A	26.0	280°
	SORU6B	27.3	320°
	SORU6C	43.1	324°
	SORU7G, SORU7F	82.9	326°
	AGUN6B	27.5	329°
	SORU6A, AGUN6A	27.6	330°
	AGUN6C	43.1	344°
	AGUN7F, AGUN7G	103.6	346°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW05L	HH007 (25°)	HH007 2200ft HH010 (6mi, 301°) 2200ft
RW05L	HH008 (54°)	HH008 5320ft HH010 (6mi, 53°) 2200ft
RW05L	HH009 (75°)	HH009 2200ft HH010 (6mi, 121°) 2200ft
	RNAV	HH010 2200ft HH011 (5mi, 54°) 2200ft UHHH (8mi, 54°) 283ft (7088mi, 250°) 1220ft HH110 (7079mi, 70°) 2200ft HH009 (18mi, 220°) 2200ft
RW05R	HH207 (24°)	HH207 2200ft HH210 (6mi, 301°) 2200ft
RW05R	HH208 (53°)	HH208 5320ft HH210 (6mi, 53°) 2200ft
RW05R	HH209 (74°)	HH209 2200ft HH210 (6mi, 121°) 2200ft
	RNAV	HH210 2200ft HH211 (5mi, 54°) 2200ft UHHH (8mi, 53°) 284ft (7088mi, 250°) 1220ft HH110 (7079mi, 70°) 2200ft HH209 (18mi, 220°) 2200ft
RW23L	HH202 (234°)	HH202 2210ft HH204 (6mi, 234°) 2210ft
RW23L	HH203 (205°)	HH203 2210ft HH204 (6mi, 121°) 2210ft
	RNAV	HH204 2210ft HH205 (5mi, 234°) 2210ft UHHH (8mi, 234°) 291ft HH221 (8mi, 233°) HH203 (21mi, 36°) 2210ft
RW23R	HH002 (234°)	HH002 2200ft HH004 (6mi, 234°) 2200ft
RW23R	HH003 (204°)	HH003 2200ft HH004 (6mi, 121°) 2200ft
	RNAV	HH004 2200ft HH005 (5mi, 234°) 2200ft UHHH (8mi, 233°) 283ft HH021 (8mi, 234°) HH003 (21mi, 36°) 2200ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AGUN2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
AGUN2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
AGUN4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
AGUN4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
AGUN6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
AGUN6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
AGUN6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
AGUN7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARDE2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
ARDE2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
ARDE4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
ARDE4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
ARDE6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARDE6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARDE6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARDE7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARGU2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
ARGU2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
ARGU4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
ARGU4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
ARGU6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARGU6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARGU6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
ARGU7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
DIDE2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
DIDE2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
DIDE4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
DIDE4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
DIDE6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
DIDE6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
DIDE6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
DIDE7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
DIDE7G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
DIDE8G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
IVAD2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
IVAD2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
IVAD4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
IVAD4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
IVAD6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
IVAD6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
IVAD6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
IVAD7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
IVAD7G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
IVAD8G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
NEBA2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
NEBA2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
NEBA4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
NEBA4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
NEBA6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBA6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBA6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBA7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBA7D	HH013	VHF	right	18 (198)°	> 6000ft	1.0min timed	185
NEBA8D	HH013	VHF	right	18 (198)°	> 6000ft	1.0min timed	185
NEBE2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
NEBE2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
NEBE4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
NEBE4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
NEBE6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBE6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBE6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
NEBE7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
RANO2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
RANO2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
RANO4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
RANO4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
RANO6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
RANO6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
RANO6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
RANO7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
RANO7G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
RANO8G	HH108	VHF	left	257 (77)°	> 6000ft	1.0min timed	185
SORU2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
SORU2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
SORU4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
SORU4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
SORU6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
SORU6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
SORU6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
SORU7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TIGM2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
TIGM2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
TIGM4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
TIGM4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
TIGM6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TIGM6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TIGM6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TIGM7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TOMS2A	UF	FIX	left	234 (54)°	> 6000ft	1.0min timed	185
TOMS2B	U	VHF	right	161 (341)°	4000ft - 4990ft	1.0min timed	230
TOMS4A	HI	FIX	right	54 (234)°	> 6000ft	1.0min timed	185
TOMS4B	H	VHF	right	95 (275)°	7000ft - 8000ft	1.0min timed	185
TOMS6A	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TOMS6B	B	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TOMS6C	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TOMS7A	HAB	NDB	left	235 (55)°	> 6000ft	1.0min timed	185
TOMS7D	HH013	VHF	right	18 (198)°	> 6000ft	1.0min timed	185
TOMS8D	HH013	VHF	right	18 (198)°	> 6000ft	1.0min timed	185
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.

stolport aviation airport apron field airstrip train station propeller plane drome railway station passenger helicopters port airliner taxi rail transport landing area concrete pilot warfare airport

Airports for X-Plane
