Airports for X-Plane

Pevek

Airport details

CountryRussian Federation
StateChukotka Autonomous Okrug
RegionUH
MunicipalityPevek urban district
Elevation11ft (3m)
TimezoneGMT +12
Coordinates69.78333, 170.59500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUHMP
IATA codePWE
FAA coden/a

Communication

Pevek Pevek - Meteo126.600
Pevek Pevek - Krug124.200

Approach frequencies

ILS-cat-IRW35108.318.00mi
2.8° GSRW35108.318.00mi

Runway info

Runway 17 / 35
 length2494m (8182ft)
 bearing146° / 326°
 width45m (149ft)
 surfaceconcrete
 blast zone48m (157ft) / 0m (0ft)

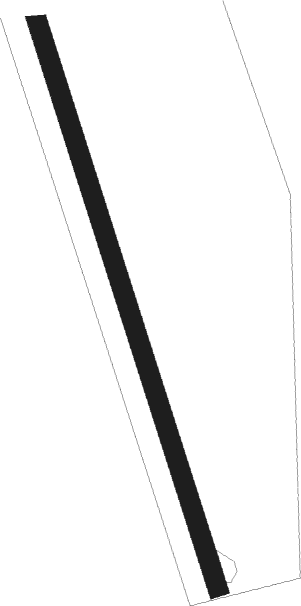

Airport layout


Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
PWKPEVEK VOR/DME1.1351°110
BPEVEK NDB1.2144°560
PKPEVEK NDB1.2330°560
BMPEVEK NDB2.9144°272

Departure and arrival routes

Transition altitude5587ft
SID end pointsdistanceoutbound heading
RW17
 RINA1B23mi75°
 OLEB1P, OLEB1D, OLEB1A22mi82°
 ZLOT1B23mi90°
 NEKO1P, NEKO1D, NEKO1A25mi94°
 ARBO1P, ARBO1D, ARBO1Z, ARBO1A, ARBO1Y31mi120°
 GARI1B24mi152°
 DINO1P, DINO1D, DINO1A, DINO1Z37mi183°
 PUAN1B24mi241°
 MAKU1P, MAKU1D, MAKU1A47mi249°
 RESB1P, RESB1D, RESB1A49mi265°
 SEDU1B24mi274°
 BALI1P, BALI1D, BALI1A42mi276°
 SEMN1B17mi353°
RW35
 RINA1A23mi75°
 OLEB1C, OLEB1N, OLEB1E, OLEB1B22mi82°
 ZLOT1A23mi90°
 NEKO1C, NEKO1E, NEKO1N, NEKO1B25mi94°
 ARBO1B, ARBO1N, ARBO1E, ARBO1C31mi120°
 GARI1A24mi152°
 DINO1B, DINO1N, DINO1C, DINO1E37mi183°
 PUAN1A24mi241°
 MAKU1E, MAKU1B, MAKU1C, MAKU1N47mi249°
 RESB1N, RESB1B, RESB1C, RESB1E49mi265°
 SEDU1A24mi274°
 BALI1E, BALI1N, BALI1B, BALI1C42mi276°
 SEMN1A17mi353°

STAR starting pointsdistanceinbound heading
ALL
 DINO1M36.63°
 RESB1M48.985°
 BALI1M42.396°
 OLEB1M21.9262°
 NEKO1M24.7274°
 ARBO1M31.1300°
RW17
 DINO1K, DINO1F36.63°
 PUAN1H24.261°
 MAKU1M, MAKU1K, MAKU1F46.869°
 RESB1K, RESB1F48.985°
 SEDU1H24.294°
 BALI1K, BALI1F42.396°
 SEMN1H17.3173°
 RINA1H22.8255°
 OLEB1F, OLEB1K21.9262°
 ZLOT1H23.1270°
 NEKO1K, NEKO1F24.7274°
 ARBO1K, ARBO1F31.1300°
 GARI1H24.2332°
RW35
 DINO1L, DINO1J, DINO1G36.63°
 PUAN1H24.261°
 MAKU1G, MAKU1L, MAKU1J46.869°
 RESB1G, RESB1L, RESB1J48.985°
 SEDU1H24.294°
 BALI1G, BALI1L, BALI1J42.396°
 SEMN1H17.3173°
 RINA1H22.8255°
 OLEB1L, OLEB1J, OLEB1G21.9262°
 ZLOT1H23.1270°
 NEKO1L, NEKO1J, NEKO1G24.7274°
 ARBO1G, ARBO1J, ARBO1L31.1300°
 GARI1H24.2332°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17MP003 (114°)MP003 4610ft
MP002 (6mi, 85°) 3290ft
RW17MP004 (196°)MP004 4610ft
MP002 (6mi, 254°) 3290ft
 RNAVMP002 3290ft
MP001 (5mi, 146°) 2310ft
UHMP (8mi, 146°) 57ft
(6602mi, 248°) 410ft
MP118 (6611mi, 68°)
MP005 (7mi, 265°)
MP006 (8mi, 280°)
MP003 (18mi, 32°) 4610ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARBO1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
ARBO1GBNDBleft235 (55)°> 6000ft1.0min timed185
ARBO1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
ARBO1LMP009VHFright234 (54)°3130ft - 10000ft1.0min timed215
ARBO1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
BALI1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
BALI1GBNDBleft235 (55)°> 6000ft1.0min timed185
BALI1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
BALI1KMP003VHFright259 (79)°2800ft - 14000ft1.0min timed230
BALI1LMP009VHFright234 (54)°3130ft - 10000ft1.0min timed215
BALI1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
DINO1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
DINO1GBNDBleft235 (55)°> 6000ft1.0min timed185
DINO1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
DINO1KMP003VHFright259 (79)°2800ft - 14000ft1.0min timed230
DINO1LMP009VHFright234 (54)°3130ft - 10000ft1.0min timed215
DINO1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
GARI1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
MAKU1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
MAKU1GBNDBleft235 (55)°> 6000ft1.0min timed185
MAKU1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
MAKU1KMP003VHFright259 (79)°2800ft - 14000ft1.0min timed230
MAKU1LMP009VHFright234 (54)°3130ft - 10000ft1.0min timed215
MAKU1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
NEKO1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
NEKO1GBNDBleft235 (55)°> 6000ft1.0min timed185
NEKO1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
NEKO1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
OLEB1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
OLEB1GBNDBleft235 (55)°> 6000ft1.0min timed185
OLEB1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
OLEB1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
PUAN1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
RESB1FPKFIXright350 (170)°4440ft - 10000ft1.0min timed210
RESB1GBNDBleft235 (55)°> 6000ft1.0min timed185
RESB1JBMFIXleft170 (350)°4770ft - 14000ft1.0min timed280
RESB1KMP003VHFright259 (79)°2800ft - 14000ft1.0min timed230
RESB1LMP009VHFright234 (54)°3130ft - 10000ft1.0min timed215
RESB1MPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
RINA1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
SEDU1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
SEMN1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
ZLOT1HPWKNDBright336 (156)°4440ft - 10000ft1.0min timed215
*) magnetic outbound (inbound) holding course
