Airports for X-Plane

Kunashir Island - Mendeleyevo

Airport details

CountryRussian Federation
StateSakhalin Oblast
RegionUH
AirspaceKhabarovsk Ctr
MunicipalityYuzhno-Kurilsky District
Elevation708ft (216m)
TimezoneGMT +11
Coordinates43.96111, 145.68500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUHSM
IATA codeDEE
FAA coden/a

Communication

Mendeleyevo Tower128.000

Approach frequencies

ILS-cat-IRW01110.918.00mi
2.6° GSRW01110.918.00mi
Nearby Points of Interest:
Mendeleyeva
-
Notsuke Peninsula

Runway info

Runway 01 / 19
 length2049m (6722ft)
 bearing8° / 188°
 width36m (118ft)
 surfaceconcrete
 blast zone30m (98ft) / 30m (98ft)

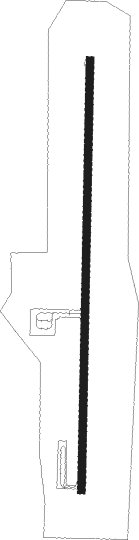

Airport layout


Taxiway locations

 A
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
MNWMENDELEYEVO VOR/DME0.8187°114.50
BMENDELEYEVO (YUZHNO-KURILSK) NDB1188°255
BFMENDELEYEVO (YUZHNO-KURILSK) NDB2.8187°525
NSENAKASHIBETSU VOR/DME39.3242°111.45

Departure and arrival routes

Transition altitude5630ft
SID end pointsdistanceoutbound heading
RW01
 NIBO1A, NIBO1B, NIBO1E, NIBON125mi61°
RW19
 NIBO1C, NIBO1F, NIBON325mi61°

STAR starting pointsdistanceinbound heading
RW01
 NIBO1G, NIBO1H, NIBO1K, NIBO2A, NIBO2B25.2241°
RW19
 NIBO4B, NIBO4A, NIBO1J25.2241°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01SM022 (330°)SM022 5210ft
SM021 (6mi, 289°) 2590ft
 RNAVSM021 2590ft
SM020 (4mi, 7°) 1930ft
SM017 (3mi, 7°) 1061ft
SM018 (5mi, 353°)
SM008 (6mi, 207°)
SM023 (9mi, 107°)
SM022 (6mi, 193°) 5210ft
RW19NIBON (241°)NIBON 7280ft
SM011 (4mi, 289°)
SM010 (6mi, 274°) 3500ft
 RNAVSM010 3500ft
SM024 (5mi, 187°) 2350ft
UHSM (6mi, 187°) 758ft
SM025 (7mi, 187°)
SM012 (14mi, 61°)
NIBON (7mi, 8°) 7280ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
NIBO1GMNWNDBleft200 (20)°4160ft - 7600ft1.0min timed175
NIBO1JMNWNDBleft200 (20)°4160ft - 7600ft1.0min timed175
NIBO1KNIBONVHFleft60 (240)°7180ft - 10000ft1.0min timed230
NIBO1KSM022VHFright124 (304)°2920ft - 10000ft1.0min timed230
NIBO2ABFFIXleft69 (249)°4060ft - 7600ft1.0min timed210
NIBO4ABFFIXleft69 (249)°4060ft - 7600ft1.0min timed210
*) magnetic outbound (inbound) holding course
