Airports for X-Plane

Irkutsk

Airport details

CountryRussian Federation
StateIrkutsk Oblast
RegionUI
AirspaceIrkutsk Ctr
MunicipalityIrkutsk
Elevation1672ft (510m)
TimezoneGMT +8
Coordinates52.26645, 104.35617
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUIII
IATA codeIKT
FAA coden/a

Communication

Irkutsk ATIS126.900
Irkutsk ATIS124.850
Irkutsk TAXIING121.700
Irkutsk Tower118.100
Irkutsk Approach125.200
Irkutsk Approach124.000

Approach frequencies

ILS-cat-IIRW12111.318.00mi
ILS-cat-IIRW30110.318.00mi
3.3° GSRW12111.318.00mi
3.3° GSRW30110.318.00mi

Runway info

Runway 12 / 30
 length3559m (11677ft)
 bearing105° / 285°
 width45m (148ft)
 surfaceconcrete
 displ threshold400m (1312ft) / 398m (1306ft)
 blast zone81m (266ft) / 75m (246ft)

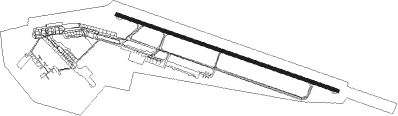

Airport layout


Taxiway locations

 12  13  13A  14  4  5  8  9
Parking locations

 Appron  Piston  Ramp  S10  S11  S12  S13  S14
 S15  S16  S17  S18  S19  S20  S9  stand

Nearby beacons

codeidentifierdistbearingfrequency
CIRKUTSK NDB0.637°545
CNIRKUTSK NDB1.5302°514
IIRKUTSK NDB2.696°545
IKTIRKUTSK VOR/DME2.697°113
IRIRKUTSK NDB4.2100°514
NHNIKOLSK NDB29.112°699
NKLDME29.112°114.30
KAOLZONY NDB52.151°
LZNDME52.151°114.60

Departure and arrival routes

Transition altitude5295ft
Transition level7000ft
SID end pointsdistanceoutbound heading
RW12
 KA4C, KA1D, KA1E52mi51°
 GOLO4C, GOLO1E, GOLO1D36mi89°
 IDEN4C, IDEN1E, IDEN1D51mi131°
 OSKE4C, OSKE1E, OSKE1D50mi163°
 ULTU1E, ULTU1D, ULTU4C41mi231°
 BD2E, BD4C, BD1E, BD1D, BD4Z, BD2D44mi279°
 BOGR4C, BOGR1D, BOGR1E57mi327°
RW30
 KA4D, KA4F52mi51°
 GOLO4D, GOLO4F36mi89°
 IDEN4D, IDEN4F51mi131°
 OSKE4Z, OSKE4F, OSKE4D50mi163°
 ULTU4D, ULTU4F, ULTU4Z41mi231°
 BD4W, BD4D, BD4F44mi279°
 BOGR4F, BOGR4D57mi327°

STAR starting pointsdistanceinbound heading
RW12
 ULTU1C, ULTU4A41.351°
 BD1A, BD4A, BD1C43.899°
 KA1A, KA1C, KA4A52.1231°
 USON2A, USON1C, USON4A, USON1A41.5282°
 IDEN1A, IDEN4A, IDEN1C, IDEN2A, IDEN2C, IDEN3C51.0311°
 OSKE1C, OSKE1A, OSKE4A, OSKE3C, OSKE2C, OSKE2A49.7343°
RW30
 ULTU4B, ULTU4L, ULTU1B41.351°
 BD4L, BD1B, BD4B43.899°
 KA1B, KA4L, KA4Z, KA4B52.1231°
 USON1B, USON4B, USON4L41.5282°
 IDEN1B, IDEN4L, IDEN4B51.0311°
 OSKE4B, OSKE1B, OSKE4L49.7343°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12II003 (87°)II003 4550ft
II002 (6mi, 35°) 4550ft
RW12II004 (106°)II004 4550ft
II002 (6mi, 105°) 4550ft
RW12II005 (133°)II005 4550ft
II002 (6mi, 215°) 4550ft
 RNAVII002 4550ft
II001 (5mi, 105°) 3560ft
UIII (5mi, 110°) 1637ft
II006 (5mi, 100°)
II007 (11mi, 314°)
II005 (6mi, 285°) 4550ft
RW30II010 (269°)II010 4630ft
II009 (6mi, 215°) 4630ft
RW30II011 (301°)II011 4630ft
II009 (6mi, 35°) 4630ft
RW30II032 (283°)II032
II009 (12mi, 282°) 4630ft
 RNAVII009 4630ft
II008 (5mi, 285°) 4300ft
31THR (4mi, 285°) 2810ft
16THR (1mi, 285°) 2290ft
UIII (4mi, 279°) 1724ft
II014 (1mi, 308°)
II015 (10mi, 82°)
II010 (7mi, 105°) 4630ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BD1ABDFIXleft286 (106)°1.0min timedICAO rules
BD1BBDFIXleft286 (106)°1.0min timedICAO rules
BD1CBDFIXleft286 (106)°1.0min timedICAO rules
BD4ABDFIXleft286 (106)°1.0min timedICAO rules
BD4BBDFIXleft286 (106)°1.0min timedICAO rules
BD4LBDFIXleft286 (106)°1.0min timedICAO rules
BD4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
IDEN4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
KA4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
KA4ZNHFIXleft5 (185)°1.0min timedICAO rules
NH1ANHFIXleft5 (185)°1.0min timedICAO rules
NH1BNHFIXleft5 (185)°1.0min timedICAO rules
NH1CNHFIXleft5 (185)°1.0min timedICAO rules
NH4ANHFIXleft5 (185)°1.0min timedICAO rules
NH4BNHFIXleft5 (185)°1.0min timedICAO rules
NH4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
NH4LNHFIXleft5 (185)°1.0min timedICAO rules
OSKE4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
ULTU4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
USON4LIRFIXright117 (297)°4320ft - 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
