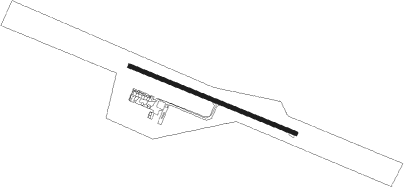

Ust-kut
Airport details
| Country | Russian Federation |
| State | Irkutsk Oblast |
| Region | UI |
| Airspace | Irkutsk Ctr |
| Municipality | Усть-Кутское городское поселение |
| Elevation | 2187ft (667m) |
| Timezone | GMT +8 |
| Coordinates | 56.85629, 105.71910 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | UITT |
| IATA code | UKX |
| FAA code | n/a |
Communication
| Ust-Kut Ust-Kut Meteo | 127.400 |
| Ust-Kut Ust-Kut Krug | 118.300 |
| Ust-Kut Ust-Kut Podhod | 120.800 |
Approach frequencies
| ILS-cat-I | RW30 | 108.9 | 18.00mi |
| 2.6° GS | RW30 | 108.9 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| C | UST-KUT NDB | 1.4 | 100° | 670 |
| CI | UST-KUT NDB | 3.1 | 102° | 326 |
Departure and arrival routes
| Transition altitude | 4485ft |
| Transition level | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW12 | |||
| RUDE2A, OMAK2A | 98mi | 37° | |
| ATME2A | 184mi | 82° | |
| ERMI2A | 70mi | 107° | |
| ABME2A | 58mi | 193° | |
| BERI2A | 54mi | 257° | |
| NONL2A | 126mi | 293° | |
| RW30 | |||
| OMAK2B, RUDE2B | 98mi | 37° | |
| ATME2B | 184mi | 82° | |
| ERMI2B | 70mi | 107° | |
| ABME2B | 58mi | 193° | |
| BERI2B | 54mi | 257° | |
| NONL2B | 126mi | 293° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ABME2C | 57.9 | 13° | |
| BERI2C | 54.4 | 77° | |
| NONL2C | 126.0 | 113° | |
| OMAK2C | 27.0 | 191° | |
| RUDE2C | 98.2 | 217° | |
| ATME2C | 184.4 | 262° | |
| ERMI2C | 70.1 | 287° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ABME2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| ATME2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| BERI2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| ERMI2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| KUDU2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| NONL2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| OMAK2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| RUDE2C | CI | FIX | left | 121 (301)° | 1.0min timed | 230 | |
| *) magnetic outbound (inbound) holding course | |||||||
