Airports for X-Plane

Kharkiv - Osnova Intl

Airport details

CountryUkraine
StateKharkiv Oblast
RegionUK
AirspaceDnipro Ctr
MunicipalityKharkiv
Elevation505ft (154m)
TimezoneGMT +2
Coordinates49.92298, 36.28642
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUKHH
IATA codeHRK
FAA coden/a

Communication

OSNOVA INTL KHARKIV ATIS127.600
OSNOVA INTL KHARKIV Ground Control119.000
OSNOVA INTL KHARKIV Tower118.100
OSNOVA INTL KHARKIV RADAR118.100
OSNOVA INTL KHARKIV RADAR123.700

Approach frequencies

ILS-cat-IIRW25111.718.00mi
ILS-cat-IIRW07111.118.00mi
3° GSRW25111.718.00mi
3° GSRW07111.118.00mi
Nearby Points of Interest:
Bust of Pushkin in Kharkiv
-
Fire station №3 in Kharkiv
-
Derzhprom

Runway info

Runway 07 / 25
 length2492m (8176ft)
 bearing85° / 265°
 width50m (164ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)
Runway 08 / 26
 length1201m (3940ft)
 bearing90° / 270°
 width50m (165ft)
 surfaceconcrete
 blast zone0m (0ft) / 40m (131ft)

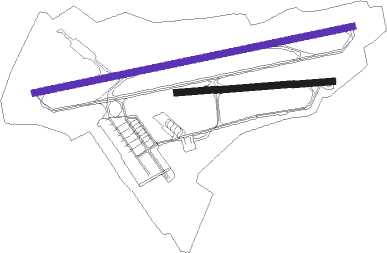

Airport layout - runway 07 / 25


Taxiway locations

 A  C

Nearby beacons

codeidentifierdistbearingfrequency
KHRKHARKIV VOR/DME0.334°116.50
BXBELGOROD NDB44.328°718
BBELGOROD NDB44.525°350
BLBELGOROD VOR/DME44.624°110
ABELGOROD NDB4521°350

Departure and arrival routes

Transition altitude10007ft
SID end pointsdistanceoutbound heading
RW07
 NALE4T, NALE3E25mi27°
 KUBO3Q, KUBO4T32mi54°
 ABUG3T, ABUG3E26mi115°
 LUZK1E, LUZK1T38mi179°
 ROKO2T, ROKO2E46mi237°
 ORTE1T, ORTE1E52mi260°
 UDVI1E, UDVI1T43mi277°
 MODE1T, MODE1E43mi294°
RW25
 NALE4F, NALE3J25mi27°
 KUBO4E, KUBO3R32mi54°
 ABUG3F, ABUG3J26mi115°
 LUZK1J, LUZK1F38mi179°
 ROKO2J, ROKO2F46mi237°
 ORTE1J, ORTE1F52mi260°
 UDVI1F, UDVI1J43mi277°
 MODE1J, MODE1F43mi294°

STAR starting pointsdistanceinbound heading
RW07
 ROKO2K, ROKO2G45.757°
 ORTE1K, ORTE1G51.780°
 UDVI1K, UDVI1G43.297°
 MODE1K, MODE1G43.2114°
 FORM3K, FORM4G34.4126°
 KUBO4G, KUBO3X31.5234°
 LUZK1G, LUZK1K37.9359°
RW25
 ROKO1M, ROKO2H, ROKO2V45.757°
 ORTE1M, ORTE1H, ORTE1V51.780°
 UDVI1H, UDVI1V43.297°
 MODE1H, MODE1V43.2114°
 FORM4H, FORM3V34.4126°
 KUBO4H, KUBO3V31.5234°
 LUZK1V, LUZK1M, LUZK1H37.9359°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
FORM3VHH411VHFright343 (163)°> 2960ft1.0min timed250
FORM3VHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
FORM4GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
FORM4HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
KUBO3VHH411VHFright343 (163)°> 2960ft1.0min timed250
KUBO4GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
KUBO4HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
LUZK1GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
LUZK1HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
LUZK1MHH411VHFright343 (163)°> 2960ft1.0min timed250
LUZK1MHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
LUZK1MHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
LUZK1VHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
MODE1GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
MODE1HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
MODE1VHH411VHFright343 (163)°> 2960ft1.0min timed250
MODE1VHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
ORTE1GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
ORTE1HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
ORTE1MHH411VHFright343 (163)°> 2960ft1.0min timed250
ORTE1MHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
ORTE1MHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
ORTE1VHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
ROKO1MHH411VHFright343 (163)°> 2960ft1.0min timed250
ROKO1MHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
ROKO1MHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
ROKO1MROKOXVHFright210 (30)°> 7060ft1.0min timedICAO rules
ROKO2GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
ROKO2HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
ROKO2KROKOXVHFright210 (30)°> 7060ft1.0min timedICAO rules
ROKO2VHHS02VHFright163 (343)°> 2630ft1.0min timedICAO rules
ROKO2VROKOXVHFright210 (30)°> 7060ft1.0min timedICAO rules
UDVI1GKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
UDVI1HKHRNDBright248 (68)°> 2630ft1.0min timedICAO rules
UDVI1VHH411VHFright343 (163)°> 2960ft1.0min timed250
UDVI1VHHN02VHFleft253 (73)°> 2960ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
