Rivne - Rivne Intl

Airport details

CountryUkraine
StateRivne Oblast
RegionUK
AirspaceLviv Ctr
MunicipalityVelyka Omeliana Rural Hromada
Elevation753ft (230m)
TimezoneGMT +2
Coordinates50.60833, 26.13972
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUKLR
IATA codeRWN
FAA coden/a

Communication

RIVNE INTL Tower123.700

Runway info

Runway 11 / 29
 length2620m (8596ft)
 bearing109° / 289°
 width42m (138ft)
 surfaceconcrete
 blast zone49m (161ft) / 51m (167ft)
Runway 05 / 23
 length654m (2146ft)
 bearing67° / 247°
 width20m (66ft)
 surfaceasphalt
 displ threshold20m (66ft) / 86m (282ft)

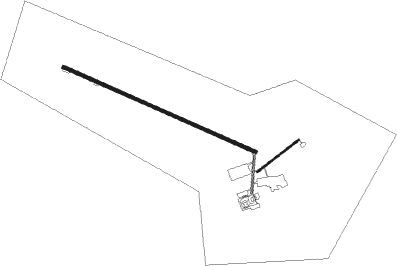

Airport layout


Taxiway locations

Nearby beacons

codeidentifierdistbearingfrequency
RVNDME0.285°114.65
RDRIVNE NDB1.4109°678

Departure and arrival routes

Transition altitude10007ft
SID end pointsdistanceoutbound heading
RW11
 DORE4K42mi98°
 GIDN4K30mi192°
 VABO4K52mi276°
 RELN4K20mi350°
RW29
 DORE4M42mi98°
 GIDN4M30mi192°
 VABO4M52mi276°
 RELN4M20mi350°

STAR starting pointsdistanceinbound heading
RW11
 GIDN4P29.512°
 VABO4P51.996°
 RELN4P19.8170°
 DORE4P41.6278°
RW29
 GIDN4Q29.512°
 VABO4Q51.996°
 RELN4Q19.8170°
 DORE4Q41.6278°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DORE4PRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
DORE4QRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
GIDN4PRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
GIDN4QRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
RELN4PRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
RELN4QRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
VABO4PRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
VABO4QRDFIXleft112 (292)°> 2630ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
