Airports for X-Plane

Murmansk

Airport details

CountryRussian Federation
StateMurmansk Oblast
RegionUL
MunicipalityMurmashi
Elevation266ft (81m)
TimezoneGMT +3
Coordinates68.78669, 32.74826
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeULMM
IATA codeMMK
FAA coden/a

Communication

Murmansk ATIS127.400
Murmansk Tower120.300
Murmansk Departure120.300

Approach frequencies

ILS-cat-IRW13110.318.00mi
ILS-cat-IRW31108.518.00mi
3° GSRW13110.318.00mi
3° GSRW31108.518.00mi
Nearby Points of Interest:
Nikolai M. Knipovich Polar Research Institute of Marine Fisheries and Oceanography

Runway info

Runway 13 / 31
 length2493m (8179ft)
 bearing118° / 298°
 width42m (138ft)
 surfaceasphalt
 blast zone52m (171ft) / 52m (171ft)

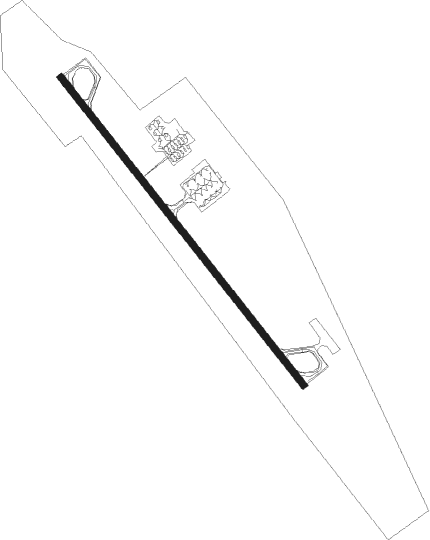

Airport layout


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
PMURMANSK NDB0.9293°
RMURMANSK NDB1.5122°
PFMURMANSK NDB2.7296°635
RDMURMANSK NDB3120°635

Departure and arrival routes

Transition altitude3219ft
SID end pointsdistanceoutbound heading
RW13
 LOPR1S, LOPR1N, LOPR1K, LOPR1E13mi109°
 ASGO1N, ASGO1K, ASGO1E16mi176°
 PELO1E, PELO1N23mi260°
 ULME1E, ULME1N12mi308°
RW31
 LOPR1P, LOPR1G13mi109°
 ASGO1P, ASGO1G16mi176°
 PELO1G, PELO1P23mi260°
 ULME1J, ULME1P12mi308°

STAR starting pointsdistanceinbound heading
RW13
 PELO1L, PELO1A, PELO1B23.480°
 ULME1L, ULME1B11.9128°
 LOPR1A, LOPR1B, LOPR1L13.4289°
 ASGO1B, ASGO1L16.2356°
RW31
 PELO1M, PELO1C, PELO1H23.480°
 ULME1M, ULME1H11.9128°
 LOPR1M, LOPR1H, LOPR1C13.4289°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13MM313 (100°)MM313 2400ft
MM213 (6mi, 76°) 2400ft
 RNAVMM213 2400ft
MM013 (4mi, 118°) 2000ft
30THR (2mi, 118°) 1250ft
ULMM (3mi, 117°) 292ft
MM129 (5mi, 120°)
MM413 (12mi, 280°)
MM313 (5mi, 298°) 2400ft
RW31-YASGOR (356°)ASGOR 3000ft
MM231 (9mi, 67°) 2800ft
 RNAVMM231 2800ft
MM311 (5mi, 299°) 2000ft
20THR (3mi, 299°) 950ft
ULMM (3mi, 300°) 317ft
(4341mi, 205°) 1400ft
MM431 (4330mi, 25°)
ASGOR (6mi, 119°) 3000ft
RW31-ZASGOR (356°)ASGOR
MM231 (9mi, 67°) 2800ft
 RNAVMM231 2800ft
MM311 (5mi, 299°) 2000ft
20THR (3mi, 299°) 950ft
ULMM (3mi, 300°) 317ft
(4341mi, 205°) 1400ft
MM431 (4330mi, 25°)
ASGOR (6mi, 119°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASGO1APFIXleft9 (189)°> 1960ft1.0min timedICAO rules
ASGO1BPFFIXleft247 (67)°1.0min timedICAO rules
ASGO1CRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
ASGO1HRDFIXright191 (11)°1.0min timed240
ASGO1LMM313VHFleft130 (310)°> 2400ft1.0min timedICAO rules
EKLE1APFIXleft9 (189)°> 1960ft1.0min timedICAO rules
EKLE1BPFFIXleft247 (67)°1.0min timedICAO rules
EKLE1CRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
EKLE1HRDFIXright191 (11)°1.0min timed240
EKLE1LMM313VHFleft130 (310)°> 2400ft1.0min timedICAO rules
EKLE1MASGORVHFleft240 (60)°> 3000ft1.0min timedICAO rules
LOPR1APFIXleft9 (189)°> 1960ft1.0min timedICAO rules
LOPR1BPFFIXleft247 (67)°1.0min timedICAO rules
LOPR1CRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
LOPR1HRDFIXright191 (11)°1.0min timed240
LOPR1LMM313VHFleft130 (310)°> 2400ft1.0min timedICAO rules
LOPR1MASGORVHFleft240 (60)°> 3000ft1.0min timedICAO rules
PELO1APFIXleft9 (189)°> 1960ft1.0min timedICAO rules
PELO1BPFFIXleft247 (67)°1.0min timedICAO rules
PELO1CRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
PELO1HRDFIXright191 (11)°1.0min timed240
PELO1LMM313VHFleft130 (310)°> 2400ft1.0min timedICAO rules
PELO1MASGORVHFleft240 (60)°> 3000ft1.0min timedICAO rules
ULME1APFIXleft9 (189)°> 1960ft1.0min timedICAO rules
ULME1BPFFIXleft247 (67)°1.0min timedICAO rules
ULME1CRVHFleft240 (60)°> 3000ft1.0min timedICAO rules
ULME1HRDFIXright191 (11)°1.0min timed240
ULME1LMM313VHFleft130 (310)°> 2400ft1.0min timedICAO rules
ULME1MASGORVHFleft240 (60)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
