Airports for X-Plane

Barnaul

Airport details

CountryRussian Federation
StateAltai Krai
RegionUN
AirspaceNovosibirsk Ctr
Municipalityгородской округ Барнаул
Elevation834ft (254m)
TimezoneGMT +7
Coordinates53.36134, 83.55915
Magnetic var
Typeland
Available sinceX-Plane v10.35
ICAO codeUNBB
IATA codeBAX
FAA coden/a

Communication

Barnaul ATIS129.700
Barnaul Tower123.500
Barnaul Ground Control118.800

Approach frequencies

ILS-cat-IIRW24108.718.00mi
2.6° GSRW24108.718.00mi

Runway info

Runway 06 / 24
 length2845m (9334ft)
 bearing76° / 256°
 width50m (164ft)
 surfaceconcrete
 displ threshold348m (1142ft) / 0m (0ft)
 blast zone49m (161ft) / 53m (174ft)

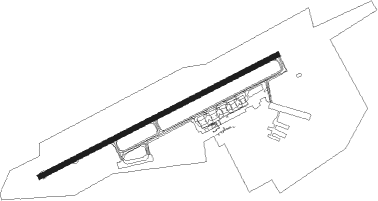

Airport layout


Taxiway locations

 C  D  E  M
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
AMIKHAYLOVKA (BARNAUL) NDB0.854°865
BANBARNAUL VOR/DME0.959°111.80
ARBARNAUL NDB2.269°428
BUBARNAUL NDB3.5260°399

Departure and arrival routes

Transition altitude3133ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW06
 NEPK1C, NEPK1A45mi31°
 RISE1E, RISE1C, RISE1A35mi81°
 INBO1E, INBO1C, INBO1A26mi97°
 MITB1A, MITB1C, MITB1E14mi241°
 AMRA1A, AMRA1C, AMRA1E20mi264°
 ERKO1A, ERKO1C47mi319°
 TUMK1A, TUMK1C, TUMK1E26mi357°
RW24
 NEPK1B, NEPK1D45mi31°
 RISE1D, RISE1F, RISE1B35mi81°
 INBO1B, INBO1F, INBO1D26mi97°
 MITB1D, MITB1B, MITB1F14mi241°
 AMRA1B, AMRA1F, AMRA1D20mi264°
 ERKO1D, ERKO1B47mi319°
 TUMK1B, TUMK1D, TUMK1F26mi357°

STAR starting pointsdistanceinbound heading
ALL
 AMRA1T20.484°
 ERKO1T46.5139°
 TUMK1T26.3177°
 NEPK1T44.9211°
 RISE1T34.5261°
 INBO1T26.3277°
RW06
 AMRA1U, AMRA1P, AMRA1L, AMRA1J, AMRA1G20.484°
 ERKO1G, ERKO1J, ERKO1L, ERKO1P46.5139°
 TUMK1G, TUMK1P, TUMK1J, TUMK1L, TUMK1U26.3177°
 NEPK1L, NEPK1P44.9211°
 RISE1J, RISE1L, RISE1G, RISE1U, RISE1P34.5261°
 INBO1L, INBO1P, INBO1U26.3277°
RW24
 AMRA1V, AMRA1R, AMRA1M, AMRA1K, AMRA1H20.484°
 ERKO1H, ERKO1K, ERKO1M, ERKO1R46.5139°
 TUMK1H, TUMK1K, TUMK1M, TUMK1R, TUMK1V26.3177°
 NEPK1R, NEPK1M, NEPK1K, NEPK1H44.9211°
 RISE1H, RISE1K, RISE1M, RISE1R, RISE1V34.5261°
 INBO1K, INBO1M, INBO1R, INBO1V, INBO2H, INBO2S26.3277°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06BB002 (94°)BB002 3140ft
BB003 (6mi, 145°) 2800ft
 RNAVBB003 2800ft
BB004 (5mi, 76°) 2470ft
BB005 (3mi, 76°) 1500ft
UNBB (3mi, 80°) 874ft
(5175mi, 237°) 2140ft
BB002 (5162mi, 57°) 3140ft
RW24BB008 (231°)BB008 3140ft
BB009 (6mi, 145°) 2790ft
RW24BB010 (273°)BB010 3140ft
BB009 (6mi, 325°) 2790ft
 RNAVBB009 2790ft
BB011 (5mi, 256°) 2470ft
UNBB (6mi, 254°) 874ft
(5175mi, 237°) 2140ft
BB008 (5183mi, 57°) 3140ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMRA1MBANNDBright59 (239)°5000ft - 19000ft1.0min timedICAO rules
AMRA1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
AMRA1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
AMRA1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
AMRA1UBB003VHFleft240 (60)°> 2800ft1.0min timedICAO rules
ERKO1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
ERKO1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
ERKO1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
INBO1LBANNDBright59 (239)°5000ft - 19000ft1.0min timedICAO rules
INBO1MBANNDBright59 (239)°5000ft - 19000ft1.0min timedICAO rules
INBO1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
INBO1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
INBO1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
NEPK1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
NEPK1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
NEPK1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
RISE1LBANNDBright59 (239)°5000ft - 19000ft1.0min timedICAO rules
RISE1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
RISE1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
RISE1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
RISE1VBB009VHFright60 (240)°> 2790ft1.0min timedICAO rules
TUMK1PBUFIXleft239 (59)°5000ft - 19000ft1.0min timedICAO rules
TUMK1RARFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
TUMK1TAFIXright59 (239)°5000ft - 19000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
