Airports for X-Plane

Tomsk - Bogashevo

Airport details

CountryRussian Federation
StateTomsk Oblast
RegionUN
AirspaceNovosibirsk Ctr
MunicipalityМирненское сельское поселение
Elevation598ft (182m)
TimezoneGMT +7
Coordinates56.39425, 85.21918
Magnetic var
Typeland
Available sinceX-Plane v10.50
ICAO codeUNTT
IATA codeTOF
FAA coden/a

Communication

Bogashevo ATIS127.800
Bogashevo Ground Control118.800
Bogashevo Tower127.300
Bogashevo Approach_TRANSIT131.875
Bogashevo Departure127.300

Approach frequencies

ILS-cat-IRW21110.318.00mi
2.9° GSRW21110.318.00mi

Runway info

Runway 03 / 21
 length2500m (8202ft)
 bearing50° / 230°
 width50m (164ft)
 surfaceconcrete

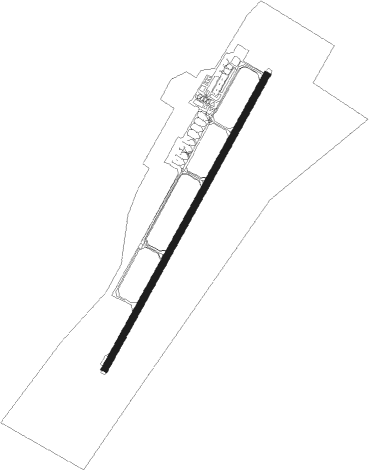

Airport layout


Taxiway locations

 A  B  C  D  M
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
TBOGASHEVO (TOMSK) NDB0.561°770
IBOGASHEVO (TOMSK) NDB2226°770
TIBOGASHEVO (TOMSK) NDB2.253°380
IOBOGASHEVO (TOMSK) NDB3.6228°380
SPMALINOVKA NDB18.220°535

Departure and arrival routes

Transition altitude2894ft
SID end pointsdistanceoutbound heading
RW03
 SUKOL1, SUKO1A30mi72°
 BINBA1, BINB1A26mi91°
 NALE1A, NALED129mi142°
 SONUL1, SONU1A54mi257°
RW21
 SUKO1B, SUKOL330mi72°
 BINBA3, BINB1B26mi91°
 NALE1B, NALED329mi142°
 SONU1B, SONUL354mi257°

STAR starting pointsdistanceinbound heading
RW03
 GIPA1P59.4114°
 SUKO2B, SUKO2A30.1252°
 BINB2A, BINB2B25.9271°
 NALE2B, NALE2A28.8322°
RW21
 GIPA1M59.4114°
 POGU1M47.0147°
 PITE1M41.9209°
 SUKO4B, SUKO4A30.1252°
 BINB4B, BINB4A, BINB1M25.9271°
 NALE4B, NALE4A28.8322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03TT006 (49°)TT006
TT004 (6mi, 50°) 2570ft
RW03TT010 (7°)TT010
TT004 (6mi, 290°) 2570ft
 RNAVTT004 2570ft
TT002 (5mi, 50°) 1910ft
UNTT (6mi, 48°) 646ft
TT012 (3mi, 53°)
TT014 (9mi, 168°)
TT010 (6mi, 231°) 2570ft
TT010 (turn)
RW21SP (200°)SP
TT005 (10mi, 159°) 2530ft
RW21TT009 (255°)TT009
TT005 (6mi, 290°) 2530ft
RW21TT011 (186°)TT011
TT005 (6mi, 110°) 2530ft
RW21TT021 (231°)TT021
TT005 (8mi, 230°) 2530ft
 RNAVTT005 2530ft
TT003 (5mi, 230°) 2200ft
UNTT (5mi, 231°) 601ft
TT015 (4mi, 228°)
TT017 (8mi, 85°)
TT009 (9mi, 49°) 2530ft
TT009 (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BINB1MTT009VHFright115 (295)°5000ft - 13000ft1.0min timed215
BINB1PTT010VHFleft115 (295)°5000ft - 13000ft1.0min timed250
BINB2AIOFIXright205 (25)°< 1910ft1.0min timedICAO rules
BINB4ATIFIXleft25 (205)°< 2200ft1.0min timedICAO rules
NALE1MTT009VHFright115 (295)°5000ft - 13000ft1.0min timed215
NALE1PTT010VHFleft115 (295)°5000ft - 13000ft1.0min timed250
NALE2AIOFIXright205 (25)°< 1910ft1.0min timedICAO rules
NALE4ATIFIXleft25 (205)°< 2200ft1.0min timedICAO rules
NN2AIOFIXright205 (25)°< 1910ft1.0min timedICAO rules
NN4ATIFIXleft25 (205)°< 2200ft1.0min timedICAO rules
SP1PSPFIXleft2 (182)°1.0min timedICAO rules
SP1PTT010VHFleft115 (295)°5000ft - 13000ft1.0min timed250
SP2AIOFIXright205 (25)°< 1910ft1.0min timedICAO rules
SP2ASPFIXleft2 (182)°1.0min timedICAO rules
SP4ASPFIXleft2 (182)°1.0min timedICAO rules
SP4ATIFIXleft25 (205)°< 2200ft1.0min timedICAO rules
SUKO1MTT009VHFright115 (295)°5000ft - 13000ft1.0min timed215
SUKO1PTT010VHFleft115 (295)°5000ft - 13000ft1.0min timed250
SUKO2AIOFIXright205 (25)°< 1910ft1.0min timedICAO rules
SUKO4ATIFIXleft25 (205)°< 2200ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
