Airports for X-Plane

Anapa - Anapa Intl

Airport details

CountryRussian Federation
StateKrasnodar Krai
RegionUR
AirspaceRostov-na-donu Ctr
MunicipalityAnapa Urban Okrug
Elevation170ft (52m)
TimezoneGMT +3
Coordinates45.00351, 37.34585
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeURKA
IATA codeAAQ
FAA coden/a

Communication

Anapa Intl ANAPA KRUG119.800
Anapa Intl ANAPA Approach118.700

Approach frequencies

ILS-cat-IRW04109.118.00mi
ILS-cat-IRW22110.918.00mi
3° GSRW04109.118.00mi
3° GSRW22110.918.00mi
Nearby Points of Interest:
Russian Gates in Anapa
-
Thermal Power Plant, Novorossiysk

Runway info

Runway 04 / 22
 length2487m (8159ft)
 bearing52° / 232°
 width42m (138ft)
 surfaceconcrete
 blast zone48m (157ft) / 50m (164ft)

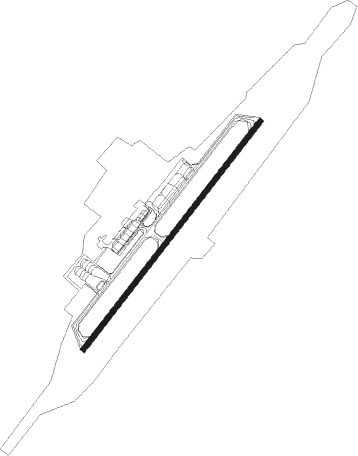

Airport layout


Taxiway locations

 A  B  C  M
Parking locations

 G1  G2  G3  G4  G5  G6  M1

Nearby beacons

codeidentifierdistbearingfrequency
NVITYAZEVO (ANAPA) NDB1.2228°780
PVITYAZEVO (ANAPA) NDB1.356°780
APANAPA NDB2.654°480
ANANAPA NDB2.7230°480
GNGELENDZHIK NDB38.3123°
GNVGELENDZHIK VOR/DME38.4123°114.30

Departure and arrival routes

Transition altitude3786ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW04
 SORU1C, SORU1E23mi0°
 RUDO1E, RUDO1C33mi47°
 AGID1E, AGID1C23mi89°
 TUNO1Y, TUNO1E, TUNO1C17mi170°
 NALU1C, NALU1E, NALU1Y32mi174°
 DIBA1C, DIBA1E, DIBA1Y26mi191°
 GAMA1Z, GAMA1E, GAMA1C32mi270°
 PALE1Z, PALE1E, PALE1C35mi281°
 ARNA1C, ARNA1E, ARNA1Z36mi296°
 TIBE1E, TIBE1C23mi328°
RW22
 SORU1F, SORU1D23mi0°
 RUDO1F, RUDO1D33mi47°
 AGID1D, AGID1F23mi89°
 TUNO1D, TUNO1F17mi170°
 NALU1D, NALU1F32mi174°
 DIBA1D, DIBA1F26mi191°
 GAMA1F, GAMA1D32mi270°
 PALE1F, PALE1D35mi281°
 ARNA1D, ARNA1F36mi296°
 TIBE1D, TIBE1F23mi328°

STAR starting pointsdistanceinbound heading
RW04
 DIBA1A, DIBA1H, DIBA1G26.111°
 GAMA1H, GAMA1G, GAMA1A32.090°
 PALE1H, PALE1G, PALE1A35.1101°
 ARNA1H, ARNA1G, ARNA1A36.1116°
 TIBE1H, TIBE1A, TIBE1G22.6148°
 SORU1A, SORU1G, SORU1H22.7180°
 RUDO1A, RUDO1H, RUDO1G32.6227°
 AGID1A, AGID1H, AGID1G22.6269°
 TUNO1H, TUNO1G, TUNO1A17.3350°
 NALU1G, NALU1A, NALU1H31.5354°
RW22
 DIBA1J, DIBA1B, DIBA1K26.111°
 GAMA1B, GAMA1K, GAMA1J32.090°
 PALE1K, PALE1B, PALE1J35.1101°
 ARNA1J, ARNA1B, ARNA1K36.1116°
 TIBE1B, TIBE1J, TIBE1K22.6148°
 SORU1K, SORU1J, SORU1B22.7180°
 RUDO1B, RUDO1J, RUDO1K32.6227°
 AGID1K, AGID1J, AGID1B22.6269°
 TUNO1K, TUNO1J, TUNO1B17.3350°
 NALU1B, NALU1J, NALU1K31.5354°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04KA008 (20°)KA008 4000ft
KA007 (6mi, 303°) 2500ft
RW04KA009 (75°)KA009 4000ft
KA007 (6mi, 123°) 2500ft
 RNAVKA007 2500ft
KA006 (6mi, 52°) 1800ft
URKA (6mi, 51°) 191ft
(3351mi, 220°) 1200ft
KA013 (3350mi, 40°)
KA009 (11mi, 232°) 4000ft
RW22KA003 (201°)KA003 4000ft
KA002 (6mi, 123°) 2500ft
RW22KA004 (233°)KA004 4000ft
KA002 (6mi, 232°) 2500ft
RW22KA005 (256°)KA005 4000ft
KA002 (6mi, 303°) 2500ft
 RNAVKA002 2500ft
KA001 (6mi, 232°) 1800ft
25THR (2mi, 232°) 1020ft
URKA (3mi, 234°) 228ft
(3351mi, 220°) 580ft
KA014 (3347mi, 40°)
KA015 (9mi, 1°)
KA003 (9mi, 52°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGID1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
AGID1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
AGID1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
AGID1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
AGID1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
ARNA1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
ARNA1BTIBETVHFright296 (116)°1500ft - 9000ft1.0min timedICAO rules
ARNA1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
ARNA1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
ARNA1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
ARNA1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
DIBA1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
DIBA1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
DIBA1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
DIBA1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
GAMA1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
GAMA1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
GAMA1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
GAMA1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
GAMA1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
NALU1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
NALU1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
NALU1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
NALU1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
PALE1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
PALE1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
PALE1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
PALE1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
PALE1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
RUDO1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
RUDO1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
RUDO1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
RUDO1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
RUDO1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
SORU1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
SORU1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
SORU1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
SORU1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
SORU1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
TIBE1AKA009VHFright305 (125)°1500ft - 9000ft1.0min timedICAO rules
TIBE1BTIBETVHFright296 (116)°1500ft - 9000ft1.0min timedICAO rules
TIBE1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
TIBE1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
TIBE1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
TIBE1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
TUNO1GANFIXleft215 (35)°2500ft - 10000ft1.0min timedICAO rules
TUNO1HNVHFright223 (43)°19000ft - 29000ft1.5min timed264
TUNO1JAPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
TUNO1KPFIXright35 (215)°2600ft - 10000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
