Airports for X-Plane

Chelyabinsk - Chelyabinks Shagol Afb

Airport details

CountryRussian Federation
StateChelyabinsk Oblast
RegionUS
AirspaceYekaterinburg Ctr
MunicipalityChelyabinsk
Elevation826ft (252m)
TimezoneGMT +5
Coordinates55.26080, 61.29843
Magnetic var
Typeland
Available sinceX-Plane v11.51r1
ICAO codeUSCG
IATA coden/a
FAA coden/a

Communication

Chelyabinks Shagol AFB Start124.000
Chelyabinks Shagol AFB Approach128.500
Nearby Points of Interest:
Yaroslavskogo Square
-
Vosstavshikh Square

Runway info

Runway 12 / 30
 length2495m (8186ft)
 bearing118° / 298°
 width41m (135ft)
 surfaceconcrete
 blast zone20m (66ft) / 50m (164ft)

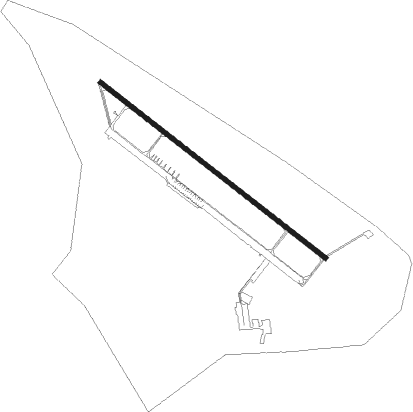

Airport layout


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LBBALANDINO (CHELYABINSK) NDB5.365°452
LBALANDINO (CHELYABINSK) NDB6.473°392
LBNCHELYABINSK VOR/DME7.978°113.30
KBALANDINO (CHELYABINSK) NDB8.781°367
KSBALANDINO (CHELYABINSK) NDB1083°412
