Airports for X-Plane

Nizhnevartovsk

Airport details

CountryRussian Federation
StateKhanty-Mansiysk Autonomous Okrug – Ugra
RegionUS
AirspaceTyumen Ctr
MunicipalityNizhnevartovsk
Elevation175ft (53m)
TimezoneGMT +5
Coordinates60.94861, 76.48055
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSNN
IATA codeNJC
FAA coden/a

Communication

Nizhnevartovsk ATIS126.600
Nizhnevartovsk TAXIING121.700
Nizhnevartovsk Transit Operations118.900
Nizhnevartovsk Tower118.100
Nizhnevartovsk Approach134.300
Nizhnevartovsk Approach124.700

Approach frequencies

ILS-cat-IIRW03110.518.00mi
ILS-cat-IRW21111.918.00mi
3° GSRW21111.918.00mi
2.6° GSRW03110.518.00mi

Runway info

Runway 04 / 22
 length701m (2300ft)
 bearing62° / 242°
 width50m (164ft)
 surfacegrass
Runway 03 / 21
 length3191m (10469ft)
 bearing62° / 242°
 width60m (197ft)
 surfaceasphalt
 blast zone75m (246ft) / 74m (243ft)

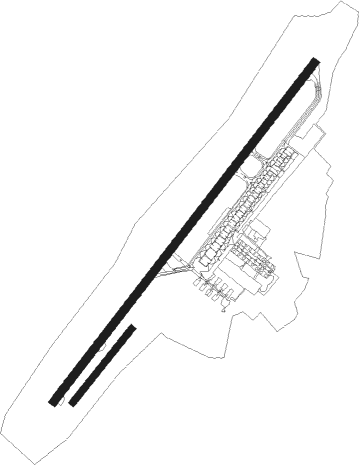

Airport layout


Taxiway locations

 K  M
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 3  31  32  33  34  35  36  37
 4  5  6  7  8  9  GA  Heli

Nearby beacons

codeidentifierdistbearingfrequency
NJCNIZHNEVARTOVSK VOR/DME0.4250°112.30
JNIZHNEVARTOVSK NDB1.3242°915
NNIZHNEVARTOVSK NDB1.562°915
JHNIZHNEVARTOVSK NDB2.9242°450
NZNIZHNEVARTOVSK NDB362°450

Departure and arrival routes

Transition altitude2802ft
SID end pointsdistanceoutbound heading
RW03
 TURM1J, TURM1L, TURM1N27mi15°
 NIMO1N, NIMO1L, NIMO1J27mi34°
 ARNI1L, ARNI1N, ARNI1J26mi82°
 OKRI1J, OKRI1L, OKRI1N27mi87°
 PARO1J, PARO1L, PARO1N18mi102°
 ASBU1L, ASBU1J, ASBU1N27mi180°
 GIRN1N, GIRN1L, GIRN1J27mi212°
 URES1N, URES1L, URES1J27mi233°
 DERU1N, DERU1J, DERU1L27mi253°
 KUPA1N, KUPA1L, KUPA1J27mi267°
 SUGU1J, SUGU1N, SUGU1L27mi271°
 TETS1J, TETS1N, TETS1L27mi284°
RW21
 TURM1K, TURM1M, TURM1P27mi15°
 NIMO1P, NIMO1K, NIMO1M27mi34°
 ARNI1P, ARNI1M, ARNI1K26mi82°
 OKRI1K, OKRI1P, OKRI1M27mi87°
 PARO1K, PARO1M, PARO1P18mi102°
 ASBU1P, ASBU1M, ASBU1K27mi180°
 GIRN1K, GIRN1P, GIRN1M27mi212°
 URES1K, URES1M, URES1P27mi233°
 DERU1K, DERU1M, DERU1P27mi253°
 KUPA1K, KUPA1M, KUPA1P27mi267°
 SUGU1P, SUGU1M, SUGU1K27mi271°
 TETS1M, TETS1K, TETS1P27mi284°

STAR starting pointsdistanceinbound heading
RW03
 ASBU1T, ASBU1G, ASBU1S27.20°
 GIRN1T, GIRN1G, GIRN1S27.332°
 DERU1G, DERU1S, DERU1T27.373°
 TETS1G, TETS1T, TETS1S27.1104°
 TURM1G, TURM1T, TURM1S26.6195°
 NIMO1G, NIMO1T, NIMO1S26.5214°
 ARNI1S, ARNI1G, ARNI1T26.4262°
 OKRI1T, OKRI1S, OKRI1G26.5267°
 PARO1T, PARO1G17.5282°
RW21
 ASBU1R, ASBU1Q, ASBU1H27.20°
 GIRN1Q, GIRN1H, GIRN1R27.332°
 DERU1R, DERU1Q, DERU1H27.373°
 TETS1H, TETS1Q, TETS1R27.1104°
 TURM1H, TURM1Q, TURM1R26.6195°
 NIMO1R, NIMO1Q, NIMO1H26.5214°
 ARNI1H, ARNI1Q, ARNI1R26.4262°
 OKRI1R, OKRI1Q, OKRI1H26.5267°
 PARO1H, PARO1R17.5282°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03NN144 (28°)NN144 2800ft
NN143 (6mi, 294°) 1800ft
RW03NN145 (80°)NN145 2800ft
NN143 (6mi, 114°) 1800ft
 RNAVNN143 1800ft
NN142 (5mi, 62°) 1800ft
USNN (6mi, 62°) 193ft
NN147 (4mi, 62°)
NN146 (12mi, 261°)
NN145 (5mi, 242°) 2800ft
RW21NN232 (206°)NN232 2800ft
NN234 (6mi, 114°) 1800ft
RW21NN233 (261°)NN233 2800ft
NN234 (6mi, 294°) 1800ft
 RNAVNN234 1800ft
NN235 (5mi, 242°) 1800ft
USNN (6mi, 242°) 228ft
NN236 (4mi, 242°)
NN237 (12mi, 22°)
NN232 (5mi, 62°) 2800ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARNI1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
ARNI1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
ARNI1SNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
ASBU1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
ASBU1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
ASBU1QNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
DERU1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
DERU1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
DERU1QNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
DERU1RNN232VHFleft296 (116)°> 1600ft1.0min timed185
GIRN1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
GIRN1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
GIRN1QNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
NIMO1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
NIMO1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
NIMO1RNN232VHFleft296 (116)°> 1600ft1.0min timed185
NIMO1SNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
NIMO1TNN145VHFleft296 (116)°> 1500ft1.0min timed185
OKRI1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
OKRI1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
OKRI1SNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
PARO1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
PARO1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
TETS1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
TETS1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
TETS1RNN232VHFleft296 (116)°> 1600ft1.0min timed185
TETS1TNN145VHFleft296 (116)°> 1500ft1.0min timed185
TURM1GJHFIXright26 (206)°> 1800ft1.0min timedICAO rules
TURM1HNZFIXleft206 (26)°> 1800ft1.0min timedICAO rules
TURM1RNN232VHFleft296 (116)°> 1600ft1.0min timed185
TURM1SNJCNDBleft206 (26)°> 1800ft1.0min timedICAO rules
TURM1TNN145VHFleft296 (116)°> 1500ft1.0min timed185
*) magnetic outbound (inbound) holding course
