Airports for X-Plane

Kurgan

Airport details

CountryRussian Federation
StateKurgan Oblast
RegionUS
AirspaceYekaterinburg Ctr
MunicipalityKurgan
Elevation238ft (73m)
TimezoneGMT +5
Coordinates55.47500, 65.41528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUSUU
IATA codeKRO
FAA coden/a

Communication

Kurgan Tower134.300

Approach frequencies

ILS-cat-IRW02110.918.00mi
ILS-cat-IRW20109.918.00mi
3° GSRW02110.918.00mi
2.7° GSRW20109.918.00mi
Nearby Points of Interest:
Statue of Krasin in Kurgan

Runway info

Runway 02 / 20
 length2597m (8520ft)
 bearing46° / 226°
 width42m (138ft)
 surfaceasphalt
 blast zone50m (164ft) / 50m (164ft)

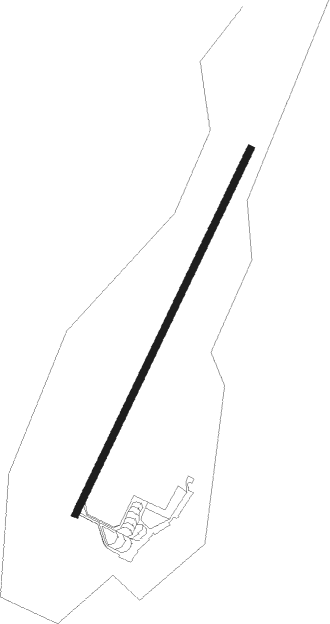

Airport layout


Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
KUDME-ILS0.2275°111.50
RKURGAN NDB1.3226°353
UKURGAN NDB1.345°353
RDKURGAN NDB2.8226°708
UNKURGAN NDB2.945°708

Departure and arrival routes

Transition altitude2864ft
SID end pointsdistanceoutbound heading
RW02
 MILS1J, MILS1G32mi79°
 DONU1J, DONU1G33mi225°
 BEKA1J, BEKA1G32mi270°
 DIZN1G, DIZN1J32mi275°
 BAGE1J, BAGE1G32mi357°
RW20
 MILS1H, MILS1K32mi79°
 DONU1K, DONU1H33mi225°
 BEKA1H, BEKA1K, BEKA1X32mi270°
 DIZN1K, DIZN1H, DIZN1X32mi275°
 BAGE1K, BAGE1H32mi357°

STAR starting pointsdistanceinbound heading
RW02
 DONU1F, DONU1D33.145°
 DIZN1D, DIZN1F, DIZN1W32.295°
 TABE1W, TABE1F32.3108°
 BAGE1D, BAGE1F32.3177°
 ARLA1F32.2268°
RW20
 DONU1E, DONU1B33.145°
 DIZN1B, DIZN1E32.295°
 TABE1E32.3108°
 BAGE1E, BAGE1B32.3177°
 ARLA1E32.2268°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02UU003 (3°)UU003 3000ft
UU002 (6mi, 288°) 2000ft
RW02UU023 (71°)UU023 3000ft
UU002 (6mi, 108°) 2000ft
 RNAVUU002 2000ft
UU001 (5mi, 45°) 2000ft
USUU (6mi, 46°) 286ft
UU004 (5mi, 46°)
UU005 (6mi, 108°)
UU003 (16mi, 226°) 3000ft
RW20UU008 (181°)UU008 3000ft
UU007 (6mi, 108°) 1700ft
RW20UU009 (252°)UU009 3000ft
UU007 (6mi, 288°) 1700ft
 RNAVUU007 1700ft
UU006 (5mi, 226°) 1700ft
USUU (6mi, 226°) 283ft
UU010 (6mi, 226°)
UU011 (13mi, 70°)
UU009 (5mi, 46°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARLA1BUVHFright33 (213)°1.0min timedICAO rules
ARLA1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
ARLA1EUU009VHFright106 (286)°2700ft - 12000ft1.0min timedICAO rules
ARLA1FUU003VHFleft16 (196)°2700ft - 9000ft1.0min timed210
BAGE1BUVHFright33 (213)°1.0min timedICAO rules
BAGE1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
BAGE1FUU003VHFleft16 (196)°2700ft - 9000ft1.0min timed210
DIZN1BUVHFright33 (213)°1.0min timedICAO rules
DIZN1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
DIZN1FUU003VHFleft16 (196)°2700ft - 9000ft1.0min timed210
DONU1BUVHFright33 (213)°1.0min timedICAO rules
DONU1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
DONU1EUU009VHFright106 (286)°2700ft - 12000ft1.0min timedICAO rules
DONU1FUU003VHFleft16 (196)°2700ft - 9000ft1.0min timed210
TABE1BUVHFright33 (213)°1.0min timedICAO rules
TABE1DRNDBright31 (211)°4350ft - 6000ft1.0min timedICAO rules
TABE1FUU003VHFleft16 (196)°2700ft - 9000ft1.0min timed210
*) magnetic outbound (inbound) holding course
