Airports for X-Plane

Voronezh - Voronezh/chertovitskoye Intl

Airport details

CountryRussian Federation
StateVoronezh Oblast
RegionUU
AirspaceMoscow Ctr
MunicipalityАйдаровское сельское поселение
Elevation515ft (157m)
TimezoneGMT +3
Coordinates51.81500, 39.22972
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUOO
IATA codeVOZ
FAA coden/a

Communication

Voronezh/Chertovitskoye Intl VORONEZH TAXIING121.800
Voronezh/Chertovitskoye Intl VORONEZH Tower118.300
Voronezh/Chertovitskoye Intl VORONEZH Approach124.000
Voronezh/Chertovitskoye Intl VORONEZH KRUG119.200
Voronezh/Chertovitskoye Intl VORONEZH Approach125.900

Approach frequencies

ILS-cat-IRW30111.918.00mi
ILS-cat-IRW12110.518.00mi
3° GSRW30111.918.00mi
3° GSRW12110.518.00mi

Runway info

Runway 01 / 19
 length562m (1844ft)
 bearing15° / 195°
 width80m (263ft)
 surfacegrass
Runway 03 / 21
 length411m (1348ft)
 bearing50° / 230°
 width60m (197ft)
 surfacegrass
Runway 12 / 30
 length2302m (7552ft)
 bearing118° / 298°
 width45m (148ft)
 surfaceconcrete

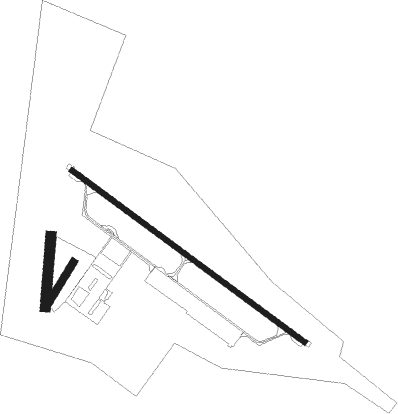

Airport layout


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
ACHERTOVITSKOYE (VORONEZH) NDB1118°595
WCHERTOVITSKOYE (VORONEZH) NDB1.1298°595
WRVORONEZH NDB2.6298°289
APVORONEZH NDB3.5118°289
ZFPRIDACHA (VORONEZH) NDB7.4142°495
ZPRIDACHA (VORONEZH) NDB8.9163°250
PEDME36.196°117.20
PTPETROVSKOYE NDB36.196°475
TSZADONSK NDB36.1333°360
TETERBUNY NDB40.9289°527
ILIPETSK NDB53.620°400
DLIPETSK NDB55.418°400

Departure and arrival routes

Transition altitude2484ft
SID end pointsdistanceoutbound heading
RW12
 PILO1G, PILO1E, PILO1A29mi97°
 INKI1G, INKI1E, INKI1A27mi289°
 OKLO1A, OKLO1E, OKLO1G23mi312°
RW30
 PILO1F, PILO1B, PILO1H29mi97°
 INKI1H, INKI1B, INKI1F27mi289°
 OKLO1B, OKLO1F, OKLO1H23mi312°

STAR starting pointsdistanceinbound heading
RW12
 INKI1M, INKI1P27.2109°
 OKLO1M, OKLO1P23.0132°
 RONU1M, RONU1P18.3178°
 IRLI1M, IRLI1P26.7270°
RW30
 INKI1Q, INKI1N27.2109°
 OKLO1N, OKLO1Q23.0132°
 RONU1Q, RONU1N18.3178°
 IRLI1Q, IRLI1N26.7270°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12OO103 (142°)OO103 3200ft
OO102 (6mi, 211°) 1900ft
 RNAVOO102 1900ft
OO101 (6mi, 118°) 1900ft
UUOO (5mi, 118°) 559ft
OO106 (4mi, 118°)
OO104 (12mi, 329°) 3200ft
OO103 (6mi, 298°) 3200ft
RW30OO303 (278°)OO303 3200ft
OO302 (6mi, 251°) 1800ft
 RNAVOO302 1800ft
OO301 (4mi, 298°) 1800ft
OO307 (3mi, 298°) 711ft
OO306 (6mi, 298°)
OO304 (11mi, 96°) 3200ft
OO303 (6mi, 118°) 3200ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
INKI1MWFIXleft1 (181)°5000ft - 53000ft1.0min timedICAO rules
INKI1NAVHFleft220 (40)°5000ft - 14000ft1.0min timed229
INKI1POO102VHFleft301 (121)°2000ft - 9000ft1.0min timed210
INKI1QOO303VHFright51 (231)°2300ft - 9000ft1.0min timed210
IRLI1MWFIXleft1 (181)°5000ft - 53000ft1.0min timedICAO rules
IRLI1NAVHFleft220 (40)°5000ft - 14000ft1.0min timed229
IRLI1QOO303VHFright51 (231)°2300ft - 9000ft1.0min timed210
OKLO1MWFIXleft1 (181)°5000ft - 53000ft1.0min timedICAO rules
OKLO1NAVHFleft220 (40)°5000ft - 14000ft1.0min timed229
OKLO1POO102VHFleft301 (121)°2000ft - 9000ft1.0min timed210
OKLO1QOO303VHFright51 (231)°2300ft - 9000ft1.0min timed210
RONU1MWFIXleft1 (181)°5000ft - 53000ft1.0min timedICAO rules
RONU1NAVHFleft220 (40)°5000ft - 14000ft1.0min timed229
RONU1QOO303VHFright51 (231)°2300ft - 9000ft1.0min timed210
*) magnetic outbound (inbound) holding course
