Airports for X-Plane

Ukhta

Airport details

CountryRussian Federation
StateKomi Republic
RegionUU
AirspaceSyktyvkar Ctr
MunicipalityUkhta
Elevation480ft (146m)
TimezoneGMT +3
Coordinates63.56740, 53.80954
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUYH
IATA codeUCT
FAA coden/a

Communication

Ukhta AWOC127.400
Ukhta Tower118.100
Ukhta Approach124.200

Approach frequencies

ILS-cat-IRW36109.718.00mi
ILS-cat-IRW18110.118.00mi
3° GSRW36109.718.00mi
3° GSRW18110.118.00mi

Runway info

Runway 18 / 36
 length2645m (8678ft)
 bearing212° / 32°
 width48m (157ft)
 surfaceconcrete

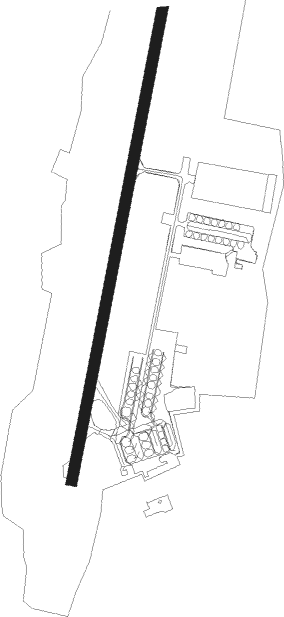

Airport layout


Parking locations

 Military  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
UHTUKHTA VOR/DME0.6246°113.80
DUKHTA NDB1.121°628
BUKHTA NDB1.2221°628
DPUKHTA NDB2.727°304
BFUKHTA NDB2.8216°304

Departure and arrival routes

Transition altitude2451ft
SID end pointsdistanceoutbound heading
RW18
 GIPA2M, GIPA2D, GIPA2C43mi53°
 SUKA2C, SUKA2D, SUKA2M43mi64°
 MARA2M, MARA2D, MARA2C43mi73°
 OSLI2C, OSLI2D, OSLI2M43mi85°
 OKRA2M, OKRA2D, OKRA2C43mi93°
 LAML2M, LAML2D, LAML2C43mi185°
 GAPR2M, GAPR2D, GAPR2C43mi239°
 INRO2M, INRO2D, INRO2C43mi248°
 AGID2D, AGID2M, AGID2C43mi264°
 UTUK2M, UTUK2C, UTUK2D43mi281°
 TIKR2C, TIKR2D, TIKR2M43mi320°
 LIDL2C, LIDL2M, LIDL2D43mi350°
RW36
 GIPA2A, GIPA2Q, GIPA2B43mi53°
 SUKA2Q, SUKA2A, SUKA2B43mi64°
 MARA2B, MARA2Q, MARA2A43mi73°
 OSLI2Q, OSLI2A, OSLI2B43mi85°
 OKRA2Q, OKRA2A, OKRA2B43mi93°
 LAML2A, LAML2Q, LAML2B43mi185°
 GAPR2Q, GAPR2A, GAPR2B43mi239°
 INRO2A, INRO2Q, INRO2B43mi248°
 AGID2Q, AGID2B, AGID2A43mi264°
 UTUK2A, UTUK2B, UTUK2Q43mi281°
 TIKR2A, TIKR2B, TIKR2Q43mi320°
 LIDL2A, LIDL2B, LIDL2Q43mi350°

STAR starting pointsdistanceinbound heading
RW18
 LAML2N43.15°
 GAPR2N43.159°
 RITU2N43.174°
 AGID2N43.184°
 UTUK2N43.1101°
 TIKR2N43.1140°
 LIDL2N43.0170°
 GIPA2N42.9233°
 SUKA2N42.9244°
 MARA2N42.9253°
 OSLI2N42.8265°
 OKRA2N42.9273°
 LALP2N43.0333°
RW36
 LAML2P43.15°
 GAPR2P43.159°
 RITU2P43.174°
 AGID2P43.184°
 UTUK2P43.1101°
 TIKR2P43.1140°
 LIDL2P43.0170°
 GIPA2P42.9233°
 SUKA2P42.9244°
 MARA2P42.9253°
 OSLI2P42.8265°
 OKRA2P42.9273°
 LALP2P43.0333°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18YH005 (149°)YH005 2000ft
YH004 (6mi, 97°) 2000ft
RW18YH006 (246°)YH006 2000ft
YH004 (6mi, 277°) 2000ft
 RNAVYH004 2000ft
YH013 (5mi, 212°) 2000ft
16THR (3mi, 212°) 1000ft
UUYH (2mi, 206°) 480ft
(4490mi, 220°) 1400ft
YH006 (4502mi, 40°) 2000ft
RW36YH016 (66°)YH016 2000ft
YH017 (6mi, 97°) 2000ft
RW36YH018 (331°)YH018 2000ft
YH017 (6mi, 277°) 2000ft
 RNAVYH017 2000ft
YH019 (5mi, 32°) 2000ft
UUYH (5mi, 34°) 524ft
(4490mi, 220°) 1400ft
YH018 (4486mi, 40°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGID2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
AGID2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
AGID2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
GAPR2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
GAPR2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
GAPR2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
GIPA2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
GIPA2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
GIPA2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
GIPA2PYH018VHFleft33 (213)°1800ft - 4000ft1.0min timedICAO rules
LALP2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
LALP2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
LALP2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
LALP2NYH006VHFright134 (314)°1900ft - 4000ft1.0min timedICAO rules
LAML2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
LAML2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
LAML2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
LAML2NYH006VHFright134 (314)°1900ft - 4000ft1.0min timedICAO rules
LIDL2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
LIDL2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
LIDL2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
MARA2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
MARA2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
MARA2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
MARA2PYH018VHFleft33 (213)°1800ft - 4000ft1.0min timedICAO rules
OKRA2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
OKRA2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
OKRA2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
OKRA2NYH006VHFright134 (314)°1900ft - 4000ft1.0min timedICAO rules
OKRA2PYH018VHFleft33 (213)°1800ft - 4000ft1.0min timedICAO rules
OSLI2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
OSLI2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
OSLI2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
OSLI2NYH006VHFright134 (314)°1900ft - 4000ft1.0min timedICAO rules
OSLI2PYH018VHFleft33 (213)°1800ft - 4000ft1.0min timedICAO rules
RITU2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
RITU2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
RITU2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
SUKA2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
SUKA2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
SUKA2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
SUKA2PYH018VHFleft33 (213)°1800ft - 4000ft1.0min timedICAO rules
TIKR2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
TIKR2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
TIKR2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
UTUK2EDPFIXleft355 (175)°> 1900ft1.0min timedICAO rules
UTUK2GUHTNDBleft1 (181)°> 1900ft1.0min timedICAO rules
UTUK2HBFFIXright175 (355)°> 1900ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
