Airports for X-Plane

Usinsk

Airport details

CountryRussian Federation
StateKomi Republic
RegionUU
AirspaceSyktyvkar Ctr
MunicipalityUsinsk Urban Okrug
Elevation262ft (80m)
TimezoneGMT +3
Coordinates66.00634, 57.37024
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUYS
IATA codeUSK
FAA coden/a

Communication

Usinsk AWOC127.900
Usinsk Tower118.200
Usinsk Appproach131.900

Approach frequencies

ILS-cat-IRW13108.718.00mi
3° GSRW13108.718.00mi

Runway info

Runway 13 / 31
 length2499m (8199ft)
 bearing134° / 314°
 width42m (138ft)
 surfaceconcrete

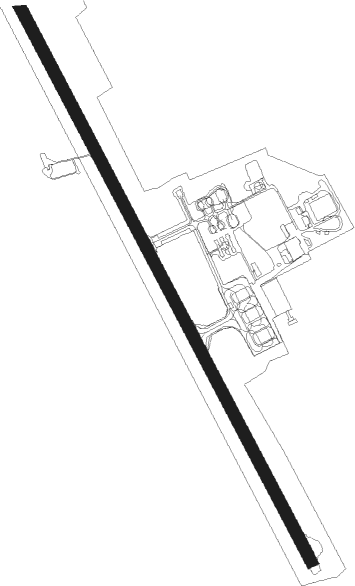

Airport layout


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
SNDME0.2255°113.40
UUSINSK NDB1.2307°749
YUSINSK NDB1.2140°749
ULUSINSK NDB2.7310°370
YTUSINSK NDB2.8136°370

Departure and arrival routes

Transition altitude2230ft
SID end pointsdistanceoutbound heading
RW13
 UNKA1J, UNKA1B, UNKA1A21mi14°
 PINE1J, PINE1A, PINE1B21mi76°
 TIPO1B, TIPO1A, TIPO1J21mi89°
 PIMI1A, PIMI1B, PIMI1J20mi196°
 ODEK1A, ODEK1J, ODEK1B22mi238°
 NILO1J, NILO1B, NILO1A22mi255°
 GIGE1J, GIGE1A, GIGE1B22mi264°
 IDED1A, IDED1B, IDED1J22mi292°
RW31
 UNKA1D, UNKA1C, UNKA1K21mi14°
 PINE1K, PINE1C, PINE1D21mi76°
 TIPO1C, TIPO1D, TIPO1K21mi89°
 PIMI1K, PIMI1D, PIMI1C20mi196°
 ODEK1K, ODEK1D, ODEK1C22mi238°
 NILO1K, NILO1C, NILO1D22mi255°
 GIGE1K, GIGE1D, GIGE1C22mi264°
 IDED1K, IDED1C, IDED1D22mi292°

STAR starting pointsdistanceinbound heading
RW13
 PIMI1P, PIMI1L, PIMI1F, PIMI1E20.116°
 ODEK1L, ODEK1P, ODEK1F, ODEK1E21.658°
 NILO1E, NILO1F, NILO1L, NILO1P21.675°
 GIGE1E, GIGE1F, GIGE1L, GIGE1P21.684°
 IDED1E, IDED1F, IDED1P, IDED1L21.5112°
 UNKA1P, UNKA1F, UNKA1L, UNKA1E21.4194°
 PINE1P, PINE1L, PINE1F, PINE1E21.4256°
 TIPO1F, TIPO1L, TIPO1P, TIPO1E21.4269°
RW31
 PIMI1G, PIMI1H, PIMI1M, PIMI1N20.116°
 ODEK1N, ODEK1M, ODEK1H, ODEK1G21.658°
 NILO1N, NILO1M, NILO1H, NILO1G21.675°
 GIGE1G, GIGE1H, GIGE1M, GIGE1N21.684°
 IDED1G, IDED1H, IDED1M, IDED1N21.5112°
 UNKA1G, UNKA1H, UNKA1M, UNKA1N21.4194°
 PINE1N, PINE1M, PINE1H, PINE1G21.4256°
 TIPO1N, TIPO1M, TIPO1H, TIPO1G21.4269°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13YS001 (106°)YS001
YS004 (6mi, 80°) 2800ft
RW13YS002 (133°)YS002
YS004 (6mi, 133°) 2800ft
RW13YS003 (198°)YS003
YS004 (6mi, 260°) 2800ft
 RNAVYS004 2800ft
YS005 (6mi, 133°) 1500ft
UUYS (4mi, 132°) 304ft
YS006 (3mi, 136°)
YS007 (10mi, 283°)
YS001 (5mi, 313°) 2800ft
RW31YS008 (287°)YS008
YS011 (6mi, 260°) 2800ft
RW31YS009 (314°)YS009
YS011 (6mi, 314°) 2800ft
RW31YS010 (18°)YS010
YS011 (6mi, 80°) 2800ft
 RNAVYS011 2800ft
YS012 (6mi, 314°) 1500ft
UUYS (5mi, 315°) 286ft
YS013 (3mi, 311°)
YS014 (10mi, 212°)
YS010 (5mi, 133°) 2800ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GIGE1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
GIGE1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
GIGE1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
GIGE1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
GIGE1LYS001VHFleft224 (44)°1500ft - 6000ft1.0min timed185
GIGE1MYS010VHFright224 (44)°1200ft - 6000ft1.0min timed185
GIGE1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
GIGE1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
IDED1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
IDED1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
IDED1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
IDED1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
IDED1MYS010VHFright224 (44)°1200ft - 6000ft1.0min timed185
IDED1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
IDED1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
NILO1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
NILO1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
NILO1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
NILO1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
NILO1LYS001VHFleft224 (44)°1500ft - 6000ft1.0min timed185
NILO1MYS010VHFright224 (44)°1200ft - 6000ft1.0min timed185
NILO1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
NILO1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
ODEK1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
ODEK1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
ODEK1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
ODEK1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
ODEK1LYS001VHFleft224 (44)°1500ft - 6000ft1.0min timed185
ODEK1MYS010VHFright224 (44)°1200ft - 6000ft1.0min timed185
ODEK1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
ODEK1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
PIMI1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
PIMI1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
PIMI1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
PIMI1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
PIMI1LYS001VHFleft224 (44)°1500ft - 6000ft1.0min timed185
PIMI1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
PIMI1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
PINE1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
PINE1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
PINE1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
PINE1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
PINE1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
PINE1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
TIPO1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
TIPO1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
TIPO1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
TIPO1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
TIPO1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
TIPO1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
UNKA1EUFIXright275 (95)°> 3500ft1.0min timedICAO rules
UNKA1FULVHFright349 (169)°> 1700ft1.0min timedICAO rules
UNKA1GYTFIXleft134 (314)°1700ft - 6000ft1.0min timedICAO rules
UNKA1HYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
UNKA1NUFIXright275 (95)°> 3500ft1.0min timedICAO rules
UNKA1PYFIXright314 (134)°1700ft - 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
