Naqpur - Dr Ambedkar Intl

Airport details

Country	India
State	Maharashtra
Region	VA
Airspace	Mumbai Ctr
Municipality	Nagpur
Elevation	1033ft (315m)
Timezone	GMT +5.5
Coordinates	21.09194, 79.04833
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VANP
IATA code	NAG
FAA code	n/a

Communication

Dr Ambedkar Intl Ground Control	121.900
Dr Ambedkar Intl Tower	118.100
Dr Ambedkar Intl Approach	122.700
Dr Ambedkar Intl Departure	118.100

Approach frequencies

ILS-cat-I	RW32	110.3	18.00mi
3° GS	RW32	110.3	18.00mi

Runway info

Runway 14 / 32
	length	3155m (10351ft)
	bearing	142° / 322°
	width	46m (150ft)
	surface	asphalt
	blast zone	61m (200ft) / 34m (112ft)

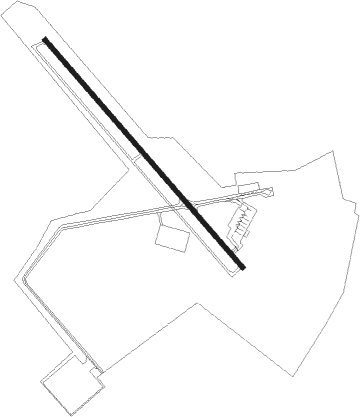

Airport layout

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
NNP	NAGPUR VOR/DME	0.7	143°	112.70
NG	DR. BABASAHEB AMBEDKAR INTL NDB	4.2	142°	217
