Shirdi Intl

Airport details

Country	India
State	Maharashtra
Region
Airspace	Mumbai Ctr
Municipality	Kopargaon
Elevation	1935ft (590m)
Timezone	GMT +5.5
Coordinates	19.68900, 74.37900
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VASD
IATA code	SAG
FAA code	n/a

Communication

Shirdi Intl SMC	121.625
Shirdi Intl Tower	118.450

Runway info

Runway 09 / 27
	length	3198m (10492ft)
	bearing	89° / 269°
	width	45m (148ft)
	surface	asphalt
	displ threshold	698m (2290ft) / 0m (0ft)
	blast zone	58m (190ft) / 59m (194ft)

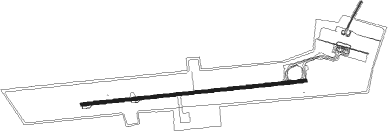

Airport layout

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
SRD	SHIRDI VOR/DME	0.9	92°	112
OJR	OZAR VOR/DME	36.4	314°	115.60
OZR	OZAR NDB	36.5	312°	324

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW09-Y	SD361 (113°)	SD361 5200ft SD364 (7mi, 178°) 4200ft
RW09-Y	SD362 (89°)	SD362 5200ft SD364 (7mi, 89°) 4200ft
RW09-Y	SD363 (64°)	SD363 5200ft SD364 (7mi, 358°) 4200ft
	RNAV	SD364 4200ft SD365 (7mi, 89°) 4000ft VASD (7mi, 89°) 1988ft SD368 (6mi, 89°) SD371 (7mi, 358°) SD361 (21mi, 269°) 5200ft SD361 (turn) 5200ft
RW27-Y	SD372 (243°)	SD372 5200ft SD375 (7mi, 179°) 4000ft
RW27-Y	SD373 (269°)	SD373 5200ft SD375 (7mi, 269°) 4000ft
RW27-Y	SD374 (294°)	SD374 5200ft SD375 (7mi, 359°) 4000ft
RW27-Y	SD375 (269°)	SD375 4000ft
	RNAV	SD375 4000ft SD376 (7mi, 269°) 4000ft VASD (7mi, 269°) 1959ft SD378 (6mi, 269°) SD379 (7mi, 358°) SD372 (20mi, 89°) SD375 (7mi, 179°) 4000ft SD375 (turn) 4000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
