Airports for X-Plane

Patna - Jay Prakash Narayan Intl

Airport details

CountryIndia
StateBihar
RegionVE
AirspaceKolkata Ctr
MunicipalityPatna
Elevation167ft (51m)
TimezoneGMT +5.5
Coordinates25.59490, 85.09307
Magnetic var
Typeland
Available sinceX-Plane v11.51r1
ICAO codeVEPT
IATA codePAT
FAA coden/a

Communication

Jay Prakash Narayan Intl Tower121.100
Jay Prakash Narayan Intl Tower118.300

Approach frequencies

ILS-cat-IRW25110.318.00mi
3.1° GSRW25110.318.00mi
Nearby Points of Interest:
Golghar
-
Lomas Rishi Cave

Runway info

Runway 07 / 25
 length2068m (6785ft)
 bearing70° / 250°
 width45m (148ft)
 surfaceasphalt
 displ threshold397m (1302ft) / 134m (440ft)
 blast zone104m (341ft) / 94m (308ft)

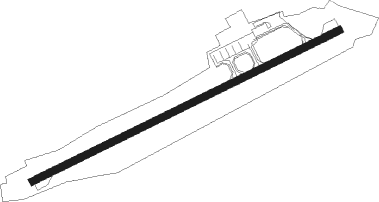

Airport layout


Parking locations

 G2  G4  G5

Nearby beacons

codeidentifierdistbearingfrequency
PPTPATNA VOR/DME0.3216°112.10
GGCGAYA VOR/DME51.8190°115

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YDOSLA (97°)DOSLA 3000ft
DOPNA (7mi, 157°) 3000ft
RW07-YPASLO (41°)PASLO 3000ft
DOPNA (7mi, 337°) 3000ft
RW07-YRIPKA (70°)RIPKA 3000ft
DOPNA (7mi, 70°) 3000ft
 RNAVDOPNA 3000ft
PT507 (5mi, 70°) 2200ft
VEPT (7mi, 69°) 225ft
PT016 (6mi, 71°)
PT017 (7mi, 157°)
PASLO (18mi, 250°)
DOPNA (7mi, 337°) 3000ft
DOPNA (turn) 3000ft
RW25-YKAMTU (251°)KAMTU 3000ft
RUPNA (7mi, 250°) 3000ft
RW25-YMAMDO (221°)MAMDO 3000ft
RUPNA (7mi, 156°) 3000ft
RW25-YSADIP (278°)SADIP 3000ft
RUPNA (7mi, 336°) 3000ft
 RNAVRUPNA 3000ft
PT251 (5mi, 250°) 2200ft
VEPT (7mi, 251°) 225ft
PT007 (7mi, 249°)
PT008 (7mi, 156°)
SADIP (19mi, 70°)
RUPNA (7mi, 336°) 3000ft
RUPNA (turn) 3000ft
